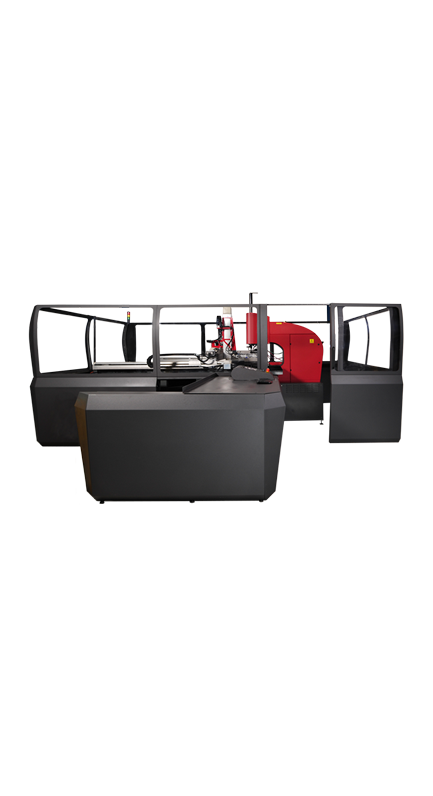

Haeger® 824 OneTouch-4e XYZR
824 ONETOUCH-4E XYZR
Haeger® 824 OneTouch-4e XYZR
All the advantages of the Haeger 824OneTouch-4e machine combined with an easy to program and easy to set up Robotic Sheet Handling System.
Features and Benefits:
- Zero errors in your hardware insertion process
- Easy setup and programming in less than 15 minutes per new setup
- Insertion into sheets up to 24” x 48” (600mm x 1,200mm) from 2 sides
- Unmanned production time of up to 8 hours depending on workpiece sizes
Specifications
- Electrical
- 208 to 575V 3 phase – 50 or 60 Hz
- Footprint Dimensions_ft
- 44 x 66 x 92
- Footprint Dimensions_mm
- 1143 x 864 x 2388mm
- Force Range – note
- Optional 20000 lbs. (90kN) modification available
- Force Range_kN
- 4.5 to 72
- Force Range_lbs
- 1000 to 16000
- Motor_hp
- 5
- Oil Tank Reservoir_gal
- 22
- Oil Tank Reservoir_L
- 83
- Speed
- up to 2000 insertions per hour
- Workpeace Weight_kg
- 13.5
- Workpeace Weight_lb
- 30
- Product Category
- Haeger® 824 OneTouch-4e XYZR
- Fastener Range_in
- 0.256 to 3/8in
- Fastener Range_mm
- M2 to M10mm
- Repeatability
- +/- 2% of force setting
- Brand
- Haeger
- Product Type
- Installation Equipment
- Technology Type
- Installation Technology
- Stroke Length_in
- 0 to 8.5in
- Stroke Length_mm
- 0 to 220mm
- Throat Depth_in
- 24in
- Throat Depth_mm
- 610mm
- Workpiece Range_in
- 24 x 48in
- Workpiece Range_mm
- 600x1200mm
