AEHS8-580-5.7

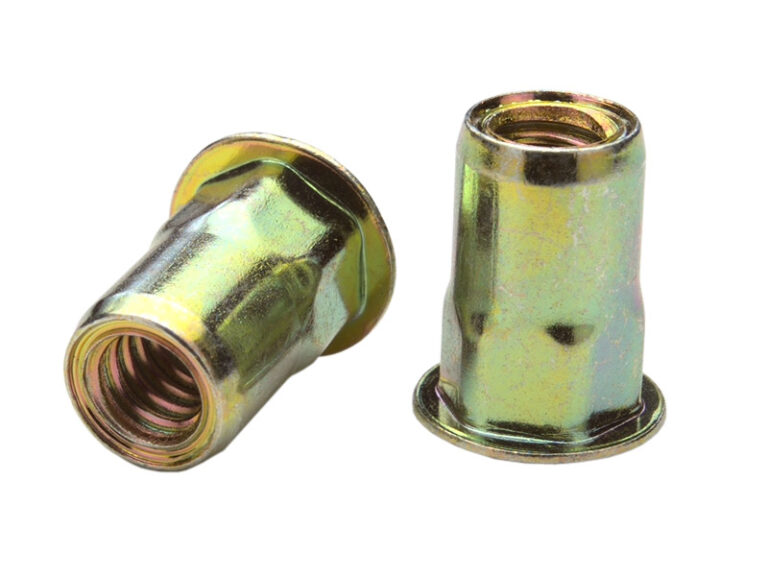

Half-Hex Shank Low-Profile Head Threaded Insert – Open End
AEHS8-580-5.7
Half-Hex Shank Low-Profile Head Threaded Insert – Open End
- Feature a hex body design.
- Improved torque-out resistance.
- Additional thread sizes and grip ranges available.
- Also available in aluminum and brass. Call for availability.
Specifications
- Thread Size
- M5 x 0.8
- Thread Size X Pitch
- M5 x 0.8

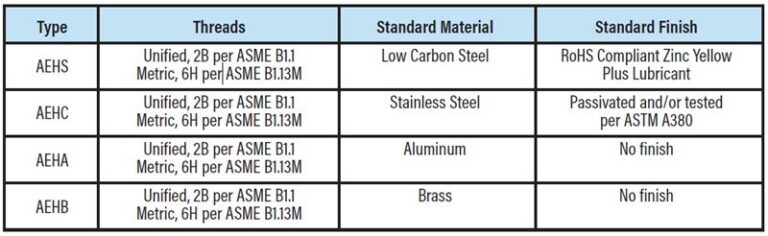

- Thread Specification
- 6H per ASME B1.13M
- Fastener Material
- Carbon Steel
- Standard Material
- Low Carbon Steel
- Standard Finish
- RoHS Compliant Zinc Yellow Plus Lubricant, Zinc plus Yellow Chromate + Lubricant
- Product Category
- Half-Hex Shank Low-Profile Head Threaded Insert – Open End
- CAD Supplier
- PennEngineering® (Atlas®)
- CADPartID
- 103638
- Fastening
- Uninstalled
- ATLAS products Grip Range
- 3.30mm, 3.30mm – 5.70mm, 5.70mm
- Base Panel Material
- Aluminum, Brass, Copper, Hard Steel, Stainless Steel, Steel
- Brand
- ATLAS
- Fastener Characteristics
- Threaded Internal
- Installation Equipment/Method
- Hand Tools
- Product Type
- Blind Threaded Inserts
- Technology Type
- Riveting
- Unit (Metric/Unified)
- Metric

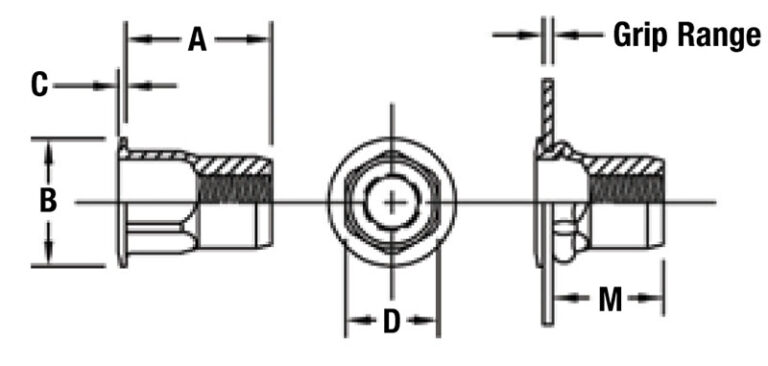

- A ± 0.38_mm
- 13.59mm
- B ± 0.38_mm
- 9.91mm
- C Nom._mm
- 0.68mm

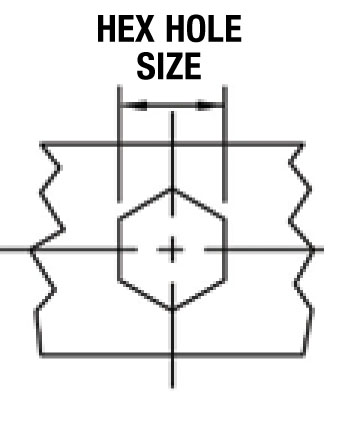

- Hole Size In Sheet + 0.15_mm
- 7.14mm
- øD Max._mm
- 7.10mm
