DSO-440-275ZI
Threaded Standoffs for Close-To-Edge Applications – Types DSO, DSOS
DSO-440-275ZI
Threaded Standoffs for Close-To-Edge Applications – Types DSO, DSOS

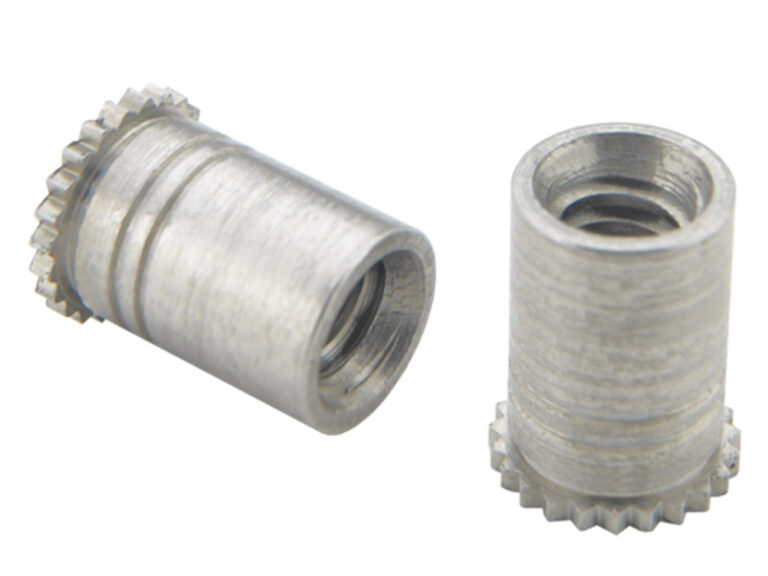

These standoffs, which use the proven self-clinching design, install with a squeeze in properly sized round holes – and become permanently mounted in the thin sheet.
Types DSO and DSOS standoffs are available for close-to-edge applications.
If you require a standoff which we do not offer in this bulletin, please contact us. We will be happy to work with you to satisfy your special need.
Available in other lengths on special order.
规格
- Thread Code
- 440
- 螺纹尺寸
- .112-40 (#4-40), #4-40
- 螺纹规格
- 2B, ANSI B1.1, Internal
- 紧固件材质
- 碳钢, Heat-Treated Carbon Steel
- 标准表面处理
- colorless, SC1 (5µm), Type III, Zinc plated per ASTM B633, Zinc plus Clear Chromate
- For Use in Sheet Hardness
- HRB 80 / HB 150 or less
- Length Code
- 275
- Product Category
- Threaded Standoffs for Close-To-Edge Applications – Types DSO, DSOS
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 103734
- 应用类型
- 航空, 汽车, 汽车电子, 商用车, 数据通信, 新能源汽车充电设备, 电动汽车, 电子, 工业, 制造及钣金, 海洋, 医疗, 可再生能源, 电信
- 底板材质
- 铝, 钢
- 品牌
- PEM
- 紧固件特点
- 靠近边缘, 内螺纹
- 行业
- 汽车电子, 数据通信-电信, 电动汽车, 工业及商业, 医疗
- 安装设备/方法
- C型架自动进料, C型架手动进料
- PEM产品系列
- SO
- 产品类型
- 螺柱
- 技术类型
- 自扣紧
- 单位（公制/英制）
- 公制

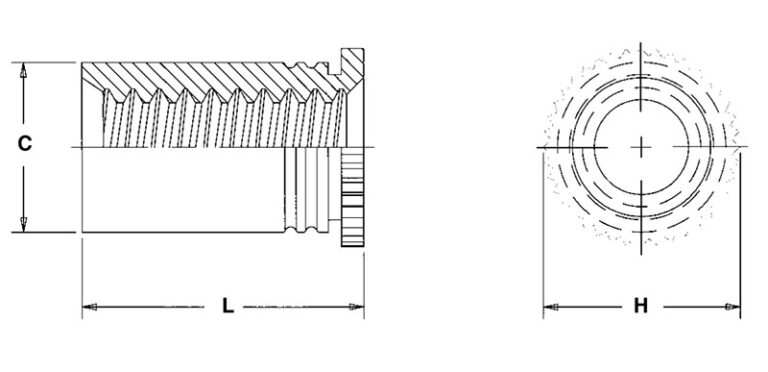

- H Nom._in
- .194in
- Hole Size in Sheet + .003 – .000_in
- .166in
- L + .002 -.005_in
- .275in
- Min. Dist. Hole C/L to Edge_in
- .126in
- C Max._in
- .165in
- Sheet Thickness
- .037 to .250
资源
安装&性能数据
| TYPE | THREAD CODE | MAX. REC. TIGHTENING TORQUE FOR MATING SCREW (in. lbs.) | TEST SHEET MATERIAL | INSTALLATION (lbs.) | PUSHOUT (lbs.) | TORQUE-OUT (in. lbs.) | PULL-THRU (lbs.) |
|---|---|---|---|---|---|---|---|
| DSOS, DSO | 440 | 3.8 | .040" 5052-H34 Aluminium | 700 | 50 | 10 | 320 |
| DSOS, DSO | 440 | 3.8 | .040" Cold-rolled Steel | 1110 | 75 | 10 | 357 |
库存
| 代理商 | 数量 | 联系方式 | 电话 | 地址 | 地点 |
|---|
