H-0616-ZI
Nuts – Types H, HNL
H-0616-ZI
Nuts – Types H, HNL
- Meets torque requirements for IFI 100/107 Grade B (unified) and ANSI B18.16.1M (metric) locknuts.
- Type H is for use in sheet hardness HRB 80 or less on the Rockwell “B” scale.
- Type HNL are for use in sheet hardness HRB 60 or less on the Rockwell “B” scale.
Specifications
- Thread Code
- 0616
- Thread Size
- .375-16 (3/8-16), 3/8-16
- Thread Specification
- 2B, ANSI B1.1
- Fastener Material
- Carbon Steel, Heat-Treated Carbon Steel
- Material Finish
- Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
- For Use in Sheet Hardness
- HRB 80 / HB 150 or less
- Product Category
- Nuts – Types H, HNL
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 102734
- Thread Type
- Non-Locking H
- PEM Product Family
- CL
- Unit (Metric/Unified)
- Unified

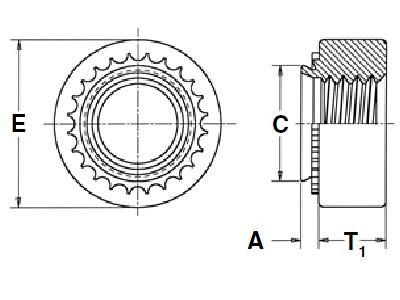

- A Shank Max
- .058in, 0.058in
- E ± .010_in
- .650in
- Hole Size in Sheet + 0.005 – 0.000_in
- .500in
- Min. Dist. Hole C/L to Edge_in
- .480in
- Min. Sheet Thickness_in
- .058in
- C Max._in
- .499in
- T1 ± .005_in
- .300in
Resources
Installation & Performance Data
| TYPE | THREAD CODE | TEST SHEET THICKNESS & SHEET MATERIAL (in.) | INSTALLATION (lbs.) | PUSHOUT (lbs.) | TORQUE-OUT (in. lbs.) | |||
|---|---|---|---|---|---|---|---|---|
| H | 0616 | .090" 5052-H34 Aluminum | 4900 | 380 | 190 | |||
| H | 0616 | .088" Cold-rolled Steel | 7400 | 460 | 240 |
