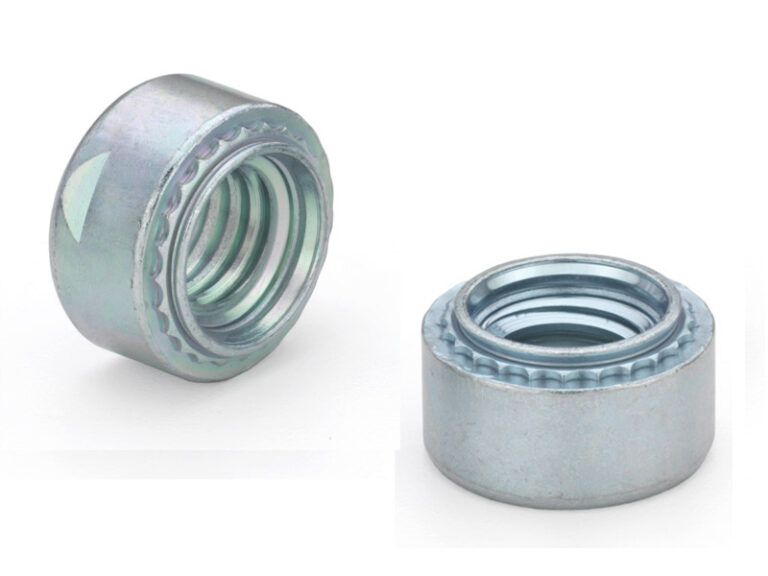

HNL-M6-LZ

Nuts – Types H, HNL

HNL-M6-LZ

Nuts – Types H, HNL

  • Meets torque requirements for IFI 100/107 Grade B (unified) and ANSI B18.16.1M (metric) locknuts.
  • Type H is for use in sheet hardness HRB 80 or less on the Rockwell “B” scale.
  • Type HNL are for use in sheet hardness HRB 60 or less on the Rockwell “B” scale.
Request Samples
Datasheet

Specifications

Thread Code
M6
Thread Size
M6 x 1
Thread Specification
ANSI B18.16.1M
Fastener Material
Carbon Steel
Material Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless plus sealant/lubricant
For Use in Sheet Hardness
HRB 60 / HB 107 or Less
Product Category
Nuts – Types H, HNL
CAD Supplier
PennEngineering® (PEM®)
CADPartID
102735
Thread Type
Self-Locking HNL
PEM Product Family
CL
Unit (Metric/Unified)
Metric

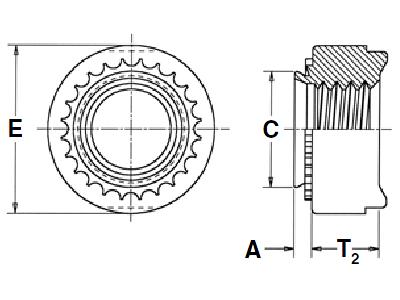

A Shank Max
1.48mm
E ± 0.25_mm
12.7mm
Hole Size in Sheet + 0.13_mm
8.75mm
Min. Dist. Hole C/L to Edge_mm
10mm
Min. Sheet Thickness_mm
1.48mm
C Max._mm
8.72mm
T2 ± 0.25_mm
5mm

Resources

设计工程师紧固件指南
Tech Sheet White Paper
Go to 设计工程师紧固件指南
汽车电子紧固设计标准
Catalog
Go to 汽车电子紧固设计标准
汽车电子母排应用产品手册
Tech Sheet
Go to 汽车电子母排应用产品手册
电气应用产品手册
Tech Sheet
Go to 电气应用产品手册
数据通信/电信紧固解决方案
Tech Sheet White Paper
Go to 数据通信/电信紧固解决方案
CL – 自扣紧螺母
Datasheet
Go to CL – 自扣紧螺母

Installation & Performance Data

cl-cla-nuts-metric
TYPE THREAD CODE SHANK CODE TEST SHEET MATERIAL INSTALLATION (kN) PUSHOUT (N) TORQUE-OUT (N•m)
CLA M2 2 5052-H34 Aluminum 3.56-6.67 500 0.4
CLA M3 1 5052-H34 Aluminum 3.56-6.67 445 0.68
CLA M3 2 5052-H34 Aluminum 3.56-6.67 534 1.02
CLA M4 1 5052-H34 Aluminum 4.45-6.67 534 3.05
CLA M4 2 5052-H34 Aluminum 5.78-8.01 756 3.27
cl-cla-nuts-unified
TYPE THREAD CODE SHANK CODE TEST SHEET MATERIAL INSTALLATION (lbs.) PUSHOUT (lbs.) TORQUE-OUT (in. lbs.)
CLA 440 1 5052-H34 Aluminum 800-1500 100 6
CLA 440 2 5052-H34 Aluminum 800-1500 120 9
CLA 632 1 5052-H34 Aluminum 1000-1500 110 21
CLA 632 2 5052-H34 Aluminum 1200-1700 155 24
CLA 832 1 5052-H34 Aluminum 1000-1500 120 27
CLA 832 2 5052-H34 Aluminum 1300-1800 170 29
CLA 032 1 5052-H34 Aluminum 1700-2200 130 34
CLA 032 2 5052-H34 Aluminum 2600-3100 200 50
cl-h-nuts-metric
TYPE THREAD CODE TEST SHEET THICKNESS & SHEET MATERIAL (mm) INSTALLATION (kN) PUSHOUT (N) TORQUE-OUT (N•m)
H M10 2.29 mm 5052-H34 Aluminum 22 1760 21.5
H M10 2.24 mm Cold-rolled Steel 33 2020 27.1
cl-h-nuts-unified
TYPE THREAD CODE TEST SHEET THICKNESS & SHEET MATERIAL (in.) INSTALLATION (lbs.) PUSHOUT (lbs.) TORQUE-OUT (in. lbs.)
H 0616 .090" 5052-H34 Aluminum 4900 380 190
H 0616 .088" Cold-rolled Steel 7400 460 240
cl-s-cls-clss-nuts-metric
TYPE THREAD CODE SHANK CODE TEST SHEET MATERIAL INSTALLATION (kN) PUSHOUT (N) TORQUE-OUT (N•m)
S, CLS M2, M2.5, M3 0 5052-H34 Aluminum 6.7-8.9 280 0.9
S, CLS M2, M2.5, M3 1 5052-H34 Aluminum 6.7-8.9 400 1.13
S, CLS M2, M2.5, M3 2 5052-H34 Aluminum 6.7-8.9 750 1.47
S, CLS M2, M2.5, M3 0 Cold-Rolled Steel 11.2-15.6 470 1.47
S, CLS M2, M2.5, M3 1 Cold-Rolled Steel 11.2-15.6 550 1.7
S, CLS M2, M2.5, M3 2 Cold-Rolled Steel 11.2-15.6 1010 2.03
S, CLS M3.5 0 5052-H34 Aluminum 11.2-13.5 280 1.8
S, CLS M3.5 1 5052-H34 Aluminum 11.2-13.5 400 1.92
S, CLS M3.5 2 5052-H34 Aluminum 11.2-13.5 840 2.5
S, CLS M3.5 0 Cold-Rolled Steel 13.4-26.7 480 1.8
S, CLS M3.5 1 Cold-Rolled Steel 13.4-26.7 570 2.3
S, CLS M3.5 2 Cold-Rolled Steel 13.4-26.7 1210 2.3
S, CLS M4 0 5052-H34 Aluminum 11.2-13.4 300 2.37
S, CLS M4 1 5052-H34 Aluminum 11.2-13.4 470 2.6
S, CLS M4 2 5052-H34 Aluminum 11.2-13.4 970 4
S, CLS M4 0 Cold-Rolled Steel 18-27 490 2.95
S, CLS M4 1 Cold-Rolled Steel 18-27 645 4
S, CLS M4 2 Cold-Rolled Steel 18-27 1250 5.1
S, CLS, CLSS M5 0 5052-H34 Aluminum 11.2-15.6 300 3
S, CLS, CLSS M5 1 5052-H34 Aluminum 11.2-15.6 480 3.6
S, CLS, CLSS M5 2 5052-H34 Aluminum 11.2-15.6 845 5.7
S, CLS, CLSS M5 0 Cold-Rolled Steel 18-38 530 3.6
S, CLS, CLSS M5 1 Cold-Rolled Steel 18-38 800 4.5
S, CLS, CLSS M5 2 Cold-Rolled Steel 18-38 1420 6.8
S, CLS M6 00 5052-H34 Aluminum 18-32 750 6.5
S, CLS M6 0 5052-H34 Aluminum 18-32 970 7.9
S, CLS M6 1 5052-H34 Aluminum 18-32 1580 10.2
S, CLS M6 2 5052-H34 Aluminum 18-32 1580 14.1
S, CLS M6 00 Cold-Rolled Steel 27-36 900 10
S, CLS M6 0 Cold-Rolled Steel 27-36 1380 13
S, CLS M6 1 Cold-Rolled Steel 27-36 1760 17
S, CLS M6 2 Cold-Rolled Steel 27-36 1760 17
S, CLS M8 1 5052-H34 Aluminum 18-32 1570 13.6
S, CLS M8 2 5052-H34 Aluminum 18-32 1570 18.1
S, CLS M8 1 Cold-Rolled Steel 27-36 1870 18.7
S, CLS M8 2 Cold-Rolled Steel 27-36 1870 20.3
S, CLS M10 1 5052-H34 Aluminum 22-36 1760 32.7
S, CLS M10 2 5052-H34 Aluminum 22-36 1760 32.7
S, CLS M10 1 Cold-Rolled Steel 32-50 2020 36.2
S, CLS M10 2 Cold-Rolled Steel 32-50 2020 36.2
S, CLS M12 1 5052-H34 Aluminum 31-40 2113 39.5
S, CLS M12 1 Cold-Rolled Steel 44-67 4670 83.1
cl-s-cls-clss-nuts-unified
TYPE THREAD CODE SHANK CODE TEST SHEET MATERIAL INSTALLATION (lbs.) PUSHOUT (lbs.) TORQUE-OUT (in. lbs.)
S, CLS 256, 348, 440 0 5052-H34 Aluminum 1500-2000 63 8
S, CLS 256, 348, 440 1 5052-H34 Aluminum 1500-2000 90 10
S, CLS 256, 348, 440 2 5052-H34 Aluminum 1500-2000 170 13
S, CLS 256, 348, 440 3 5052-H34 Aluminum 1500-2000 170 13
S, CLS 256, 348, 440 0 Cold-Rolled Steel 2500-3500 105 13
S, CLS 256, 348, 440 1 Cold-Rolled Steel 2500-3500 125 15
S, CLS 256, 348, 440 2 Cold-Rolled Steel 2500-3500 230 18
S, CLS 256, 348, 440 3 Cold-Rolled Steel 2500-3500 230 18
S, CLS 632 0 5052-H34 Aluminum 2500-3000 63 16
S, CLS 632 1 5052-H34 Aluminum 2500-3000 95 17
S, CLS 632 2 5052-H34 Aluminum 2500-3000 190 22
S, CLS 632 3 5052-H34 Aluminum 2500-3000 190 22
S, CLS 632 0 Cold-Rolled Steel 3000-6000 110 16
S, CLS 632 1 Cold-Rolled Steel 3000-6000 130 20
S, CLS 632 2 Cold-Rolled Steel 3000-6000 275 28
S, CLS 632 3 Cold-Rolled Steel 3000-6000 275 28
S, CLS 832 0 5052-H34 Aluminum 2500-3000 68 21
S, CLS 832 1 5052-H34 Aluminum 2500-3000 105 23
S, CLS 832 2 5052-H34 Aluminum 2500-3000 220 35
S, CLS 832 3 5052-H34 Aluminum 2500-3000 220 35
S, CLS 832 0 Cold-Rolled Steel 4000-6000 110 26
S, CLS 832 1 Cold-Rolled Steel 4000-6000 145 35
S, CLS 832 2 Cold-Rolled Steel 4000-6000 285 45
S, CLS 832 3 Cold-Rolled Steel 4000-6000 285 45
S, CLS, CLSS 024, 032 0 5052-H34 Aluminum 2500-3500 68 26
S, CLS, CLSS 024, 032 1 5052-H34 Aluminum 2500-3500 110 32
S, CLS, CLSS 024, 032 2 5052-H34 Aluminum 2500-3500 190 50
S, CLS, CLSS 024, 032 3 5052-H34 Aluminum 2500-3500 225 50
S, CLS, CLSS 024, 032 0 Cold-Rolled Steel 4000-9000 120 32
S, CLS, CLSS 024, 032 1 Cold-Rolled Steel 4000-9000 180 40
S, CLS, CLSS 024, 032 2 Cold-Rolled Steel 4000-9000 320 60
S, CLS, CLSS 024, 032 3 Cold-Rolled Steel 4000-9000 320 60
S, CLS 1224 1 5052-H34 Aluminum 2500-6500 120 63
S, CLS 1224 2 5052-H34 Aluminum 2500-6500 285 70
S, CLS 1224 3 5052-H34 Aluminum 2500-6500 285 70
S, CLS 1224 1 Cold-Rolled Steel 5000-6500 200 74
S, CLS 1224 2 Cold-Rolled Steel 5000-6500 350 80
S, CLS 1224 3 Cold-Rolled Steel 5000-6500 350 80
S, CLS 0420 0 5052-H34 Aluminum 4000-7000 220 70
S, CLS 0420 1 5052-H34 Aluminum 4000-7000 360 90
S, CLS 0420 2 5052-H34 Aluminum 4000-7000 360 125
S, CLS 0420 3 5052-H34 Aluminum 4000-7000 360 125
S, CLS 0420 0 Cold-Rolled Steel 6000-8000 315 115
S, CLS 0420 1 Cold-Rolled Steel 6000-8000 400 150
S, CLS 0420 2 Cold-Rolled Steel 6000-8000 400 150
S, CLS 0420 3 Cold-Rolled Steel 6000-8000 400 150
S, CLS 0518, 0524 1 5052-H34 Aluminum 4000-7000 380 120
S, CLS 0518, 0524 2 5052-H34 Aluminum 4000-7000 380 160
S, CLS 0518, 0524 3 5052-H34 Aluminum 4000-7000 380 160
S, CLS 0518, 0524 1 Cold-Rolled Steel 6000-8000 420 165
S, CLS 0518, 0524 2 Cold-Rolled Steel 6000-8000 420 180
S, CLS 0518, 0524 3 Cold-Rolled Steel 6000-8000 420 180
S, CLS 0616, 0624 1 5052-H34 Aluminum 5000-8000 400 270
S, CLS 0616, 0624 2 5052-H34 Aluminum 5000-8000 400 270
S, CLS 0616, 0624 3 5052-H34 Aluminum 5000-8000 400 270
S, CLS 0616, 0624 1 Cold-Rolled Steel 7000-11000 460 320
S, CLS 0616, 0624 2 Cold-Rolled Steel 7000-11000 460 320
S, CLS 0616, 0624 3 Cold-Rolled Steel 7000-11000 460 320
S, CLS 0720 1 Cold-Rolled Steel 9000-13000 450 340
S, CLS 0813, 0820 1 5052-H34 Aluminum 7000-9000 475 350
S, CLS 0813, 0820 2 5052-H34 Aluminum 7000-9000 475 350
S, CLS 0813, 0820 1 Cold-Rolled Steel 10000-15000 1050 735
S, CLS 0813, 0820 2 Cold-Rolled Steel 10000-15000 1050 735
cl-s-ss-nuts-metric
TYPE THREAD CODE SHANK CODE TEST SHEET MATERIAL INSTALLATION (kN) PUSHOUT (N) TORQUE-OUT (N•m)
S RTM3 0 5052-H34 Aluminum 6.7-8.9 280 0.9
S RTM3 1 5052-H34 Aluminum 6.7-8.9 400 1.13
S RTM3 2 5052-H34 Aluminum 6.7-8.9 750 1.47
S RTM3 0 Cold-Rolled Steel 11.2-15.6 470 1.47
S RTM3 1 Cold-Rolled Steel 11.2-15.6 550 1.7
S RTM3 2 Cold-Rolled Steel 11.2-15.6 1010 2.03
S RTM4 0 5052-H34 Aluminum 11.2-13.4 300 2.37
S RTM4 1 5052-H34 Aluminum 11.2-13.4 470 2.6
S RTM4 2 5052-H34 Aluminum 11.2-13.4 970 4
S RTM4 0 Cold-Rolled Steel 18-27 490 2.95
S RTM4 1 Cold-Rolled Steel 18-27 645 4
S RTM4 2 Cold-Rolled Steel 18-27 1250 5.1
SS RTM5 0 5052-H34 Aluminum 11.2-15.6 300 3
SS RTM5 1 5052-H34 Aluminum 11.2-15.6 480 3.6
SS RTM5 2 5052-H34 Aluminum 11.2-15.6 845 5.7
SS RTM5 0 Cold-Rolled Steel 18-38 530 3.6
SS RTM5 1 Cold-Rolled Steel 18-38 800 4.5
SS RTM5 2 Cold-Rolled Steel 18-38 1420 6.8
S RTM6 00 5052-H34 Aluminum 18-32 750 6.5
S RTM6 0 5052-H34 Aluminum 18-32 970 7.9
S RTM6 1 5052-H34 Aluminum 18-32 1580 10.2
S RTM6 2 5052-H34 Aluminum 18-32 1580 14.1
S RTM6 00 Cold-Rolled Steel 27-36 900 10
S RTM6 0 Cold-Rolled Steel 27-36 1380 13
S RTM6 1 Cold-Rolled Steel 27-36 1760 17
S RTM6 2 Cold-Rolled Steel 27-36 1760 17
S RTM8 1 5052-H34 Aluminum 18-32 1690 13.6
S RTM8 2 5052-H34 Aluminum 18-32 1690 18.1
S RTM8 1 Cold-Rolled Steel 27-36 1865 18.7
S RTM8 2 Cold-Rolled Steel 27-36 1865 20.3
cl-s-ss-nuts-unified
TYPE THREAD CODE SHANK CODE TEST SHEET MATERIAL INSTALLATION (lbs.) PUSHOUT (lbs.) TORQUE-OUT (in. lbs.)
S RT440 0 5052-H34 Aluminum 1500-2000 63 8
S RT440 1 5052-H34 Aluminum 1500-2000 90 10
S RT440 2 5052-H34 Aluminum 1500-2000 170 13
S RT440 0 Cold-Rolled Steel 2500-3500 105 13
S RT440 1 Cold-Rolled Steel 2500-3500 125 15
S RT440 2 Cold-Rolled Steel 2500-3500 230 18
S RT632 0 5052-H34 Aluminum 2500-3000 63 16
S RT632 1 5052-H34 Aluminum 2500-3000 95 17
S RT632 2 5052-H34 Aluminum 2500-3000 190 22
S RT632 0 Cold-Rolled Steel 3000-6000 110 16
S RT632 1 Cold-Rolled Steel 3000-6000 130 20
S RT632 2 Cold-Rolled Steel 3000-6000 275 28
S RT832 0 5052-H34 Aluminum 2500-3000 68 21
S RT832 1 5052-H34 Aluminum 2500-3000 105 23
S RT832 2 5052-H34 Aluminum 2500-3000 220 35
S RT832 0 Cold-Rolled Steel 4000-6000 110 26
S RT832 1 Cold-Rolled Steel 4000-6000 145 35
S RT832 2 Cold-Rolled Steel 4000-6000 285 45
SS RT032 0 5052-H34 Aluminum 2500-3000 68 26
SS RT032 1 5052-H34 Aluminum 2500-3000 110 32
SS RT032 2 5052-H34 Aluminum 2500-3000 190 50
SS RT032 0 Cold-Rolled Steel 4000-9000 120 32
SS RT032 1 Cold-Rolled Steel 4000-9000 180 40
SS RT032 2 Cold-Rolled Steel 4000-9000 320 60
S RT0420 0 5052-H34 Aluminum 4000-7000 220 70
S RT0420 1 5052-H34 Aluminum 4000-7000 360 90
S RT0420 2 5052-H34 Aluminum 4000-7000 360 125
S RT0420 0 Cold-Rolled Steel 6000-8000 315 115
S RT0420 1 Cold-Rolled Steel 6000-8000 400 150
S RT0420 2 Cold-Rolled Steel 6000-8000 400 150
S RT0518 1 5052-H34 Aluminum 4000-7000 380 120
S RT0518 2 5052-H34 Aluminum 4000-7000 380 160
S RT0518 1 Cold-Rolled Steel 6000-8000 420 165
S RT0518 2 Cold-Rolled Steel 6000-8000 420 180
cl-sh-nuts-metric
TYPE THREAD CODE SHANK CODE TEST SHEET THICKNESS & SHEET MATERIAL (mm) SHEET HARDNESS HRC INSTALLATION (kN) PUSHOUT (N) TORQUE-OUT (N•m)
SH M6 1 2.5 mm S700MC 23 52.1 4200 17
SH M6 2 2.5 mm S700MC 23 57.4 4500 19
SH M8 1 2.5 mm S700MC 23 56.1 4600 30
SH M8 2 2.5 mm S700MC 23 57.4 4900 30
SH M10 1 2.5 mm S700MC 23 71.2 5400 56
cl-sh-nuts-unified
TYPE THREAD CODE SHANK CODE TEST SHEET THICKNESS & SHEET MATERIAL (in.) SHEET HARDNESS HRC INSTALLATION (lbs.) PUSHOUT (lbs.) TORQUE-OUT (in. lbs.)
SH 0420 1 .098" S700MC 23 11700 950 150
SH 0420 2 .098" S700MC 23 12900 1000 170
SH 0518 1 .098" S700MC 23 12600 1050 265
SH 0518 2 .098" S700MC 23 12900 1100 265
SH 0616 1 .098" S700MC 23 15300 1200 500
cl-sl-nuts-metric
TYPE THREAD CODE SHANK CODE MAX. TORQUE 1ST THRU 3RD (N•m) MIN. TORQUE 1ST THRU 3RD (N•m) TEST SHEET MATERIAL & THICKNESS INSTALLATION (kN) PUSHOUT (N) TORQUE-OUT (N•m)
SL M3 1 0.67 0.04 5052-H34 Aluminum 6.7-8.9 400 1.13
SL M3 2 0.67 0.04 5052-H34 Aluminum 6.7-8.9 750 1.47
SL M3.5 1 1.2 0.08 5052-H34 Aluminum 11.2-13.5 400 1.92
SL M3.5 2 1.2 0.08 5052-H34 Aluminum 11.2-13.5 840 2.5
SL M4 1 2.1 0.13 5052-H34 Aluminum 11.2-13.4 470 2.6
SL M4 2 2.1 0.13 5052-H34 Aluminum 11.2-13.4 970 4
SL M5 1 2.4 0.18 5052-H34 Aluminum 11.2-15.6 480 3.6
SL M5 2 2.4 0.18 5052-H34 Aluminum 11.2-15.6 845 5.7
SL M6 1 4 0.3 5052-H34 Aluminum 18-32 1580 10.2
SL M6 2 4 0.3 5052-H34 Aluminum 18-32 1580 14.1
SL M8 1 6 0.5 5052-H34 Aluminum 18-32 1570 13.6
SL M8 2 6 0.5 5052-H34 Aluminum 18-32 1570 18.1
SL M10 1 12 0.8 5052-H34 Aluminum 22.36 1760 32.7
SL M10 2 12 0.8 5052-H34 Aluminum 22.36 1760 32.7
SL M3 1 0.67 0.04 Cold-Rolled Steel 11.2-15.6 550 1.7
SL M3 2 0.67 0.04 Cold-Rolled Steel 11.2-15.6 1010 2.03
SL M3.5 1 1.2 0.08 Cold-Rolled Steel 13.4-26.7 570 2.3
SL M3.5 2 1.2 0.08 Cold-Rolled Steel 13.4-26.7 1210 2.3
SL M4 1 2.1 0.13 Cold-Rolled Steel 18-27 645 4
SL M4 2 2.1 0.13 Cold-Rolled Steel 18-27 1250 5.1
SL M5 1 2.4 0.18 Cold-Rolled Steel 18-38 800 4.5
SL M5 2 2.4 0.18 Cold-Rolled Steel 18-38 1112 6.8
SL M6 1 4 0.3 Cold-Rolled Steel 27-36 1760 17
SL M6 2 4 0.3 Cold-Rolled Steel 27-36 1760 17
SL M8 1 6 0.5 Cold-Rolled Steel 27-36 1870 18.7
SL M8 2 6 0.5 Cold-Rolled Steel 27-36 1870 20.3
SL M10 1 12 0.8 Cold-Rolled Steel 32-50 2020 36.2
SL M10 2 12 0.8 Cold-Rolled Steel 32-50 2020 36.2
cl-sl-nuts-unified
TYPE THREAD CODE SHANK CODE MAX. TORQUE 1ST THRU 3RD (in. lbs.) MIN. TORQUE 1ST THRU 3RD (in. lbs.) TEST SHEET MATERIAL & THICKNESS INSTALLATION (lbs.) PUSHOUT (lbs.) TORQUE-OUT (in. lbs.)
SL 440 1 5.75 0.4 5052-H34 Aluminum 1500-2000 90 10
SL 440 2 5.75 0.4 5052-H34 Aluminum 1500-2000 170 13
SL 632 1 10.5 0.8 5052-H34 Aluminum 2500-3000 95 17
SL 632 2 10.5 0.8 5052-H34 Aluminum 2500-3000 190 22
SL 832 1 18 1.2 5052-H34 Aluminum 2500-3000 105 23
SL 832 2 18 1.2 5052-H34 Aluminum 2500-3000 220 35
SL 032 1 21 1.65 5052-H34 Aluminum 2500-3000 110 32
SL 032 2 21 1.65 5052-H34 Aluminum 2500-3000 190 50
SL 0420 1 35 3.75 5052-H34 Aluminum 4000-7000 360 90
SL 0420 2 35 3.75 5052-H34 Aluminum 4000-7000 360 125
SL 0518 1 53 4.75 5052-H34 Aluminum 4000-7000 380 120
SL 0518 2 53 4.75 5052-H34 Aluminum 4000-7000 380 160
SL 440 1 5.75 0.4 Cold-Rolled Steel 2500-3500 125 15
SL 440 2 5.75 0.4 Cold-Rolled Steel 2500-3500 230 18
SL 632 1 10.5 0.8 Cold-Rolled Steel 3000-6000 130 20
SL 632 2 10.5 0.8 Cold-Rolled Steel 3000-6000 275 28
SL 832 1 18 1.2 Cold-Rolled Steel 4000-6000 145 35
SL 832 2 18 1.2 Cold-Rolled Steel 4000-6000 285 45
SL 032 1 21 1.65 Cold-Rolled Steel 4000-9000 180 40
SL 032 2 21 1.65 Cold-Rolled Steel 4000-9000 250 60
SL 0420 1 35 3.75 Cold-Rolled Steel 6000-9000 400 150
SL 0420 2 35 3.75 Cold-Rolled Steel 6000-9000 400 150
SL 0518 1 53 4.75 Cold-Rolled Steel 6000-8000 420 165
SL 0518 2 53 4.75 Cold-Rolled Steel 6000-8000 420 180
cl-smpp-nuts-metric
TYPE THREAD CODE TEST SHEET MATERIAL (in.) INSTALLATION (kN) PUSHOUT (N) TORQUE-OUT (N•m)
SMPP M2.5 0.7 mm 304 Stainless Steel HRB 89 20 200 1.35
SMPP M3 0.7 mm 304 Stainless Steel HRB 89 20 300 1.85
SMPP M3.5 0.7 mm 304 Stainless Steel HRB 89 27 300 1.9
cl-smpp-nuts-unified
TYPE THREAD CODE TEST SHEET MATERIAL (in.) INSTALLATION (lbs.) PUSHOUT (lbs.) TORQUE-OUT (in. lbs.)
SMPP 256 .029" 304 Stainless Steel HRB 89 4500 50 10
SMPP 440 .029" 304 Stainless Steel HRB 89 4500 75 15
SMPP 632 .029" 304 Stainless Steel HRB 89 6000 75 20
cl-smps-nuts-metric
TYPE THREAD CODE TEST SHEET MATERIAL (in.) INSTALLATION (kN) PUSHOUT (N) TORQUE-OUT (N•m)
SMPS M2.5 Cold-rolled Steel 6.7 156 1.13
SMPS M3 Cold-rolled Steel 8 267 1.35
SMPS M3.5 Cold-rolled Steel 8.8 289 1.58
cl-smps-nuts-unified
TYPE THREAD CODE TEST SHEET MATERIAL (in.) INSTALLATION (lbs.) PUSHOUT (lbs.) TORQUE-OUT (in. lbs.)
SMPS 256 Cold-rolled Steel 1500 35 8
SMPS 440 Cold-rolled Steel 1800 60 12
SMPS 632 Cold-rolled Steel 2000 65 14
cl-sp-nuts-metric
TYPE THREAD CODE SHANK CODE TEST SHEET MATERIAL INSTALLATION (kN) PUSHOUT (N) TORQUE-OUT (N•m)
SP M2 1 304 Stainless Steel 40 725 1.92
SP M2 2 304 Stainless Steel 44.5 1290 2.03
SP M2.5 0 304 Stainless Steel 35.6 575 1.58
SP M2.5 1 304 Stainless Steel 40 725 1.92
SP M2.5 2 304 Stainless Steel 44.5 1290 2.03
SP M3 0 304 Stainless Steel 35.6 575 1.58
SP M3 1 304 Stainless Steel 40 725 1.92
SP M3 2 304 Stainless Steel 44.5 1290 2.03
SP M4 0 304 Stainless Steel 40 645 3.38
SP M4 1 304 Stainless Steel 44.5 800 4.18
SP M4 2 304 Stainless Steel 49 1600 5.08
SP M5 0 304 Stainless Steel 42.3 800 3.95
SP M5 1 304 Stainless Steel 46.7 1025 5.08
SP M5 2 304 Stainless Steel 51.2 1775 6.77
SP M6 1 304 Stainless Steel 60 2000 17
SP M6 2 304 Stainless Steel 60 2600 19
SP M8 1 304 Stainless Steel 66 2100 19
SP M8 2 304 Stainless Steel 80 4500 23
SP M10 1 304 Stainless Steel 80 2150 38
cl-sp-nuts-unified
TYPE THREAD CODE SHANK CODE TEST SHEET MATERIAL INSTALLATION (lbs.) PUSHOUT (lbs.) TORQUE-OUT (in. lbs.)
SP 256 0 304 Stainless Steel 8000 130 14
SP 256 1 304 Stainless Steel 9000 165 17
SP 256 2 304 Stainless Steel 10000 290 18
SP 440 0 304 Stainless Steel 8000 130 14
SP 440 1 304 Stainless Steel 9000 165 17
SP 440 2 304 Stainless Steel 10000 290 18
SP 632 0 304 Stainless Steel 8500 140 18
SP 632 1 304 Stainless Steel 9500 170 24
SP 632 2 304 Stainless Steel 10500 340 28
SP 832 0 304 Stainless Steel 9000 145 30
SP 832 1 304 Stainless Steel 10000 180 37
SP 832 2 304 Stainless Steel 11000 360 45
SP 024/032 0 304 Stainless Steel 9500 180 35
SP 024/032 1 304 Stainless Steel 10500 230 45
SP 024/032 2 304 Stainless Steel 11500 400 60
SP 0420 1 304 Stainless Steel 13500 450 150
SP 0420 2 304 Stainless Steel 13500 600 170
SP 0518 1 304 Stainless Steel 14800 470 170
SP 0518 2 304 Stainless Steel 14800 750 250
SP 0524 1 304 Stainless Steel 14800 470 170
SP 0524 2 304 Stainless Steel 14800 750 250
SP 0616/0624 1 304 Stainless Steel 16000 600 300
SP 0616/0624 2 304 Stainless Steel 20000 700 370

Inventory

Distributor Quantity Contact Phone Address Locations

Search

您想找什么？

您可以用多种方式来搜索想要的内容，如通过完整的或部分料号来搜索库存或产品规格。 您也无需输入“库存“或“产品规格”。如何搜索：
完整或部分料号: “S-632-1ZI”, “CLS 632”类型: “CLS”, “FH”, “SO”网站内容: “自扣紧螺母” or “PEM螺钉”
