ITB-M4

Molded-in Threaded Inserts, Thru-Threaded

ITB-M4

Molded-in Threaded Inserts, Thru-Threaded

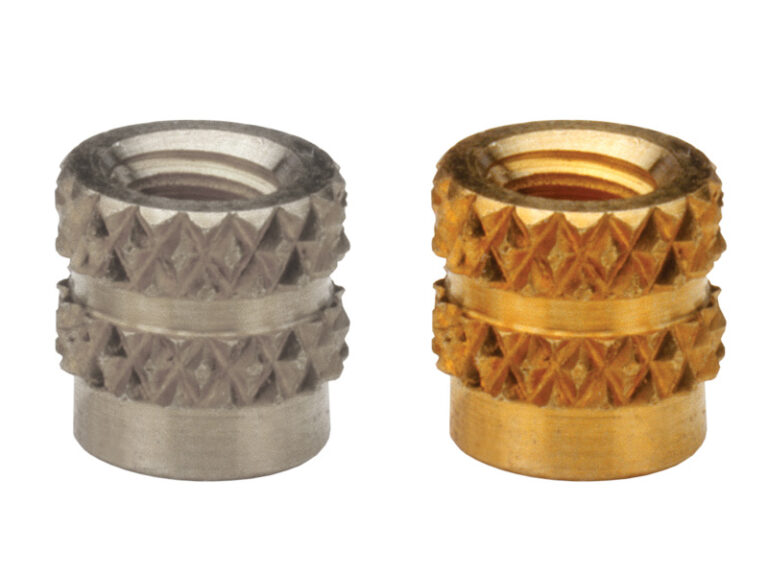

  • Pilot diameter and undercuts allow plastic to flow into grooves providing high pullout resistance.
  • Aluminum inserts ideal for light weight designs.
  • Aluminum and stainless steel inserts offer lead-free alternative.

规格

Thread Code
M4
螺纹尺寸
M4 x 0.7
螺纹尺寸
M4 x 0.7
螺纹规格
6H per ASME B1.13M
紧固件材质
黄铜
Standard Material
Free-machining, Leaded Brass
标准表面处理
No Finish, Plain
Product Category
Molded-in Threaded Inserts, Thru-Threaded
CAD Supplier
PennEngineering® (SI®)
CADPartID
103800
螺纹类型
ITB
底板材质
塑料
品牌
SI
紧固件特点
内螺纹
安装设备/方法
注塑
PEM产品系列
SI
产品类型
嵌件
技术类型
塑料用嵌件
单位(公制/英制)
公制

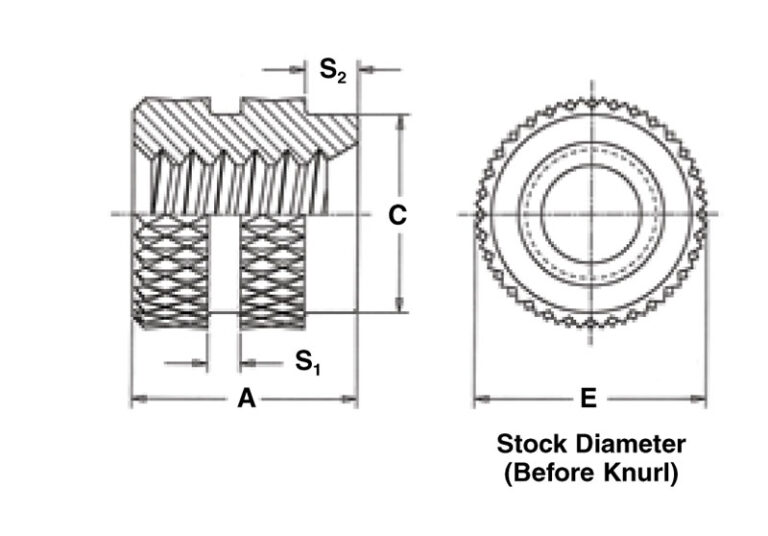

A ± 0.13_mm
6.35mm
C ± 0.13_mm
5.74mm
E Nom._mm
6.35mm
Minor Dia.Max._mm
3.42mm
Minor Dia.Min._mm
3.25mm
S1 Nom._mm
1.16mm
S2 Nom._mm
1.57mm
