IUA-832-1
Tapered, thru threaded inserts – Types IUA, IUB, IUC
IUA-832-1
Tapered, thru threaded inserts – Types IUA, IUB, IUC
- Designed for use in tapered holes.
- Tapered mounting hole allows for rapid and accurate alignment prior to installation.
- Aluminum inserts ideal for light weight designs.
- Aluminum and stainless steel inserts offer lead-free alternative.
规格
- Thread Code
- 832
- 螺纹尺寸
- .164-32 (#8-32), #8-32
- 紧固件材质
- 铝
- 标准表面处理
- No Finish, Plain
- Length Code
- 1
- Product Category
- Tapered, thru threaded inserts – Types IUA, IUB, IUC
- CAD Supplier
- PennEngineering® (SI®)
- CADPartID
- 102738
- 螺纹类型
- IUA
- 底板材质
- 塑料
- 品牌
- SI
- 紧固件特点
- 内螺纹
- 安装设备/方法
- 热熔焊/超声波
- PEM产品系列
- SI
- 产品类型
- 嵌件
- 技术类型
- 塑料用嵌件
- 单位（公制/英制）
- 公制

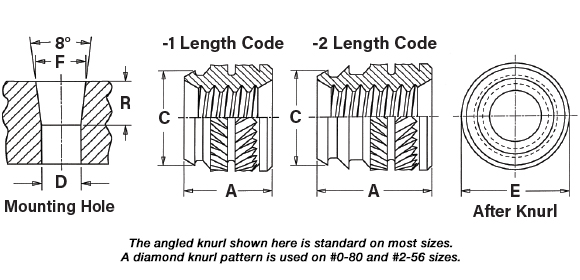

- A ± .005_in
- .185in
- C ± .005_in
- .230in
- D ± .002_in
- .226in
- E ± .005_in
- .250in
- F ± .002_in
- .234in
- Min. Hole Depth_in
- .225in
- R Ref. Taper Length_in
- .057in
