Heat Staking Insert, Symmetrical, Thru-Threaded

IUTFB-0518

Heat Staking Insert, Symmetrical, Thru-Threaded

  • Provides larger surface area and high pullout in reverse entry applications.
  • Self-aligning lead-in provides accurate alignment prior to installation.
  • Aluminum and stainless steel available upon request.
  • Aluminum inserts ideal for light weight designs.
  • Aluminum and stainless steel inserts offer lead-free alternative.

规格

Thread Code
0518
Thread Size
.313-18 (5/16-18), 5/16-18
Thread Specification
2B per ASME B1.1
Fastener Material
Brass
Standard Material
Brass
Product Category
Heat Staking Insert, Flanged, Straight Wall, Thru-Threaded
CAD Supplier
PennEngineering® (SI®)
CADPartID
121614
Thread Type
IUTFB
Base Panel Material
Plastic
Brand
SI
Fastener Characteristics
Threaded Internal
Installation Equipment/Method
Heat Staking/Ultrasonic
PEM Product Family
SI
Product Type
Inserts
Technology Type
Inserts for Plastics
Unit (Metric/Unified)
Unified

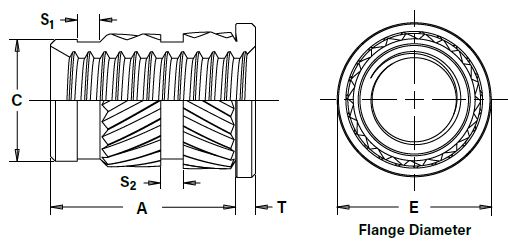

A ± .005_in
.500in
C ± .005_in
.372in
E ± .005_in
.438in
Hole Dia. +.003 -.000_in
.378in
Min. Hole Depth_in
.530in
S1 Nom._in
.062in
S2 Nom._in
.046in
T ± 0.005_in
.050in
