SOAG-3.5M3-10
Grounding Standoffs – Types SOSG, SOAG
SOAG-3.5M3-10
Grounding Standoffs – Types SOSG, SOAG

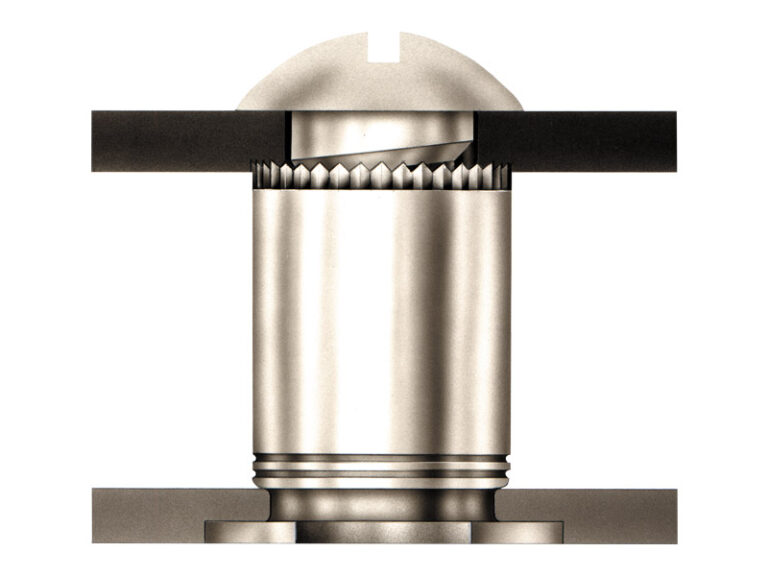

These standoffs, which use the proven self-clinching design, install with a squeeze in properly sized round holes – and become permanently mounted in the thin sheet.

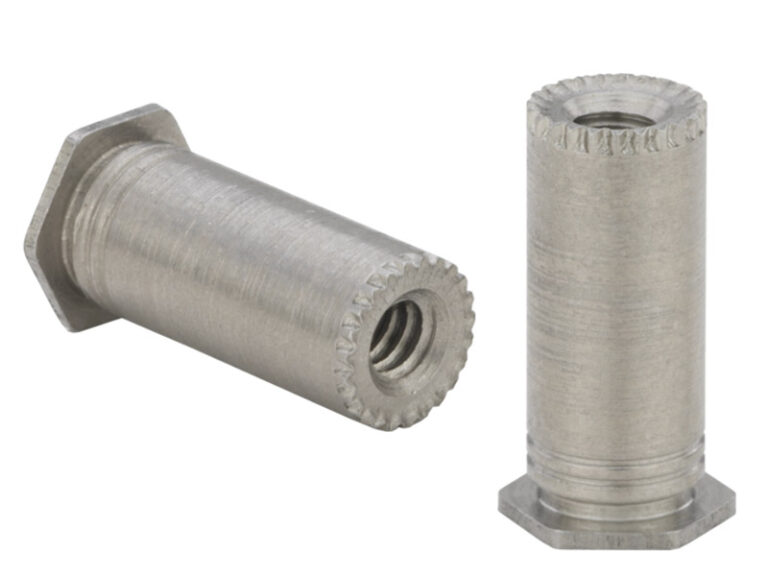

Types SOAG and SOSG grounding standoffs are designed for clinching into steel or aluminum chassis while the “gripping teeth” on the opposite end of the standoff firmly contact mating PC board.
If you require a standoff which we do not offer in this bulletin, please contact us. We will be happy to work with you to satisfy your special need.
For special lengths greater than 12mm, Types SOSG and SOAG are blind threaded.
规格
- Thread Code
- 3.5M3
- 螺纹尺寸
- M3 x 0.5
- 螺纹尺寸
- M3 x 0.5
- 螺纹规格
- 6H, ANSI/ASME B1.13M, Internal
- 紧固件材质
- 铝
- For Use in Sheet Hardness
- HRB 50 / HB 82 or Less
- Anvil Hole Diameter + 0.08_mm
- 5.50mm
- Length Code
- 10
- Product Category
- Grounding Standoffs – Types SOSG, SOAG
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 103737
- 应用类型
- 汽车电子, 数据通信, 新能源汽车充电设备, 电信
- 底板材质
- 铝, 钢
- 品牌
- PEM
- 紧固件特点
- 内螺纹
- 行业
- 汽车电子, 数据通信-电信, 工业及商业
- 安装设备/方法
- C型架手动进料
- PEM产品系列
- SO
- 产品类型
- 螺柱
- 技术类型
- 自扣紧
- 单位（公制/英制）
- 公制

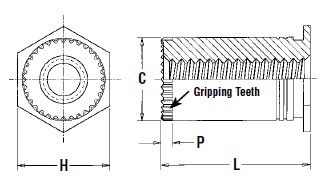

- C – 0.13_mm
- 5.39mm
- H值 ±025毫米
- 6.4mm
- Hole Size in Sheet + 0.08_mm
- 5.40mm
- L Length 010 000in Or 025mm
- 10mm
- Min. Dist. Hole C/L to Edge_mm
- 6.8mm
- Min. Sheet Thickness_mm
- 1mm
- P Nom._mm
- 0.76mm
资源
安装&性能数据
| TYPE | THREAD CODE | TEST SHEET THICKNESS AND TEST SHEET MATERIAL | INSTALLATION (kN) | PUSHOUT (N) | TORQUE-OUT (N-m) | PULL-THRU (N) | |
|---|---|---|---|---|---|---|---|
| SOSG, SOAG | 3.5M3 | 1.6 mm 5052-H34 Aluminum | 7.6 | 1330 | 2.82 | 825 |
