Self-Clinching Nuts – Types S, SS, CLS, CLSS, SP
SP-M5-0
Self-Clinching Nuts – Types S, SS, CLS, CLSS, SP

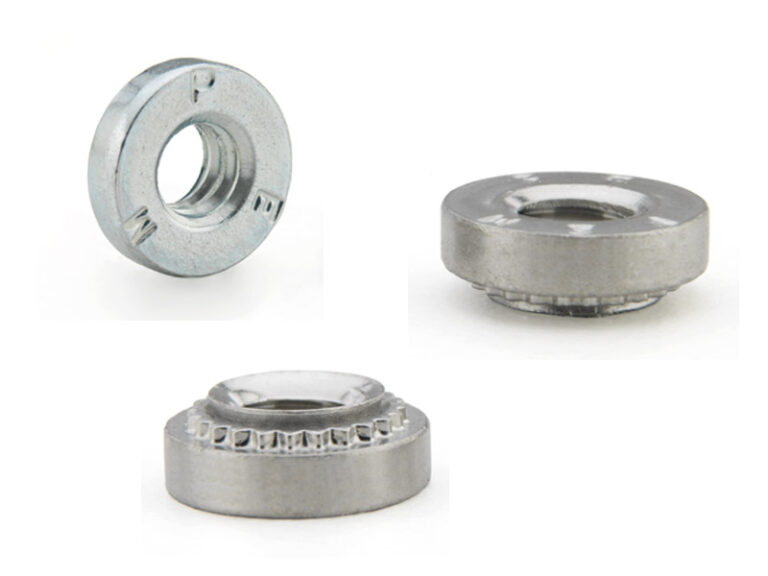

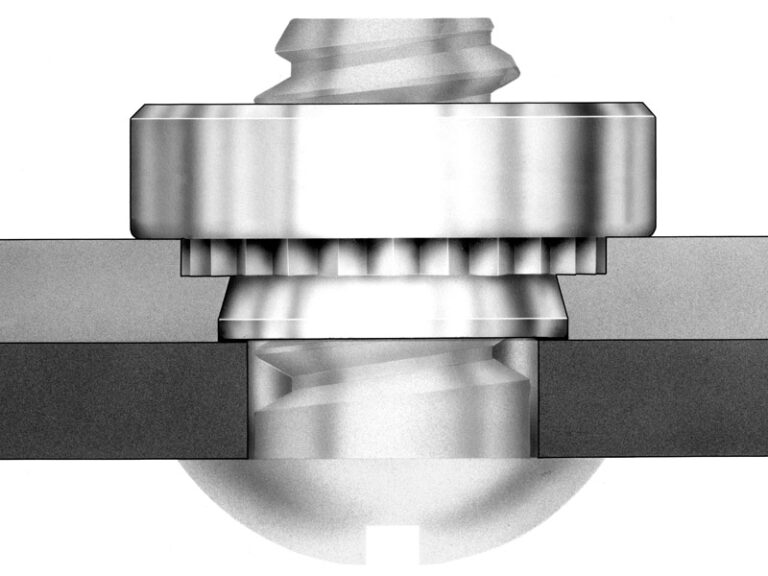

Self-clinching nuts are installed by placing them in properly sized holes in sheets and applying a parallel squeezing force to the head of the nut. The sheet metal surrounding the head cold flows into an undercut thereby making the fastener an integral part of the sheet. A serrated clinching ring prevents the fastener from rotating after installation.
Provide load-bearing threads in thin sheets with high pushout and torque-out resistance.
Type CLA is recommended for use in steel or aluminum sheets HRB (Rockwell "B" scale) 50 or less and HB (Hardness Brinell) 82 or less.
Types CLS / CLSS are recommended for use in steel or aluminum sheets HRB (Rockwell "B" scale) 70 or less and HB (Hardness Brinell) 125 or less.
Types S / SS are recommended for use in steel or aluminum sheets HRB (Rockwell "B" scale) 80 or less and HB (Hardness Brinell) 150 or less.
Type SP is recommended for use in stainless steel sheets HRB (Rockwell "B" scale) 90 or less and HB (Hardness Brinell) 185 or less.
规格
- 螺纹代码
- M5
- 螺纹尺寸
- M5 x 0.8
- 螺纹规格
- Internal
- 适用板材硬度
- HRB 90 / HB 185 or Less
- 产品类型
- Self-Clinching Nuts – Types S, SS, CLS, CLSS, SP
- 螺纹类型
- PEM nuts: For installing into stainless steel|PEM nuts: Standard
- 底板材质
- 不锈钢
- PEM产品系列
- CL, SS
- 最大柄长
- 0.77mm

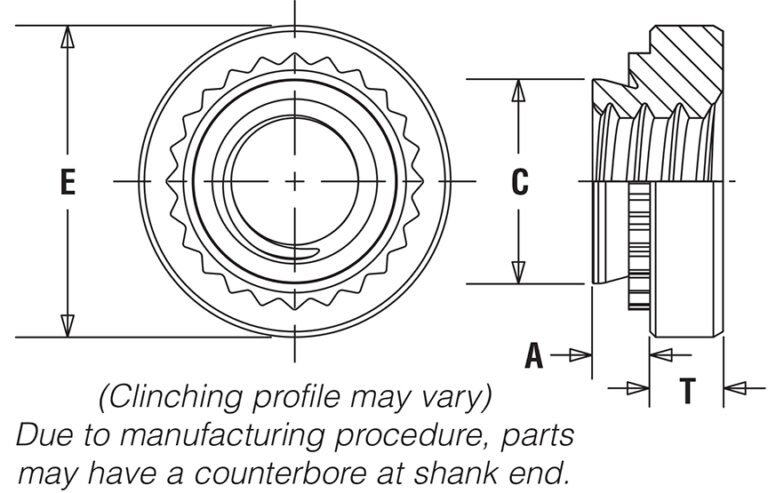

- E ± 0.25_mm
- 8.64mm
- 板材开孔尺寸 + 0.08_mm
- 6.35mm
- 最小孔边距_mm
- 7.1mm
- 最小.板材厚度_毫米
- 0.8mm
- C 最大_毫米
- 6.33mm
- T ± 0.25_mm
- 2mm
资源
安装&性能数据
| TYPE | THREAD CODE | SHANK CODE | TEST SHEET MATERIAL | INSTALLATION (kN) | PUSHOUT (N) | TORQUE-OUT (N•m) | ||
|---|---|---|---|---|---|---|---|---|
| SP | M5 | 0 | 304 Stainless Steel | 42.3 | 800 | 3.95 | ||
| SP | M5 | 1 | 304 Stainless Steel | 46.7 | 1025 | 5.08 | ||
| SP | M5 | 2 | 304 Stainless Steel | 51.2 | 1775 | 6.77 |
| TYPE | THREAD CODE | SHANK CODE | TEST SHEET MATERIAL | INSTALLATION (kN) | PUSHOUT (N) | TORQUE-OUT (N•m) | |
|---|---|---|---|---|---|---|---|
| SP | M5 | 0 | 304 Stainless Steel | 42.3 | 800 | 3.95 | |
| SP | M5 | 1 | 304 Stainless Steel | 46.7 | 1025 | 5.08 | |
| SP | M5 | 2 | 304 Stainless Steel | 51.2 | 1775 | 6.77 |
