ITA-M5
Molded-in Threaded Inserts, Thru-Threaded
ITA-M5
Molded-in Threaded Inserts, Thru-Threaded

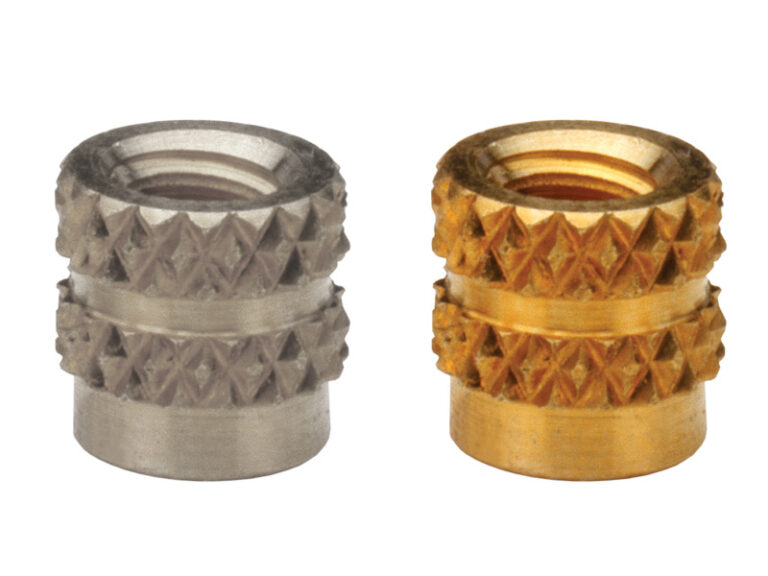

- Pilot diameter and undercuts allow plastic to flow into grooves providing high pullout resistance.
- Aluminum inserts ideal for light weight designs.
- Aluminum and stainless steel inserts offer lead-free alternative.
Specifications
- Thread Code
- M5
- Thread Size
- M5 x 0.8
- Thread Size X Pitch
- M5 x 0.8
- Thread Specification
- 6H per ASME B1.13M
- Fastener Material
- Aluminum
- Standard Material
- Aluminum
- Standard Finish
- No Finish, Plain
- Product Category
- Molded-in Threaded Inserts, Thru-Threaded
- CAD Supplier
- PennEngineering® (SI®)
- CADPartID
- 103800
- Thread Type
- ITA
- Base Panel Material
- Plastic
- Brand
- SI
- Fastener Characteristics
- Threaded Internal
- Installation Equipment/Method
- Molded-In
- PEM Product Family
- SI
- Product Type
- Inserts
- Technology Type
- Inserts for Plastics, Self-Clinching
- Unit (Metric/Unified)
- Metric

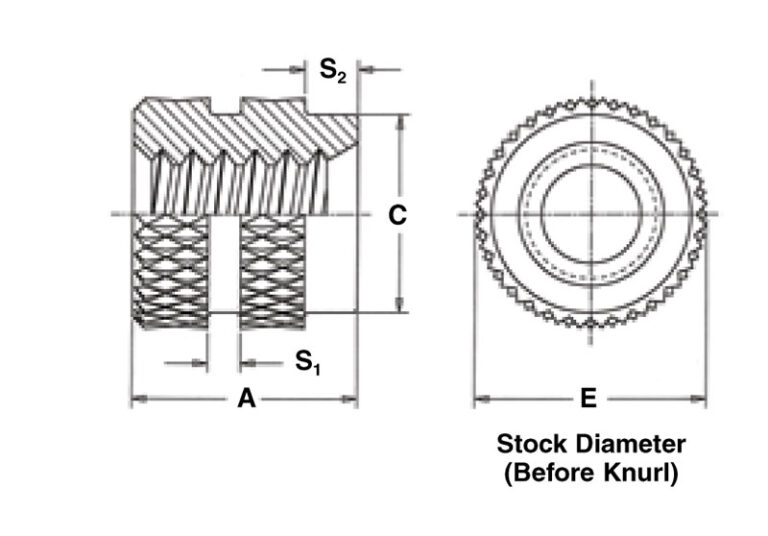

- A ± 0.13_mm
- 7.13mm
- C ± 0.13_mm
- 6.57mm
- E Nom._mm
- 7.13mm
- Minor Dia.Max._mm
- 4.34mm
- Minor Dia.Min._mm
- 4.15mm
- S1 Nom._mm
- 1.16mm
- S2 Nom._mm
- 1.57mm
