PEM® IFH™ Stud
Delivers ISO:20653 compliant ingress protection for your critical applications
The new IFH™ Stud is the first ingress protection fastener from PEM® that creates a watertight seal and meets ISO: 20653-2014 and IPX7 and IPX9K standards for ingress protection.
This new flush-head, self clinching stud is redesigned for maximum material flow into the stud undercut – plus tighter tolerances and process controls that ensure you maintain consistent, reliable ingress protection.
- Meets ISO:20653-2014 ingress protection levels

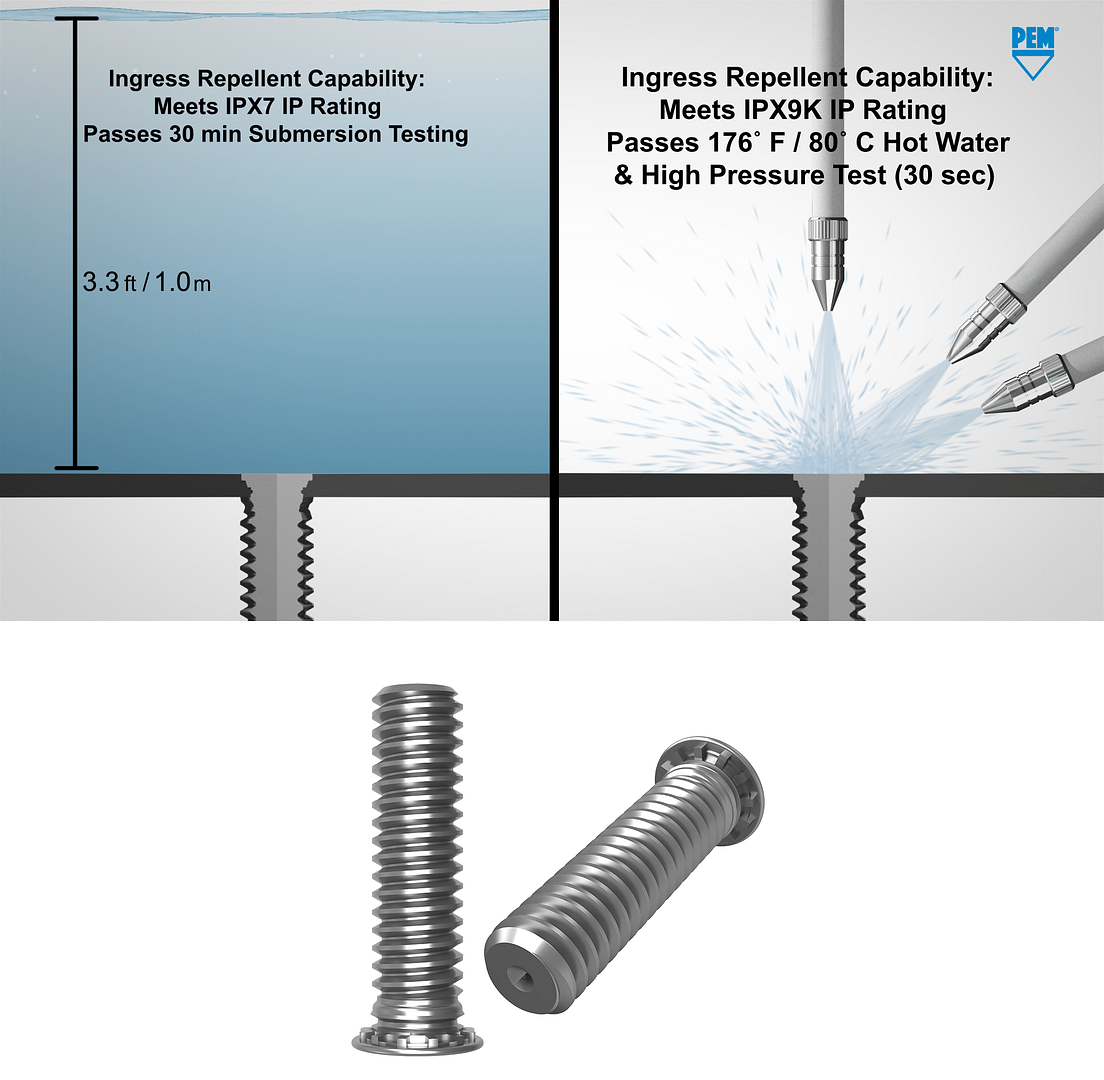

- Ingress repellent capability, meeting IPX7 and IPX9K IP ratings
- No rubber gasket or sealants needed
- Testing completed in CR4 steel, 6082-T6 aluminum, and 304 stainless steel
The improved design and quality controls of the IFH stud allow for an ingress prevention joint to be used with a clinch design. No sealant or O-Ring is required in the joint to maintain ingress prevention. The joint is instantly sealed upon installation.
To request samples:
- Download datasheet to find the part number you need to order.
- Click on the Request Samples button below.
