AEKS8-610-6.6B
Minimized-Profile Head Threaded Insert – Closed End
AEKS8-610-6.6B
Minimized-Profile Head Threaded Insert – Closed End
- Feature a minimized-profile head and knurled shank.
- Allows near-flush installations with no need for special hole preparations such as countersinking or dimpling.
- Additional thread sizes and grip ranges available.
- Also available in aluminum, brass, and monel ®. Call for availability.
Specifications
- Thread Size
- M6 x 1
- Thread Size X Pitch
- M6 x 1
- Thread Specification
- 6H per ASME B1.13M
- Fastener Material
- Carbon Steel
- Standard Material
- Low Carbon Steel, C-1008 or, C-1010 or equivalent
- Standard Finish
- SC1 (5µm), Type II, yellow, Zinc plated per ASTM B633, Zinc plus Yellow Chromate
- Product Category
- Minimized-Profile Head Threaded Insert – Closed End
- CAD Supplier
- PennEngineering® (Atlas®)
- CADPartID
- 102733
- Fastening
- Uninstalled
- ATLAS products Grip Range
- 4.20mm, 4.20mm – 6.60mm, 6.60mm
- Base Panel Material
- Aluminum, Brass, Copper, Hard Steel, Stainless Steel, Steel
- Brand
- ATLAS
- Fastener Characteristics
- Threaded Internal
- Installation Equipment/Method
- Hand Tools
- Product Type
- Blind Threaded Inserts
- Technology Type
- Riveting
- Unit (Metric/Unified)
- Metric

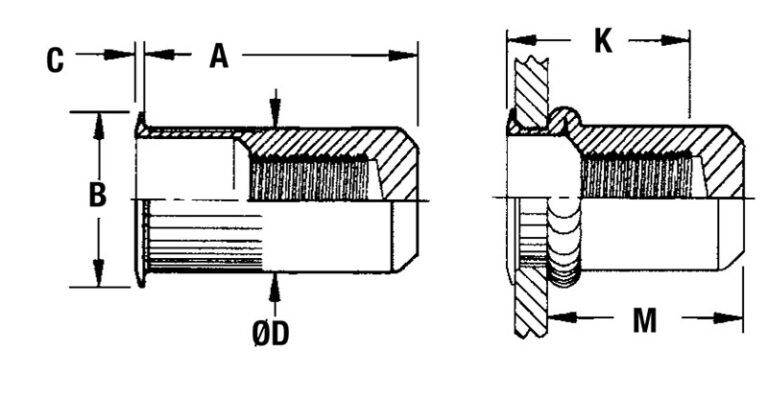

- A ± 0.38_mm
- 30.23mm
- B ± 0.38_mm
- 11.56mm
- C Nom._mm
- 0.55mm
- Hole Size in Sheet + 0.15_mm
- 10.00mm
- K Min._mm
- 17.50mm
- øD Max._mm
- 9.91mm
