AELS8-610-6.6 B
Low profile head – Closed End
AELS8-610-6.6 B
Low profile head – Closed End
- Feature a large diameter, low-profile head and knurled shank.
- Offers highest all around strength.
Specifications
- Thread Size
- M6 x 1
- Thread Specification
- 6H per ASME B1.13M
- Fastener Material
- Carbon Steel
- Standard Material
- Low Carbon Steel
- Standard Finish
- RoHS Compliant Zinc Yellow Plus Lubricant, Zinc plus Yellow Chromate + Lubricant
- Product Category
- Low profile head – Closed End
- CAD Supplier
- PennEngineering® (Atlas®)
- CADPartID
- 102733
- Fastening
- Uninstalled
- ATLAS products Grip Range
- 4.20mm, 4.20mm – 6.60mm, 6.60mm
- Base Panel Material
- Aluminum, Brass, Copper, Hard Steel, Stainless Steel, Steel
- Brand
- ATLAS
- Fastener Characteristics
- Threaded Internal
- Installation Equipment/Method
- Hand Tools
- Product Type
- Blind Threaded Inserts
- Technology Type
- Riveting
- Unit (Metric/Unified)
- Metric

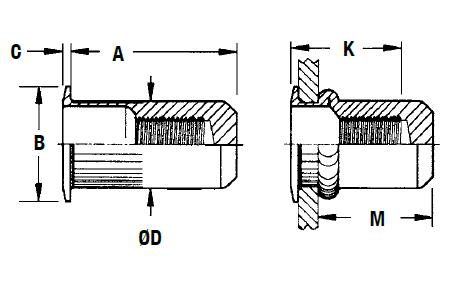

- A ± 0.38_mm
- 30.23mm
- B ± 0.38_mm
- 12.70mm
- C Nom._mm
- 0.76mm
- Hole Size in Sheet + 0.15_mm
- 10.00mm
- K Min._mm
- 17.50mm
- M Ref._mm
- 22.99mm
- øD Max._mm
- 9.91mm
