BPC1.2-541-30

Stainless Steel VariMount® Base Plate

BPC1.2-541-30

Stainless Steel VariMount® Base Plate

The PEM® VariMount® fastening system eliminates issues associated with welding. The assembly is comprised of a standard PEM® nut, stud or standoff mounted permanently into a base plate. The assembly can then be fastened or bonded to assorted panel types in a variety of ways.

VariMount® assemblies are available with either steel or stainless steel base plates depending on the fastener that is selected. The VariMount® base plate’s radial holes provide various mounting options. Base plates can also be purchased separately.

Specifications

Base Plate Material
300 Series Stainless Steel
Material Finish
Passivated and/or tested per ASTM A380
Product Category
Stainless Steel VariMount® Base Plate
CAD Supplier
PennEngineering® (PEM®)
CADPartID
112049
Thread Type
VM
Application Type
Industrial
Base Panel Material
Plastic
Brand
PEM
Industry
Industrial & Commercial
Product Type
Other Fasteners
Technology Type
Bonding Fasteners

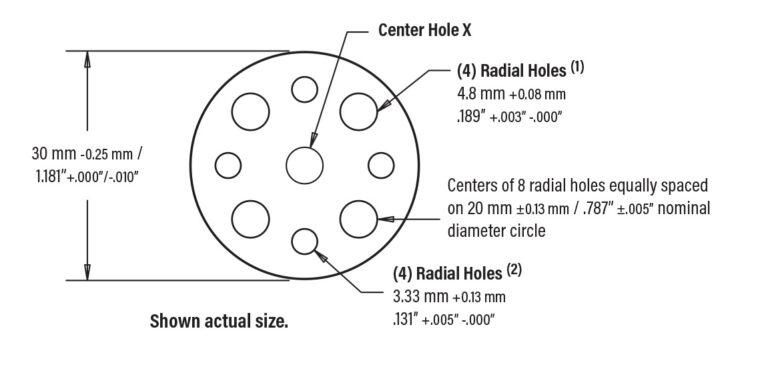

Center Hole X Diameter +.003″ -.000″ / +0.08 mm_in
.213in
Center Hole X Diameter +.003″ -.000″ / +0.08 mm_mm
5.41mm
Outside Diameter +.000” -.010” / -0.25 mm_in
1.181in
Outside Diameter +.000” -.010” / -0.25 mm_mm
30mm
Radial Holes 1 Dia +.003″ -.000″ / +0.08 mm_in
.189in
Radial Holes 1 Dia +.003″ -.000″ / +0.08 mm_mm
4.8mm
Radial Holes 2 Dia +.005″ -.000″ / +0.13 mm_in
.131in
Radial Holes 2 Dia +.005″ -.000″ / +0.13 mm_mm
3.33mm
Thickness ±.004″ / ±0.1 mm_in
.048in
Thickness ±.004″ / ±0.1 mm_mm
1.2mm
