DSO-M3-6.35ZI

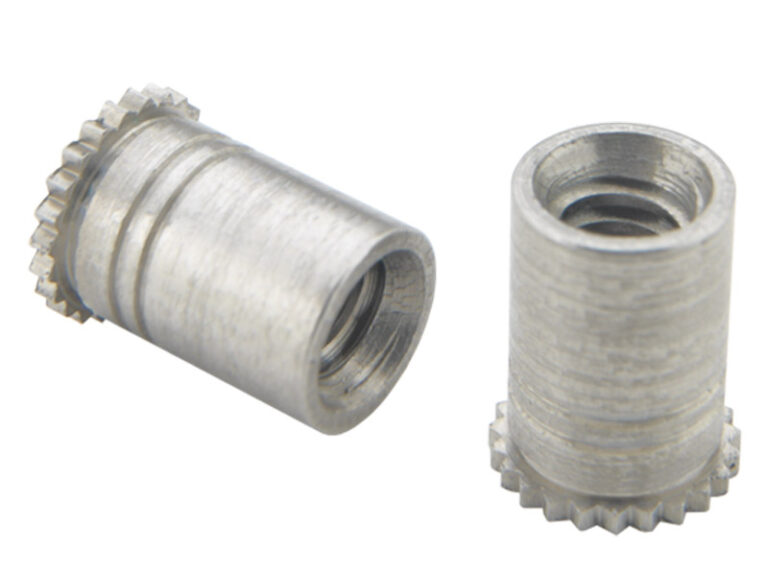

Threaded Standoffs for Close-To-Edge Applications – Types DSO, DSOS
DSO-M3-6.35ZI
Threaded Standoffs for Close-To-Edge Applications – Types DSO, DSOS
These standoffs, which use the proven self-clinching design, install with a squeeze in properly sized round holes – and become permanently mounted in the thin sheet.
Types DSO and DSOS standoffs are available for close-to-edge applications.
If you require a standoff which we do not offer in this bulletin, please contact us. We will be happy to work with you to satisfy your special need.
Available in other lengths on special order.
Specifications
- Thread Code
- M3
- Thread Size
- M3 x 0.5
- Thread Specification
- 6H, ANSI/ASME B1.13M, Internal
- Fastener Material
- Carbon Steel, Heat-Treated Carbon Steel
- Standard Finish
- colorless, SC1 (5µm), Type III, Zinc plated per ASTM B633, Zinc plus Clear Chromate
- For Use in Sheet Hardness
- HRB 80 / HB 150 or less
- Length Code
- 6.35
- Product Category
- Threaded Standoffs for Close-To-Edge Applications – Types DSO, DSOS
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 103735
- Application Type
- Aerospace, Automotive, Automotive Electronics, Commercial Vehicles, Datacom, Electric Vehicle Chargers, Electric Vehicles, Electronics, Industrial, Manufacturing & Sheet Metal Fabrication, Marine, Medical, Renewable Energy, Telecom
- Base Panel Material
- Aluminum, Steel
- Brand
- PEM
- Fastener Characteristics
- Close To Edge, Threaded Internal
- Industry
- Automotive Electronics, Datacom & Telecom, Electic Vehicles, Industrial & Commercial, Medical
- Installation Equipment/Method
- C-Frame Automatic Feed, C-Frame Manual Feed
- PEM Product Family
- SO
- Product Type
- Standoffs
- Technology Type
- Self-Clinching
- Unit (Metric/Unified)
- Metric

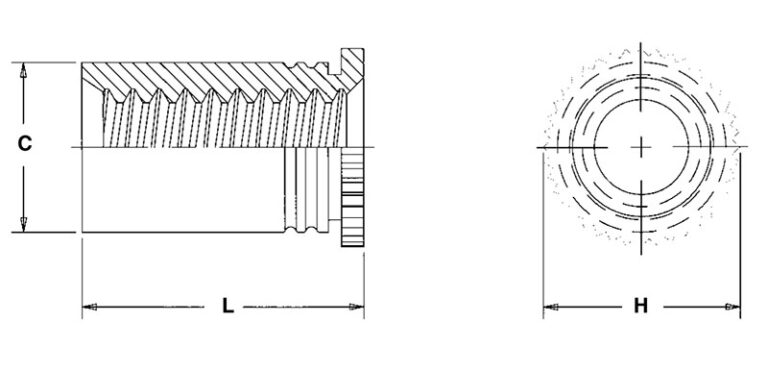

- H Nom._mm
- 4.92mm
- Hole Size in Sheet + 0.08_mm
- 4.22mm
- L + 0.05 -0.13_mm
- 6.35mm
- Min. Dist. Hole C/L to Edge_mm
- 3.20mm
- C Max._mm
- 4.2mm
- Sheet Thickness
- 0.94 to 6.35
Resources
Installation & Performance Data
| TYPE | THREAD CODE | MAX. REC. TIGHTENING TORQUE FOR MATING SCREW (in. lbs.) | TEST SHEET MATERIAL | INSTALLATION (kN) | PUSHOUT (N) | TORQUE-OUT (N-m) | PULL-THRU (N) |
|---|---|---|---|---|---|---|---|
| DSOS, DSO | M3 | 0.44 | 1 mm 5052-H34 Aluminum | 3.1 | 223 | 1.1 | 1422 |
| DSOS, DSO | M3 | 0.44 | 1 mm Cold-rolled Steel | 4.9 | 334 | 1.1 | 1587 |
