HSCB-M3-3ZI

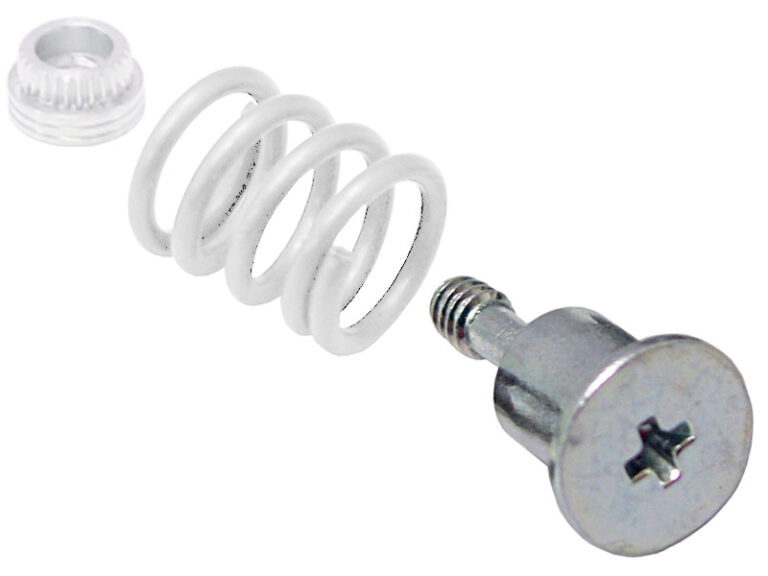

HSCB™ Self Captivating Screw

HSCB-M3-3ZI

HSCB™ Self Captivating Screw

  • Low cost design.
  • Small, compact and low profile design for limited access areas.
  • Two screw lengths.
  • Universal slot/Phillips recess standard.

Specifications

Thread Code
M3
Thread Size
M3 x 0.5
Thread Specification
6g, External ASME B1.13M
Screw Length Code
3
Fastener Material
Carbon Steel
Material
Hardened Carbon Steel
For Use in Sheet Hardness
HRB 80 or Less (Hardness Rockwell “B” Scale)
HB 150 or Less (Hardness Brinell)
Driver Size
#1 Phillips
Product Category
HSCB™ Self Captivating Screw
CAD Supplier
PennEngineering® (PEM®)
Cad View
Unfastened
CADPartID
108053
Thread Type
HSCB
Application Type
Automotive Electronics, Datacom, Electric Vehicle Chargers, Telecom
Base Panel Material
Aluminum, Steel
Brand
PEM
Fastener Characteristics
Threaded External
Finish Type
colorless, SC1 (5µm), Type III, Zinc plated per ASTM B633
Industry
Automotive Electronics, Datacom & Telecom, Industrial & Commercial, Medical
Installation Equipment/Method
C-Frame Manual Feed
PEM Product Family
PF
Product Type
Panel Fasteners
Technology Type
Self-retaining
Unit (Metric/Unified)
Metric

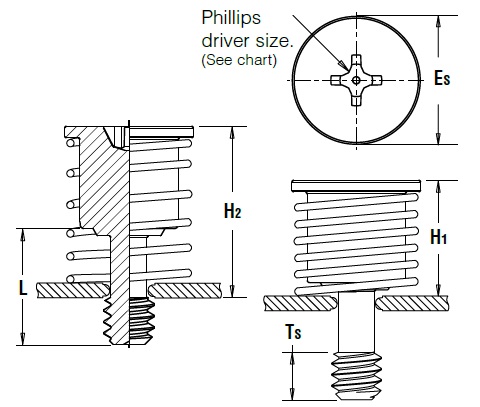

Es ± 0.25_mm
8.18mm
H1 Ref._mm
7.67mm
H2 Ref._mm
12.00mm
Hole Size in Sheet + 0.08_mm
3mm
L ± 0.4_mm
8.13mm
Min. Dist. Hole C/L to Edge_mm
4.13mm
Min. Sheet Thickness_mm
1.00mm
Ts Min._mm
3.30mm
