HSR-632-3-ET

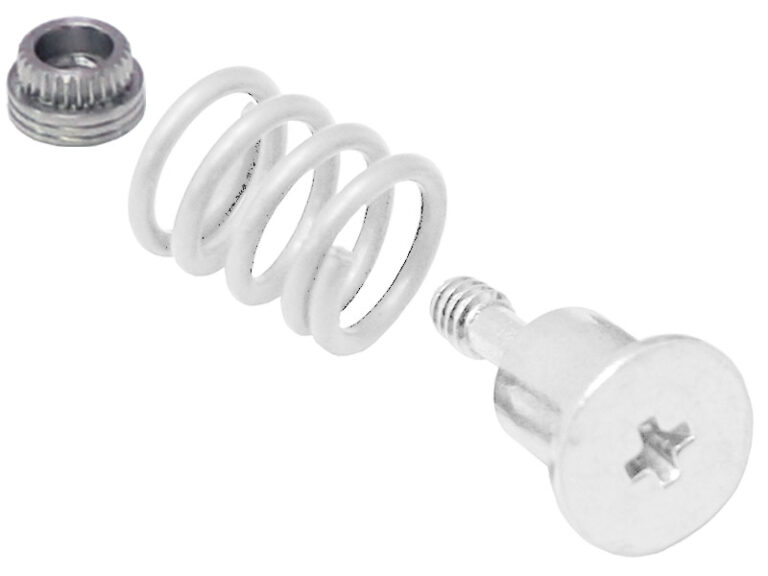

HSR™ Broaching Nut / Standoff
HSR-632-3-ET
HSR™ Broaching Nut / Standoff
Specifications
- Thread Code
- 632
- Thread Size
- #6-32
- Thread Specification
- 2B, ASME B1.1, Internal
- Fastener Material
- Carbon Steel
- Material
- Carbon Steel
- For Use in Sheet Hardness
- HRB 60 or Less (Hardness Rockwell “B” Scale)
HB 107 or Less (Hardness Brinell) - Product Category
- HSR™ Broaching Nut / Standoff
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 108054
- Application Type
- Automotive Electronics, Datacom, Electric Vehicle Chargers, Telecom
- Base Panel Material
- PC Board
- Brand
- PEM
- Fastener Characteristics
- Threaded Internal
- Finish Type
- Annealed, ASTM B545, Class B with Clear Preservative Coating, Electro-Plated Tin
- Industry
- Automotive Electronics, Datacom & Telecom, Industrial & Commercial, Medical
- Installation Equipment/Method
- C-Frame Manual Feed
- PEM Product Family
- PF
- Product Type
- Standoffs
- Technology Type
- Broaching
- Unit (Metric/Unified)
- Unified

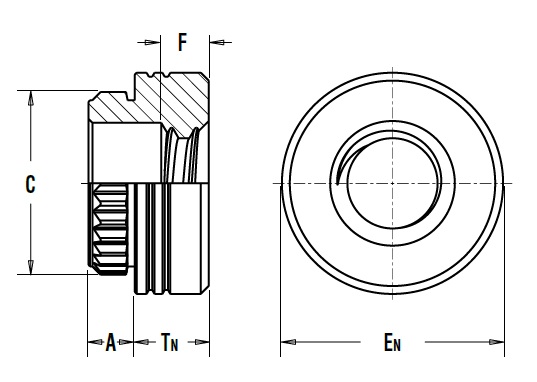

- A Shank Max
- .060in
- C ± .003_in
- .231in
- EN ± .005_in
- .281in
- F ± .010_in
- .060in
- Hole Size in Sheet + .003 – .000_in
- .213in
- Min. Dist. Hole C/L to Edge_in
- .22in
- Min. Sheet Thickness_in
- .060in
- TN ± .005_in
- .093in
