HSR-M3-3-ET

HSR™ Broaching Nut / Standoff

HSR-M3-3-ET

HSR™ Broaching Nut / Standoff

Specifications

Thread Code
M3
Thread Size
M3 x 0.5
Thread Specification
6H, ASME B1.13M, Internal
Fastener Material
Carbon Steel
Material
Carbon Steel
For Use in Sheet Hardness
HRB 60 or Less (Hardness Rockwell “B” Scale)
HB 107 or Less (Hardness Brinell)
Product Category
HSR™ Broaching Nut / Standoff
CAD Supplier
PennEngineering® (PEM®)
CADPartID
108055
Application Type
Automotive Electronics, Datacom, Electric Vehicle Chargers, Telecom
Base Panel Material
PC Board
Brand
PEM
Fastener Characteristics
Threaded Internal
Finish Type
Annealed, ASTM B545, Class B with Clear Preservative Coating, Electro-Plated Tin
Industry
Automotive Electronics, Datacom & Telecom, Industrial & Commercial, Medical
Installation Equipment/Method
C-Frame Manual Feed
PEM Product Family
PF
Product Type
Standoffs
Technology Type
Broaching
Unit (Metric/Unified)
Metric

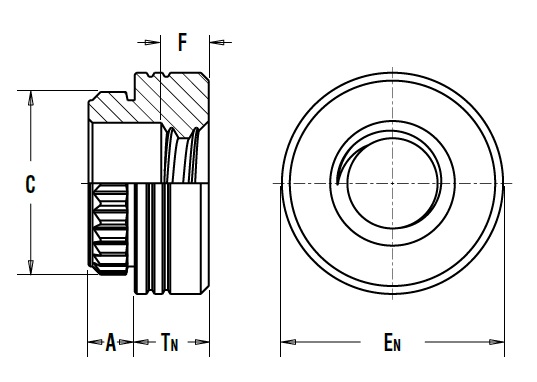

A Shank Max
1.53mm
C ± 0.08_mm
4.68mm
EN ± 0.13_mm
5.56mm
F ± 0.25_mm
1.30mm
Hole Size in Sheet + 0.08_mm
4.22mm
Min. Dist. Hole C/L to Edge_mm
4.40mm
Min. Sheet Thickness_mm
1.53mm
TN ± 0.13_mm
3.00mm
