IUTC-632-150
Heat Staking Insert, Straight Wall, Thru-Threaded
IUTC-632-150
Heat Staking Insert, Straight Wall, Thru-Threaded
- Designed for use in straight holes.
- Self-aligning lead-in of insert provides for accurate alignment prior to installation.
- Aluminum inserts ideal for light weight designs.
- Aluminum and stainless steel inserts offer lead-free alternative.
Specifications
- Thread Code
- 632
- Thread Size
- #6-32
- Thread Specification
- 2B per ASME B1.1
- Standard Material
- 300 Series Stainless Steel
- Standard Finish
- Passivated and/or tested per ASTM A380
- Product Category
- Heat Staking/Ultrasonic Insert, Straight Wall, Thru-Threaded
- CAD Supplier
- PennEngineering® (SI®)
- CADPartID
- 103791
- Thread Type
- IUTC
- Base Panel Material
- Plastic
- Brand
- SI
- Fastener Characteristics
- Threaded Internal
- Installation Equipment/Method
- Heat Staking/Ultrasonic
- Product Type
- Inserts
- Technology Type
- Inserts for Plastics

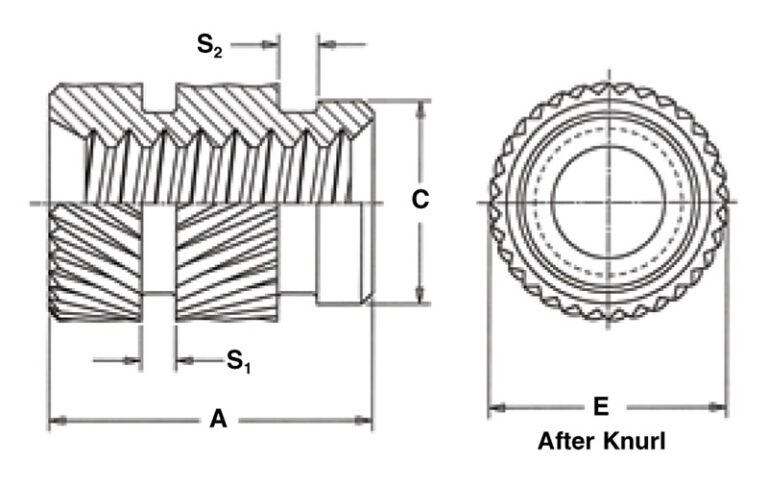

- A ± .005_in
- .150in
- C ± .005_in
- .183in
- E ± .009_in
- .210in
- Hole Dia. + .003 -.000_in
- .189in
- Min. Hole Depth_in
- .180in
- S1 Nom._in
- .031in
- S2 Nom._in
- .031in
