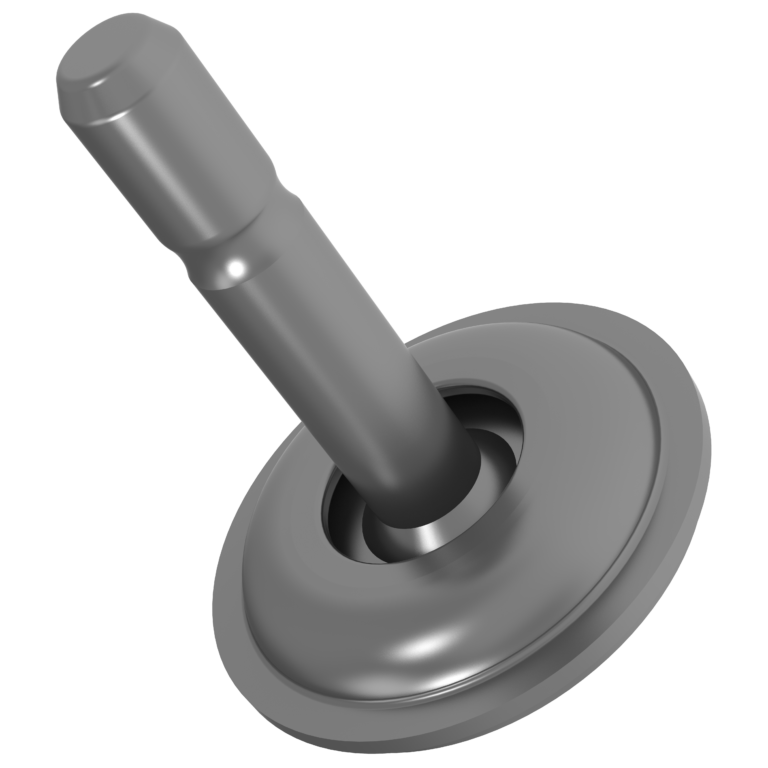

MRHPS-1.2MM-600
Grooved Pin
MRHPS-1.2MM-600
Grooved Pin
PEM® GHOST™ magnetic release fastening technology is ideal for achieving tight security and sleek aesthetics. This new PEM® capability produces a fully concealed fastener with zero visible evidence of position or disassembly method once engaged.
The GHOST™ fastener may not be purchased for use in consumer electronics products. Please contact us if you have any questions.

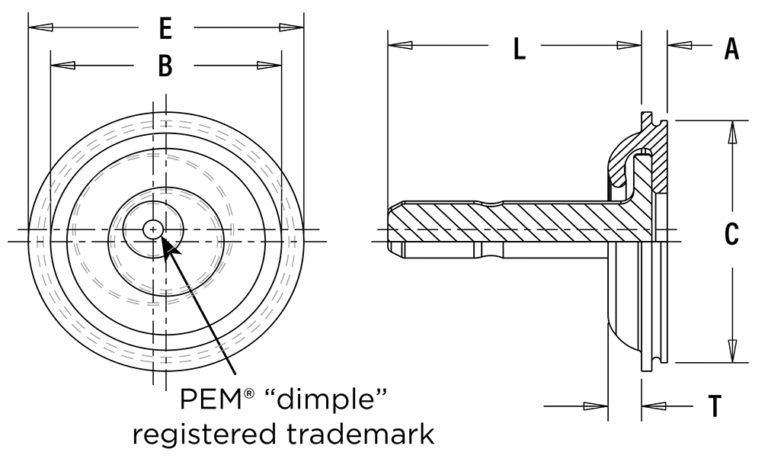

Specifications
- Length Code
- 500
- Type
- MRHPS
- B Max.
- .183″ / 4.65mm
- Blind Mounting Hole Dia. +.003″ -.000″ / +0.08mm
- 0.201″ / 5.11mm
- C Max.
- .200″ / 5.1mm
- E Nom.
- .214″ / 5.44mm
- G Air Gap (3) MRPS: +.015” -.007” / +0.38 -0.18mm MRHPS: ±.004” / ±0.10mm
- 0.226″ / 5.75mm
- L Length Nom.
- .226″ / 5.72mm
- Min. Depth of Blind Hole
- .023″ / 0.59mm
- Min. Dist. Hole C/L to Edge
- .142″ / 3.6mm
- Min. Sheet Thickness
- .071″ / 1.8mm
- PEM Product Family
- MRF
- Product Type
- Other Fasteners
- T Max.
- .029″ / 0.74mm
- Technology Type
- Self-Clinching
- A (Shank) Max.
- .022″ / 0.56mm
- Pin Dia. Code
- 1.2MM
Installation & Performance Data
| SELF-CLINCHING DATA | ||||
|---|---|---|---|---|
| FLOATING PIN TYPE | PIN DIAMETER FIT CODE/CODE | TEST SHEET MATERIAL | INSTALLATION (1) | PULLOUT |
| MRFS | 1.2 | .061”/1.56mm 5052-H34 Aluminum | 450 lbs. / 2 kN | 39.5 lbs / 175 N |
| MRPS | 1.2MM | .061”/1.56mm 5052-H34 Aluminum | 450 lbs. / 2 kN | 39.5 lbs / 175 N |
| MRHPS | 1.2MM | .061”/1.56mm 5052-H34 Aluminum | 450 lbs. / 2 kN | 39.5 lbs / 175 N |
| FASTENING DATA | ||||
| RETAINER TYPE | PIN TYPE | PIN DIAMETER CODE | PULL-APART (2) | |
| MRFS | MRPS | 1.2MM | 29 lbs. / 129 N | |
| MRFS | MRHPS | 1.2MM | 32 lbs. / 142 N | |
| (1) Installation force values shown will provide optimal fastener performance. Installation force as low as 400lbs./1.78kN may help the side of the sheet opposite installation remain smooth. Separate validation is recommended when deviating from the specification shown. | ||||
| (2) Loading curves show average deflection profile under load for each pin type. Pull-apart performance values represent the force required to pull the fastened components completely apart. |
| SELF-CLINCHING DATA | ||||
|---|---|---|---|---|
| FLOATING PIN TYPE | PIN DIAMETER FIT CODE/CODE | TEST SHEET MATERIAL | INSTALLATION (1) | PULLOUT |
| MRFS | 1.2 | .061”/1.56mm 5052-H34 Aluminum | 450 lbs. / 2 kN | 39.5 lbs / 175 N |
| MRPS | 1.2MM | .061”/1.56mm 5052-H34 Aluminum | 450 lbs. / 2 kN | 39.5 lbs / 175 N |
| MRHPS | 1.2MM | .061”/1.56mm 5052-H34 Aluminum | 450 lbs. / 2 kN | 39.5 lbs / 175 N |
| FASTENING DATA | ||||
| RETAINER TYPE | PIN TYPE | PIN DIAMETER CODE | PULL-APART (2) | |
| MRFS | MRPS | 1.2MM | 29 lbs. / 129 N | |
| MRFS | MRHPS | 1.2MM | 32 lbs. / 142 N | |
| (1) Installation force values shown will provide optimal fastener performance. Installation force as low as 400lbs./1.78kN may help the side of the sheet opposite installation remain smooth. Separate validation is recommended when deviating from the specification shown. | ||||
| (2) Loading curves show average deflection profile under load for each pin type. Pull-apart performance values represent the force required to pull the fastened components completely apart. |
