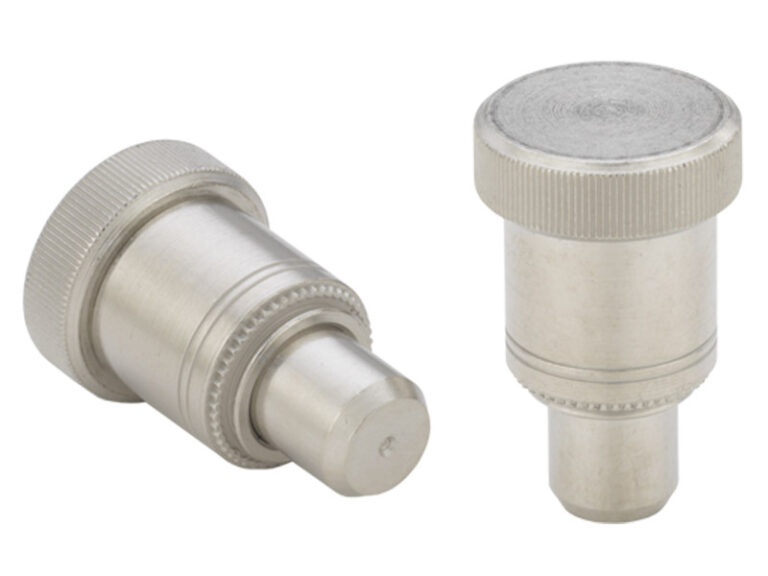

PSL2-04-4CN

Locating Pin, Spring-loaded – Types PSL2, PTL2

Specifications

Material Plunger
Heat-treated Carbon Steel
Material Retainer
Heat-Treated Carbon Steel
Material Spring
300 Series Stainless Steel
Finish Plunger
Bright nickel over copper flash per ASTM B689
Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Finish Spring
Natural Finish
For Use in Sheet Hardness
HRB 80 or Less (Hardness Rockwell “B” Scale) / HB 150 or Less (Hardness Brinell)
Product Category
Locating Pin, Spring-loaded – Types PSL2, PTL2
CAD Supplier
PennEngineering® (PEM®)
Cad View
Unfastened
CADPartID
103770, 103771
Thread Type
PSL2
Application Type
Datacom, Industrial, Telecom
Base Panel Material
Aluminum, Steel
Brand
PEM
Fastener Characteristics
Unthreaded
Industry
Datacom & Telecom, Industrial & Commercial
Installation Equipment/Method
C-Frame Manual Feed
Product Type
Panel Fasteners
Technology Type
Self-Clinching

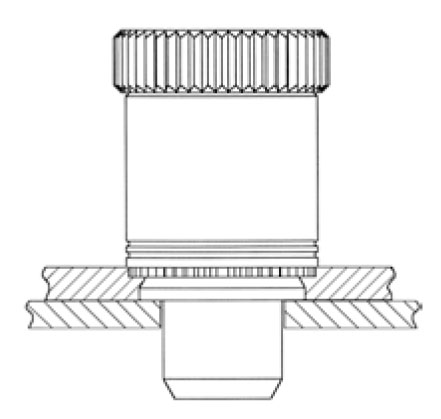

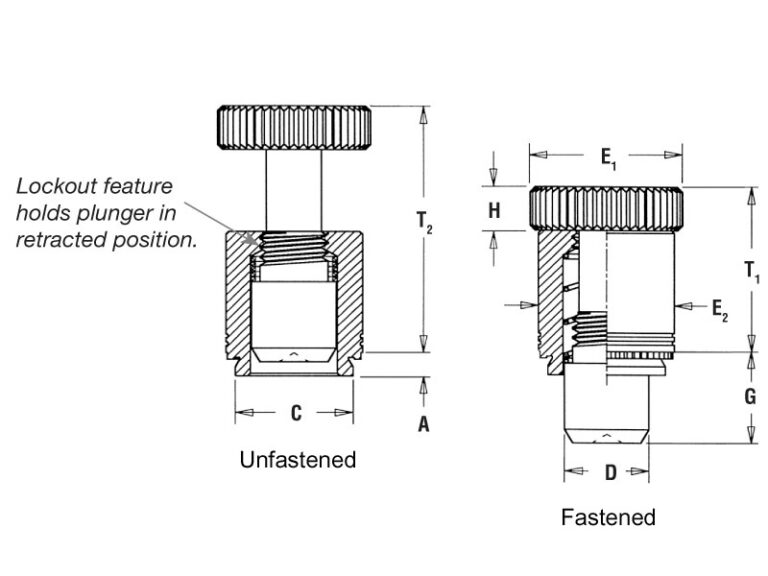

A Shank Max
.058in
D – 0.13_mm
6.35mm
D + .000 – .005_in
.250in
E1 ± .010_in
.500in
E1 ± 0.25_mm
12.70mm
E2 ± .010_in
.406in
E2 ± 0.25_mm
10.30mm
G ± .010_in
.310in
G ± 0.25_mm
7.87mm
H Plus Minus 025 Mm
4.32mm
H ± .010_in
.170in
Hole Size in Sheet + .003 – .000_in
.328in
Hole Size in Sheet + 0.08_mm
8.33mm
Min. Dist. Hole C/L to Edge_in
.34in
Min. Dist. Hole C/L to Edge_mm
8.64mm
Min. Sheet Thickness_in
.060in
Min. Sheet Thickness_mm
1.53mm
C Max._in
.327in
C Max._mm
8.31mm
Plunger Diameter Code
04
Plunger Length Code
4
T1 ± .010_in
.510in
T1 ± 0.25_mm
12.95mm
T2 Nom._in
.780in
T2 Nom._mm
19.81mm
TR ± .005_in
.350in
TR ± 0.13_mm
8.89mm
