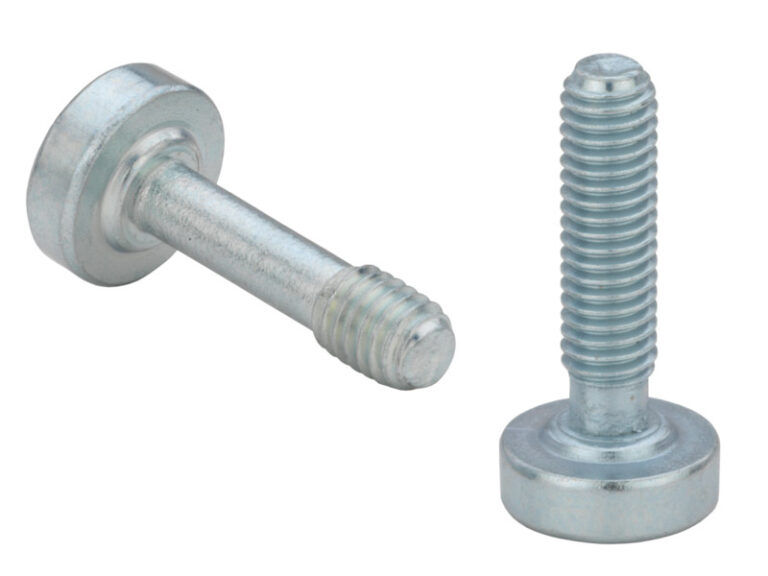

SCBJ-M4-6ZI

Captive Panel Screw-Tool only, Spinning Clinch Bolt, No Spring – Type SCBJ

SCBJ-M4-6ZI

Captive Panel Screw-Tool only, Spinning Clinch Bolt, No Spring – Type SCBJ

Specifications

Thread Code
M4
Thread Size
M4 x 0.7
Thread Size X Pitch
M4 x 0.7
Thread Specification
6g, ANSI/ASME B1.13M
Screw Length Code
6
Fastener Material
Carbon Steel
Material
Heat-Treated Carbon Steel
Finish Spring
Natural Finish
For Use in Sheet Hardness
HRB 80 or Less (Hardness Rockwell “B” Scale) / HB 150 or Less (Hardness Brinell)
Driver Size
#2 Phillips
Product Category
Captive Panel Screw-Tool only, Spinning Clinch Bolt, No Spring – Type SCBJ
CAD Supplier
PennEngineering® (PEM®)
CADPartID
103761
Thread Type
Jacking, SCBJ
Application Type
Datacom, Telecom
Base Panel Material
Aluminum, Steel
Brand
PEM
Fastener Characteristics
Threaded External
Finish Type
colorless, SC1 (5µm), Type III, Zinc plated per ASTM B633
Industry
Datacom & Telecom
Installation Equipment/Method
C-Frame Manual Feed
PEM Product Family
PF
Product Type
Panel Fasteners
Technology Type
Self-Clinching
Unit (Metric/Unified)
Metric
E ± 0.25_mm
8.28mm
H Nom._mm
2.03mm
Hole Size in Sheet + 0.08_mm
4mm
L Len Pm 015in Or 4mm
6mm
Min. Dist. Hole C/L to Edge_mm
5.00mm
Min. Sheet Thickness_mm
1.02mm
T Nom._mm
3.70mm
