SOSG-3.5M3-8

Grounding Standoffs – Types SOSG, SOAG

SOSG-3.5M3-8

Grounding Standoffs – Types SOSG, SOAG

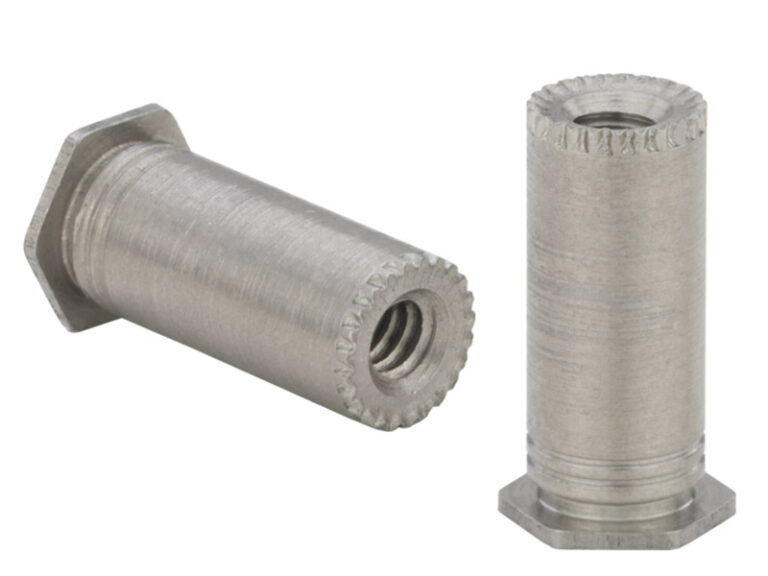

These standoffs, which use the proven self-clinching design, install with a squeeze in properly sized round holes – and become permanently mounted in the thin sheet.

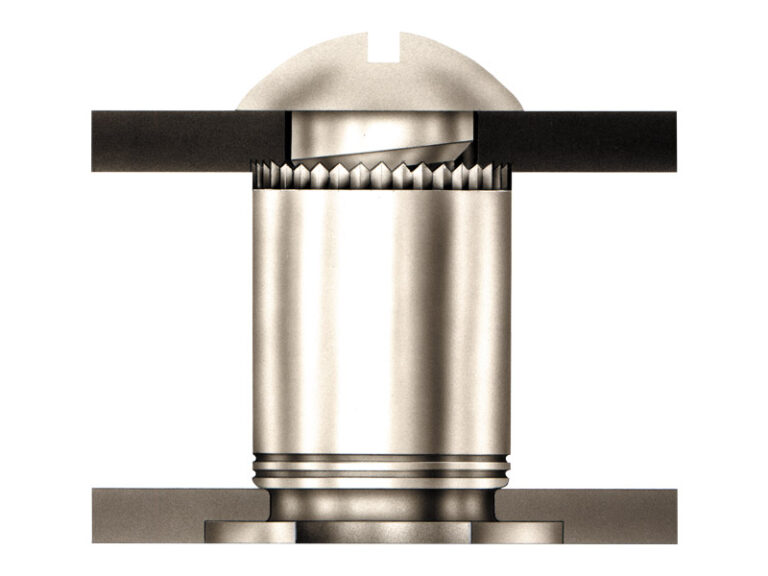

Types SOAG and SOSG grounding standoffs are designed for clinching into steel or aluminum chassis while the “gripping teeth” on the opposite end of the standoff firmly contact mating PC board.

If you require a standoff which we do not offer in this bulletin, please contact us. We will be happy to work with you to satisfy your special need.

For special lengths greater than 12mm, Types SOSG and SOAG are blind threaded.

Specifications

Thread Code
3.5M3
Thread Size
M3 x 0.5
Thread Size X Pitch
M3 x 0.5
Thread Specification
6H, ANSI/ASME B1.13M, Internal
Fastener Material
300 Series Stainless Steel
Standard Finish
Passivated and/or tested, Passivated and/or tested per ASTM A380
For Use in Sheet Hardness
HRB 70 / HB 125 or Less
Anvil Hole Diameter + 0.08_mm
5.50mm
Length Code
8
Product Category
Grounding Standoffs – Types SOSG, SOAG
CAD Supplier
PennEngineering® (PEM®)
CADPartID
103737
Application Type
Automotive Electronics, Datacom, Electric Vehicle Chargers, Telecom
Base Panel Material
Aluminum, Steel
Brand
PEM
Fastener Characteristics
Threaded Internal
Industry
Automotive Electronics, Datacom & Telecom, Industrial & Commercial
Installation Equipment/Method
C-Frame Manual Feed
PEM Product Family
SO
Product Type
Standoffs
Technology Type
Self-Clinching
Unit (Metric/Unified)
Metric

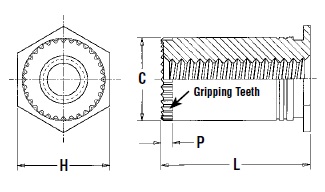

C – 0.13_mm
5.39mm
H Plus Minus 025 Mm
6.4mm
Hole Size in Sheet + 0.08_mm
5.40mm
L Length 010 000in Or 025mm
8mm
Min. Dist. Hole C/L to Edge_mm
6.8mm
Min. Sheet Thickness_mm
1mm
P Nom._mm
0.76mm

Resources

Installation & Performance Data

so-sosg-soag-standoffs-metric
TYPE THREAD CODE TEST SHEET THICKNESS AND TEST SHEET MATERIAL INSTALLATION (kN) PUSHOUT (N) TORQUE-OUT (N-m) PULL-THRU (N)
SOSG, SOAG 3.5M3 1.6 mm 5052-H34 Aluminum 7.6 1330 2.82 825
