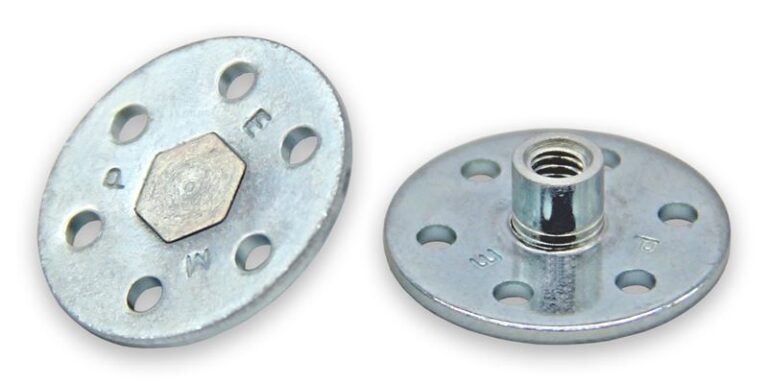

VM20BSO-M3-18ZI

Steel Standoff with Base Plate

VM20BSO-M3-18ZI

Steel Standoff with Base Plate

The PEM® VariMount® fastening system eliminates issues associated with welding. The assembly is comprised of a standard PEM® nut, stud or standoff mounted permanently into a base plate. The assembly can then be fastened or bonded to assorted panel types in a variety of ways.

VariMount® assemblies are available with either steel or stainless steel base plates depending on the fastener that is selected. The VariMount® base plate’s radial holes provide various mounting options. Base plates can also be purchased separately.

Specifications

Thread Code
M3
Thread Size
M3 x 0.5
Base Plate Material
Steel
Fastener Material
Carbon Steel, Steel
Material Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Product Category
Steel Standoff with Base Plate
CAD Supplier
PennEngineering® (PEM®)
CADPartID
112045
Thread Type
VM
Application Type
Industrial
Base Panel Material
Plastic
Brand
PEM
Fastener Characteristics
Threaded Internal
Industry
Industrial & Commercial
Installation Equipment/Method
Other
Product Type
Standoffs
Technology Type
Bonding Fasteners
Unit (Metric/Unified)
Metric
BPD ± 0.42_mm
20mm
BPT ± 0.1_mm
1.2mm
C -0.13_mm
4.2mm
L +0.05 -0.13_mm
18mm
