Slotted Body Rivet Nuts

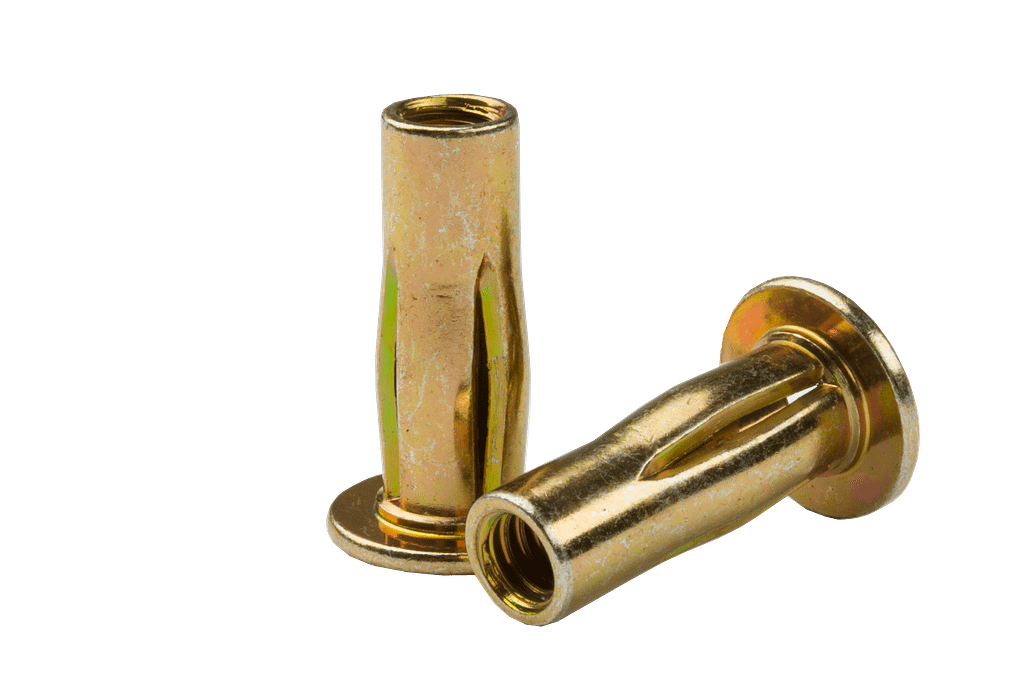

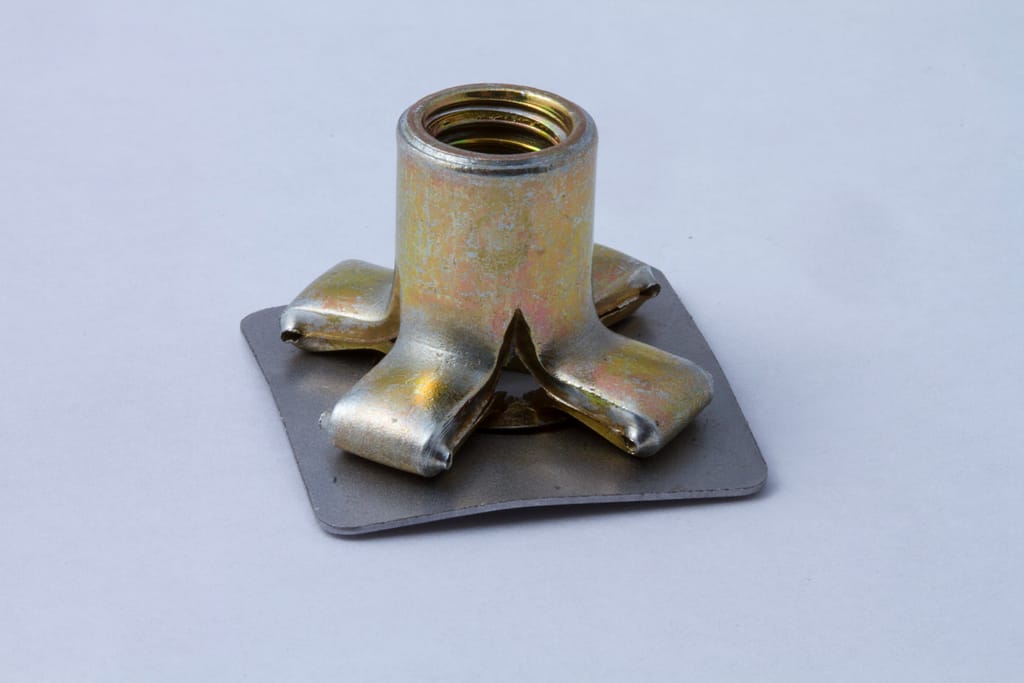

Sherex® by PEM® slotted body rivet nuts are engineered for installation in thin, soft, or deformable sheet materials where standard round body designs may not achieve adequate grip or pull-out resistance. The slotted body geometry creates a distinctive folded bulge pattern during installation, maximising the contact area with the host material and delivering superior retention performance.
Slotted body rivet nuts are particularly effective in plastics, aluminium, and other lightweight materials commonly used in automotive and electronics manufacturing.
CPB and CPN style rivet nuts are oftentimes installed with spin-spin tooling.
Key Features
- Slotted body creates a wide, distributed bulge on installation for enhanced grip
- Superior pull-out and push-out resistance in soft or thin materials
- Ideal for plastics, aluminium, and composite substrates
- Available in standard round hole configuration
- Suitable for both open and sealed applications
- Thread sizes from M5 to M8 (metric) and #10-24 to 5/16"-18
- Steel and aluminium material options
- Underhead wedge and trim head options available
Typical Applications
- Automotive interior plastic panels and trim components
- Consumer electronics and appliance casings
- Thin aluminium sheet in aerospace and transportation
- Composite and fibre-reinforced polymer structures
- Any application where substrate softness limits standard rivet nut performance
Product Series

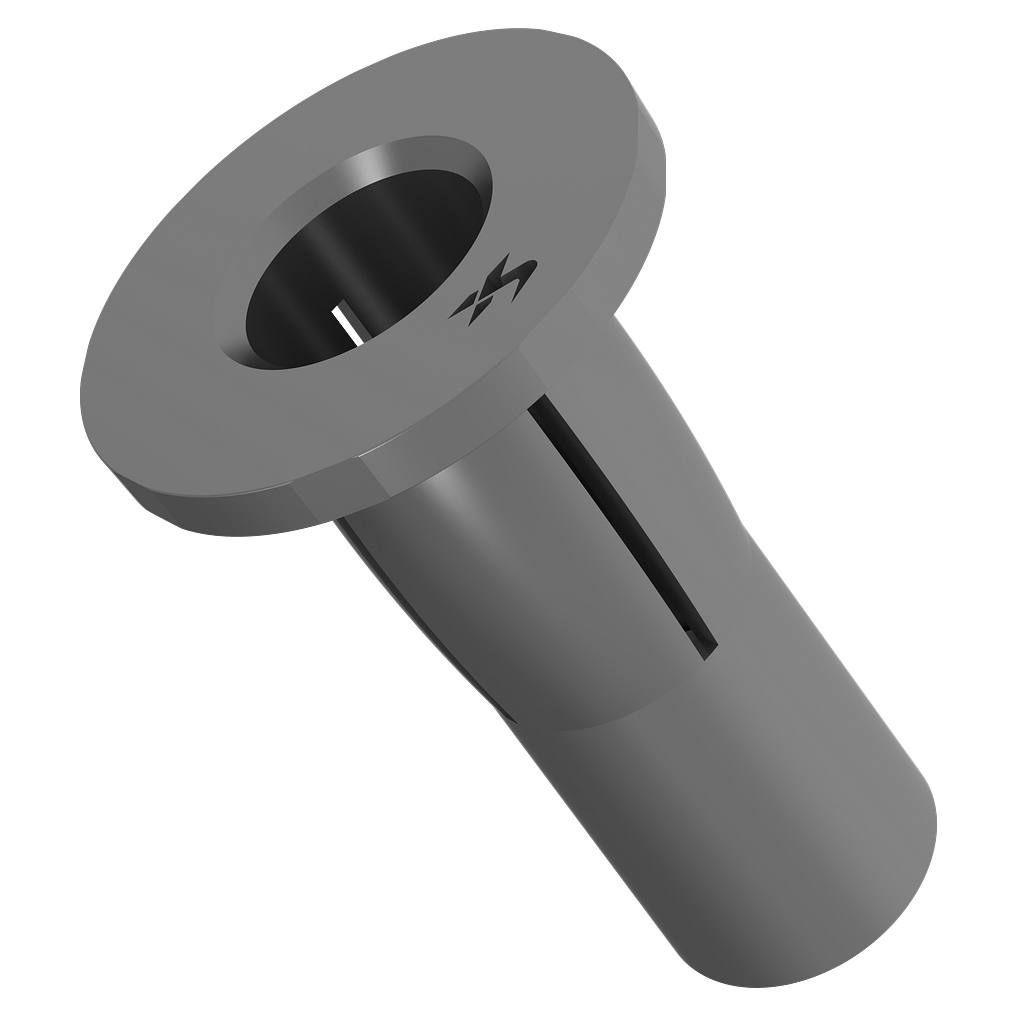

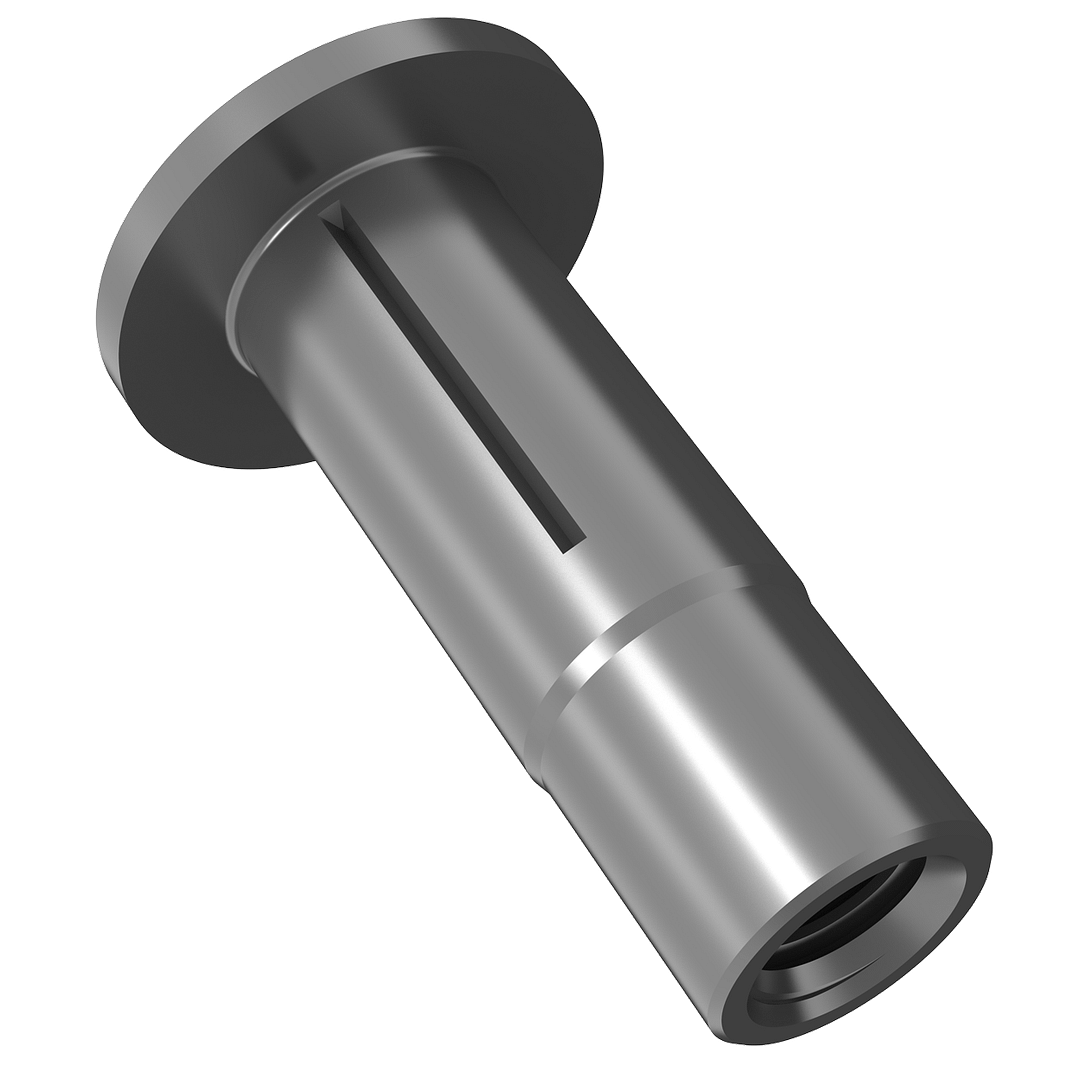

The Sherex® by PEM® slotted body range includes the CPB and CPN series, each optimised for specific material and grip range requirements. Contact the Sherex by PEM technical team for series selection guidance and dimensional specifications.
