AEA4K185

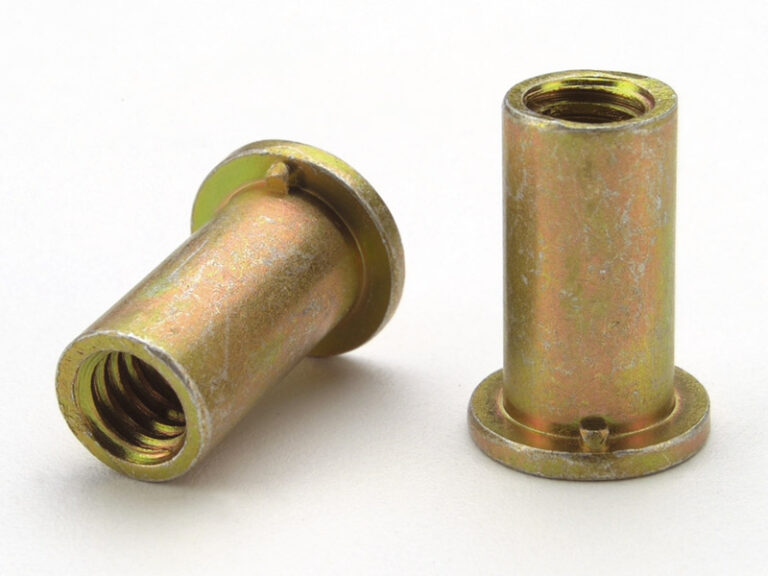

Flathead Threaded Insert – Open End Keyed
AEA4K185
Flathead Threaded Insert – Open End Keyed
- Designed for high load applications. Available with rib, key or full hex features for high torque applications.
- Both UNC and UNF threads available in No. 10 and larger thread sizes. Check for availability of other grip ranges and designs.
仕様
- ねじ径
- #4-40
- ねじの仕様
- 3B per ASME B1.1
- ファスナー材質
- Aluminum
- Standard Material
- 6053 Aluminum or 6061 Aluminum
- 表面処理
- Anodize – Clear, Anodized in accordance with MIL-A-8625, Class 1 plus lubricant, Type II
- Identification Mark
- 5 Rad.
- Weight per 1000_lb
- 1.6
- Product Category
- Flathead Threaded Insert – Open End Keyed
- CAD Supplier
- PennEngineering® (Atlas®)
- CADPartID
- 103647
- Fastening
- Installed, Uninstalled
- ATLAS products Grip Range
- 160 -.185in
- 下板の材質
- Aluminum, Brass, Copper, Hard Steel, Stainless Steel, Steel
- ブランド
- ATLAS
- ファスナーの特徴
- Threaded Internal
- 取付け用機材
- Hand Tools
- 製品
- Blind Threaded Inserts
- 技術
- Riveting
- ユニット
- Unified

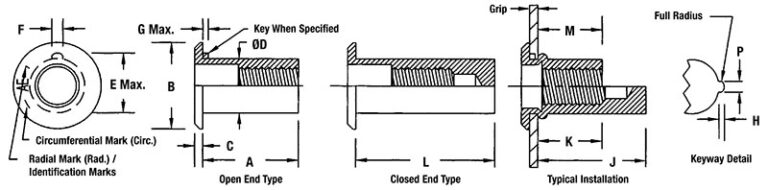

- A ± .015_in
- .480in
- B ± .015_in
- .270in
- C Nom._in
- .025in
- E Max._in
- .198in
- F + .005 -.000_in
- .054in
- G Max._in
- .023in
- H – Keyway Height_in
- .046 – .048in
- Install Drill Size Ref.
- 5/32
- Install Hole Size Max._in
- .157in
- Install Hole Size Min._in
- .155in
- M Ref._in
- .230in
- øD + .000 – .004_in
- .155in
- P – Keyway Width + .003 -.000_in
- .062in
- Pull Up Factor_in
- .055in
