SOAG-6440-4
Grounding Standoffs – Types SOSG, SOAG
SOAG-6440-4
Grounding Standoffs – Types SOSG, SOAG

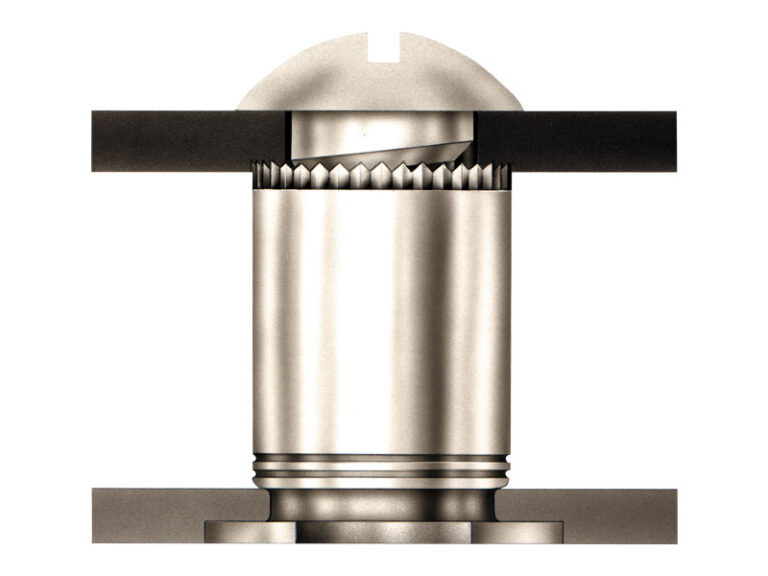

These standoffs, which use the proven self-clinching design, install with a squeeze in properly sized round holes – and become permanently mounted in the thin sheet.

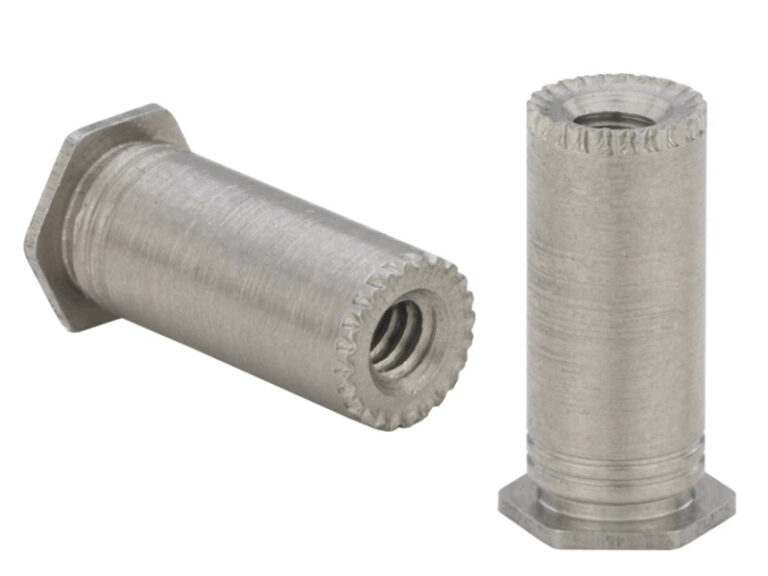

Types SOAG and SOSG grounding standoffs are designed for clinching into steel or a
仕様
- Thread Code.jp
- 6440
- ねじ径
- .112-40 (#4-40), #4-40
- ねじの仕様
- 2B, ANSI B1.1, Internal
- ファスナー材質
- Aluminum
- For Use in Sheet Hardness
- HRB 50 / HB 82 or Less
- Anvil Hole Diameter + .003 -.000_in
- .216in
- Length Code
- 4
- Product Category
- Grounding Standoffs – Types SOSG, SOAG
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 103736
- アプリケーション
- Automotive Electronics, Datacom, Electric Vehicle Chargers, Telecom
- 下板の材質
- Aluminum, Steel
- ブランド
- PEM
- ファスナーの特徴
- Threaded Internal
- 業界
- Automotive Electronics, Datacom & Telecom, Industrial & Commercial
- 取付け用機材
- C-Frame Manual Feed
- PEM®製品
- SO
- 製品
- Standoffs
- 技術
- Self-Clinching
- ユニット
- Unified

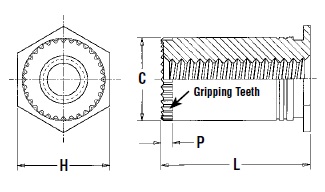

- C + .000 – .005_in
- .212in
- H ± .005_in
- .250in
- Hole Size in Sheet + .003 – .000_in
- .213in
- L – Length + .010 –.000_in
- .125in
- Min. Dist. Hole C/L to Edge_in
- .27in
- Min. Sheet Thickness_in
- .040in
- P Nom._in
- .030in
リソース
データシート
| TYPE | THREAD CODE | TEST SHEET THICKNESS AND TEST SHEET MATERIAL | INSTALLATION (lbs.) | PUSHOUT (lbs.) | TORQUE-OUT (in. lbs.) | PULL-THRU (lbs.) | |
|---|---|---|---|---|---|---|---|
| SOSG, SOAG | 6440 | .064" 5052-H34 Aluminum | 1700 | 300 | 25 | 186 |
