How It Works

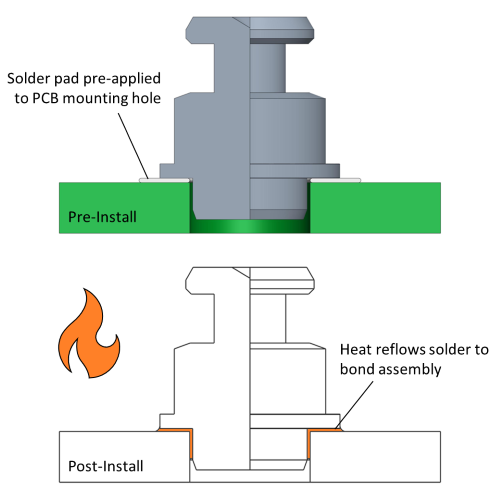

Electrical components that host a system of wires and connections on sensors and circuit boards use soldering to ensure a conductive path quickly and reliably. Solder paste is a substance that can be painted onto contact pads and wires at room temperature and is heated to cause reflow. This is where the paste turns into a molten tin-lead alloy that creates a permanent electrical connection.

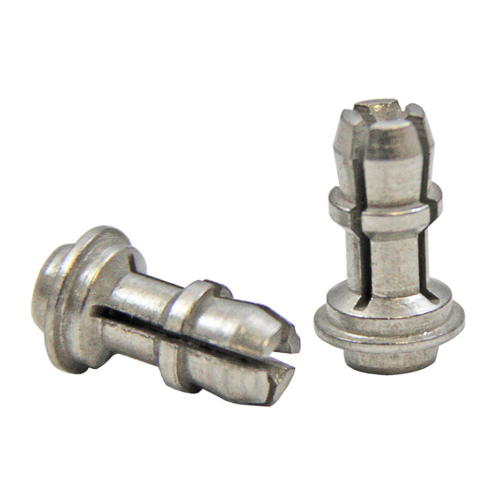

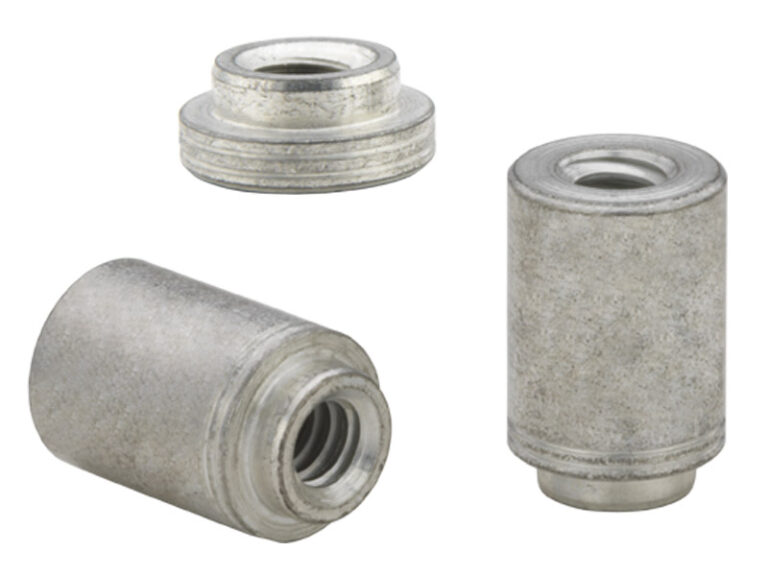

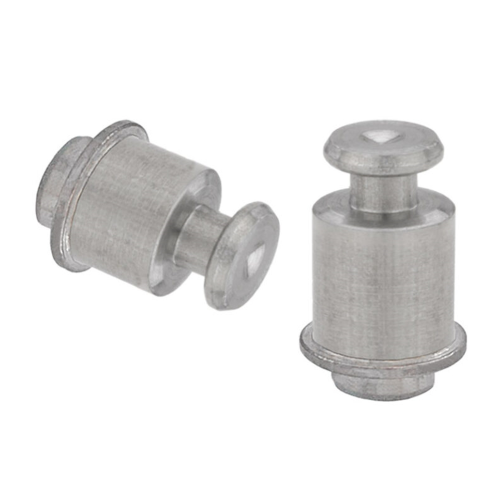

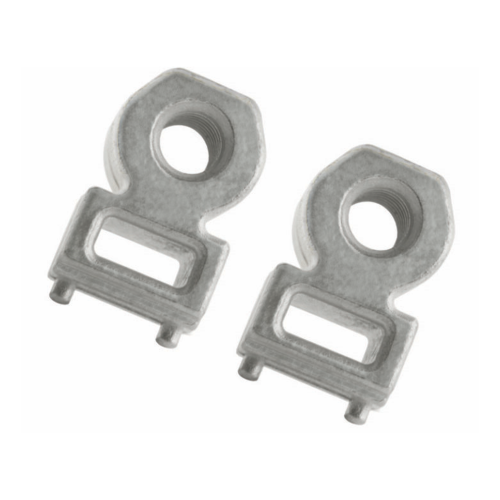

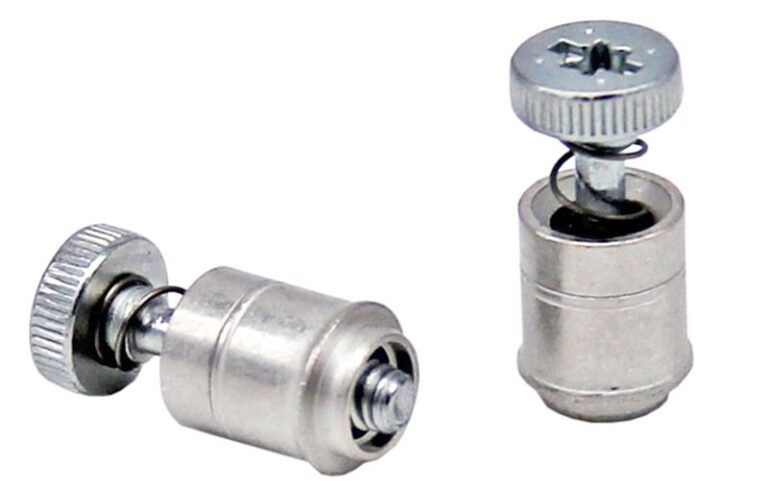

Fasteners that use surface mounting technology (SMT) leverage reflow soldering to attach to PCBs, depending on the surface area of the solidified solder to provide pull-out and torque resistance. While most SMT fasteners are designed with a shank for a pilot hole, new options for pilotless SMT are now available. They allow fasteners like standoffs to be placed anywhere on a PCB’s surface prior to reflow, further streamlining the production process for OEMs.

Advantages & Limitations

SMT fasteners provide cost savings over through-hole solutions with simpler features and streamlined installation – removing the need for displacement and interference features like knurls or burrs. No install force is required since parts can be machine placed at room temperature with solder paste that can be reflowed with the rest of the electrical connections on the PCB, shortening assembly time. Pilotless standoffs can be mounted directly on top of copper traces that would otherwise have to travel around a through-hole, resulting in the potential for more dense electrical components.

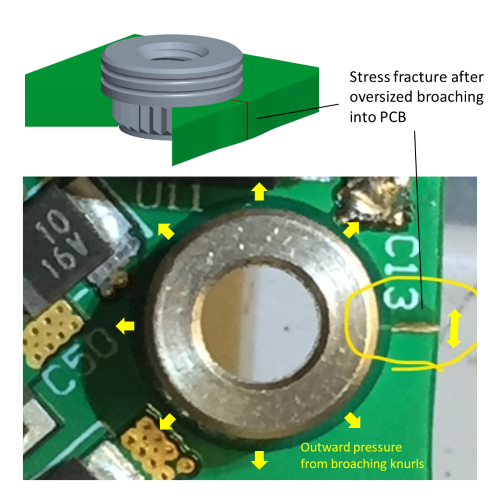

Damage caused to PCB due to oversized install of broaching nut close to edge.

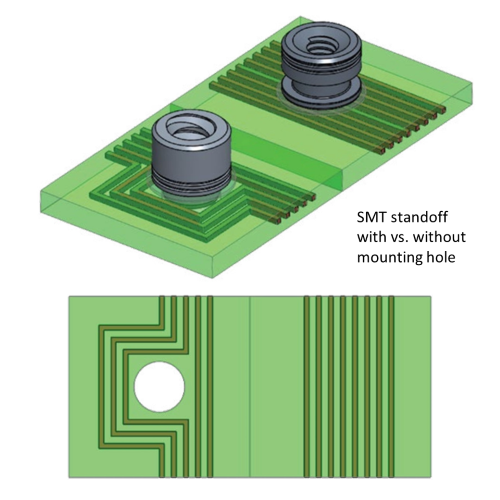

Pilotless standoffs can be mounted directly on top of embedded copper traces.

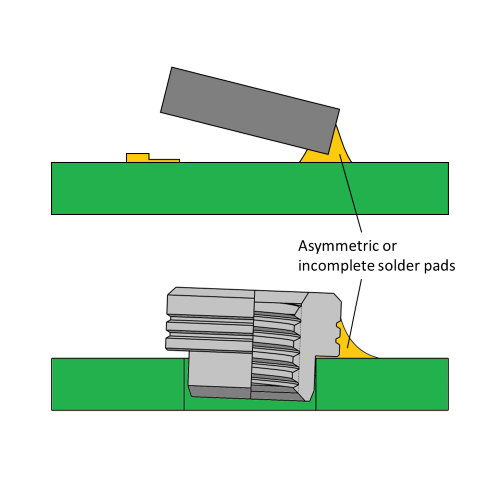

Easily visible SMT defect known as "tombstoning," caused by asymmetric solder or reflow.

Like any of the soldered components on a PCB, the biggest challenges associated with SMT fasteners involve inspection and reparability limitations. The bonding interfaces between the fastener, solder, and circuit board are difficult to visually inspect for defects. This can cause issues in the production process or final product. Additionally, since SMT fasters are soldered directly onto a circuit board, mechanical failure could result in damage to the electrical components. This can render a product defunct or require replacement parts. However, alternative attachment methods like broaching require far more space to securely adhere to a PCB and involve higher installation forces, which can also cause damage in production.

Common Applications

SMT fasteners are almost strictly limited to electrical components, as it involves PCB mounting by soldering directly to a circuit board. This means that any product or industry that involves electronics could benefit from using the reflow capabilities of SMT fasteners to streamline their production.
