618 MSP 5e

Haeger® 618 MSP 5e

618 MSP 5e

Haeger® 618 MSP 5e

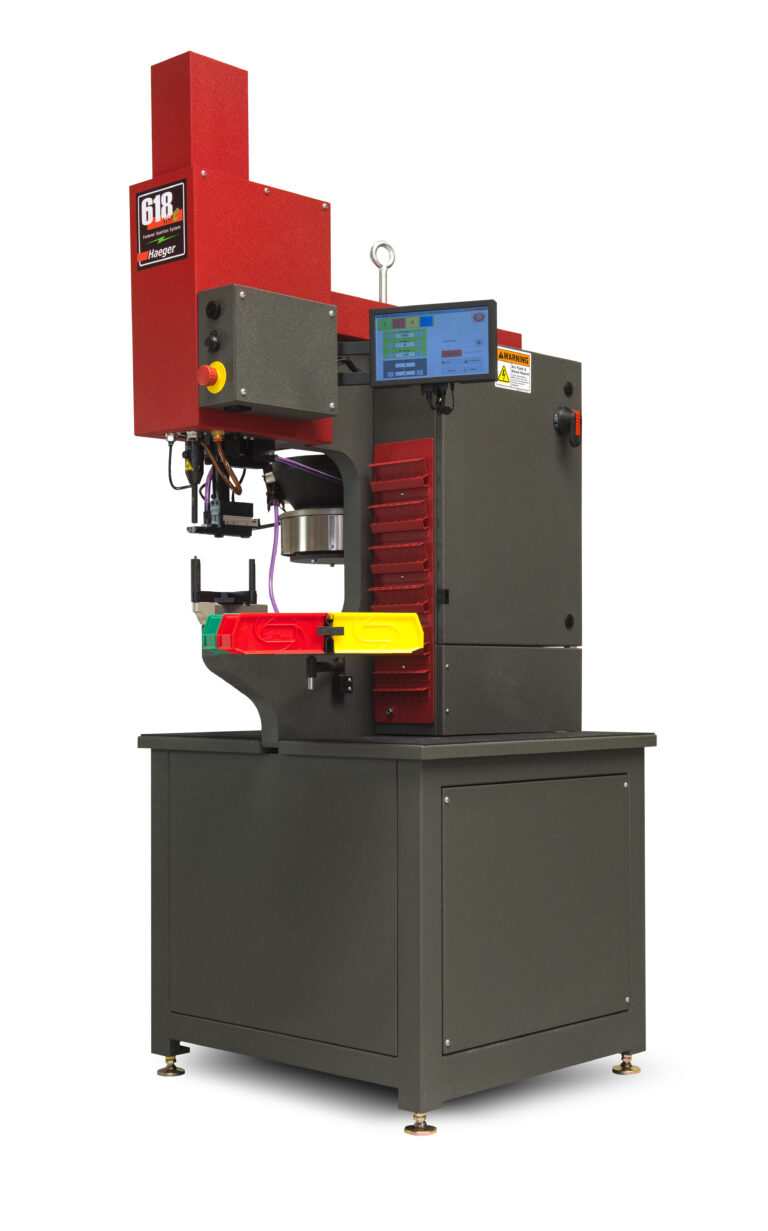

The 618 MSP5e is fully hydraulic, 6 ton of force, 18" throat depth and is powered either by 208, 220, 380, or 480 three phase. The options available are hand crank, auto feed, and Laser Light. The 618 MSP5e is best suited for mid to high volume parts with fasteners up to 0616 ( M8 ) in mild steel and 0516 ( M6 ) in stainless. This machine is also good for soft aluminum parts with the positive stop feature where force required is less than 800 lbs. The 618 MSP5e also has a 4 station lower turret where you can insert 1 fastener automatically and three different fasteners manually allowing you to get the benefit of single part handling. Single Part Handling allows you to increase your process flow by inserting four different all with their own pressure settings and only handle the part once. This feature eliminates the bottle neck.

Features and Benefits:

  • Positive Stop System
  • Modular Auto feed System
  • Batch Counter
  • Built-in TPS Controls
  • Tooling Rack


Adjustable up stroke_in
3/8 to 6in
Adjustable up stroke_mm
10 to 150mm
Clinching Capability
1mm to 6mm combined thickness
200V to 575V 3 phase – 50 or 60 Hz
Footprint Dimensions_in
44 x 66 x 92in
Footprint Dimensions_mm
1143 x 864 x 2388mm
Force Range_kN
2.2 to 53
Force Range_lbs
500 to 12000
Oil Tank Reservoir_gal
Oil Tank Reservoir_L
Product Category
Haeger® 618 MSP 5e
Fastener Range_mm
M2 to M8mm
+/- 2% of force setting
Product Type
Installation Equipment
Technology Type
Installation Technology
Hydraulic pump motor_hp
Stroke Length_in
0 to 8.0in
Stroke Length_mm
0 to 200mm
Throat Depth_in
Throat Depth_mm
