AEHS8-632-130B

Half-Hex Shank Low-Profile Head Threaded Insert – Closed End

AEHS8-632-130B

Half-Hex Shank Low-Profile Head Threaded Insert – Closed End

  • Feature a hex body design.
  • Improved torque-out resistance.
  • Additional thread sizes and grip ranges available.
  • Also available in aluminum and brass. Call for availability.

Specifications

Thread Size
#6-32
Thread Specification
2B per ASME B1.1
Fastener Material
Carbon Steel
Standard Material
Low Carbon Steel
Standard Finish
RoHS Compliant Zinc Yellow Plus Lubricant, Zinc plus Yellow Chromate + Lubricant
Product Category
Half-Hex Shank Low-Profile Head Threaded Insert – Closed End
CAD Supplier
PennEngineering® (Atlas®)
CADPartID
103637
Fastening
Uninstalled
ATLAS products Grip Range
.080in, .080in – .130in, .130in
Base Panel Material
Aluminum, Brass, Copper, Hard Steel, Stainless Steel, Steel
Brand
ATLAS
Fastener Characteristics
Threaded Internal
Installation Equipment/Method
Hand Tools
Product Type
Blind Threaded Inserts
Technology Type
Riveting
Unit (Metric/Unified)
Unified

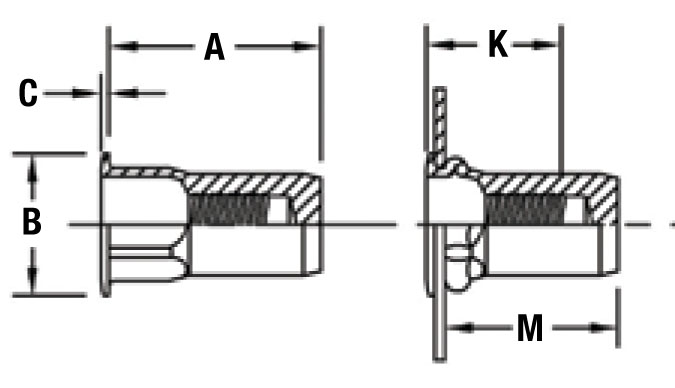

A ± .015_in
.740in
B ± .015_in
.375in
C Nom._in
.027in
Hole Size In Sheet + .006 -.000_in
.250in
K Min._in
.430in
øD Max._in
.249in
