AEOS10-580-3.3

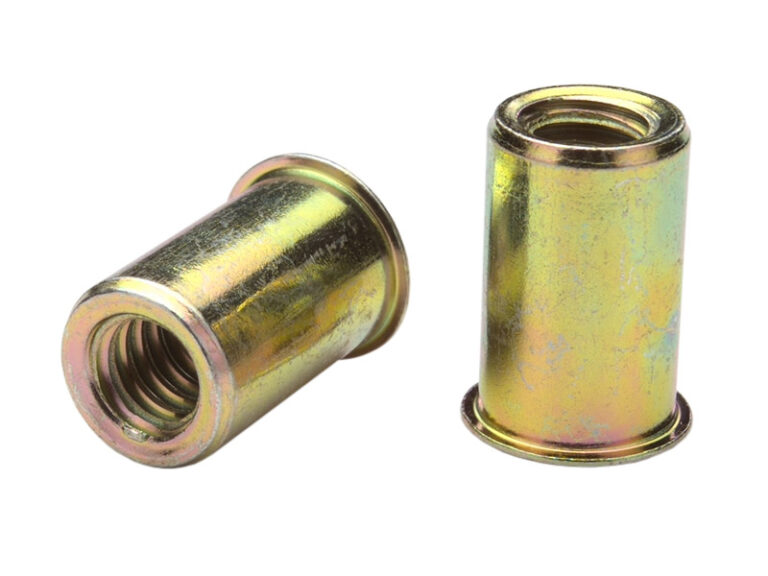

Thin-Wall Low-Profile Head Threaded Insert
AEOS10-580-3.3
Thin-Wall Low-Profile Head Threaded Insert
- Features a low-profile.
- Allows near-flush installations with no need for special hole preparations such as countersinking or dimpling.
- Additional thread sizes and grip ranges available.
Specifications
- Thread Size
- M5 x 0.8
- Thread Size X Pitch
- M5 x 0.8
- Thread Specification
- 6H per ASME B1.13M
- Fastener Material
- Carbon Steel
- Standard Material
- Low Carbon Steel
- Standard Finish
- RoHS Compliant Zinc Clear Plus Lubricant, Zinc plus Clear Chromate + Lubricant
- Product Category
- Thin-Wall Low-Profile Head Threaded Insert
- CAD Supplier
- PennEngineering® (Atlas®)
- CADPartID
- 102733
- Fastening
- Uninstalled
- ATLAS products Grip Range
- 0.50mm, 0.50mm – 3.30mm, 3.30mm
- Base Panel Material
- Aluminum, Brass, Copper, Hard Steel, Stainless Steel, Steel
- Brand
- ATLAS
- Fastener Characteristics
- Threaded Internal
- Installation Equipment/Method
- Hand Tools
- Product Type
- Blind Threaded Inserts
- Technology Type
- Riveting
- Unit (Metric/Unified)
- Metric

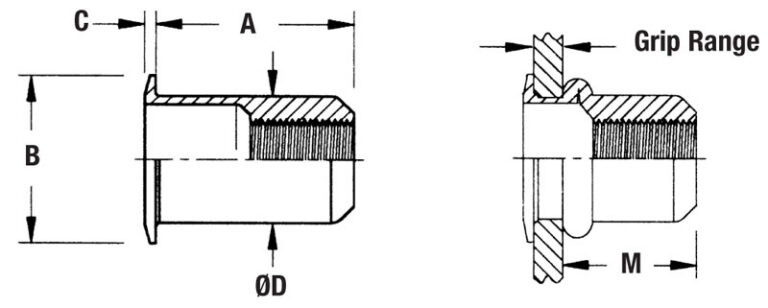

- A ± 0.38_mm
- 11.18mm
- B ± 0.25_mm
- 8.13mm
- C Nom._mm
- 0.51mm
- Hole Size In Sheet + 0.15_mm
- 7.20mm
- øD Max._mm
- 7.11mm
