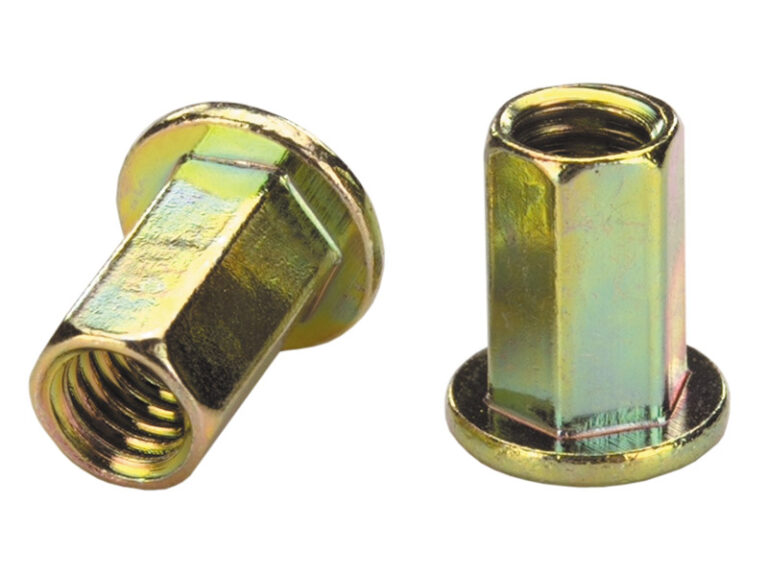

AES25H205ZYR
Standard Full-Hex Threaded Insert
AES25H205ZYR
Standard Full-Hex Threaded Insert
- Designed for high load applications. Full hex feature for high torque applications.
- Additional thread sizes and grip ranges are available.
- Other materials available. Cadmium finish available upon request.
Specifications
- Thread Size
- 1/4-20
- Thread Specification
- 2B per ASME B1.1
- Fastener Material
- Carbon Steel
- Standard Material
- Low Carbon Steel
- Standard Finish
- RoHS Compliant Zinc Yellow, Zinc plus Yellow Chromate
- Identification Mark
- 2 Rad.
- Min. Tensile Strength (PSI Ult.)
- 45,000
- Product Category
- Standard Full-Hex Threaded Insert
- CAD Supplier
- PennEngineering® (Atlas®)
- CADPartID
- 103662
- Fastening
- Uninstalled
- ATLAS products Grip Range
- .145in, .145in – .205in, .205in
- Base Panel Material
- Aluminum, Brass, Copper, Hard Steel, Stainless Steel, Steel
- Brand
- ATLAS
- Fastener Characteristics
- Threaded Internal
- Installation Equipment/Method
- Hand Tools
- Product Type
- Blind Threaded Inserts
- Technology Type
- Riveting
- Unit (Metric/Unified)
- Unified

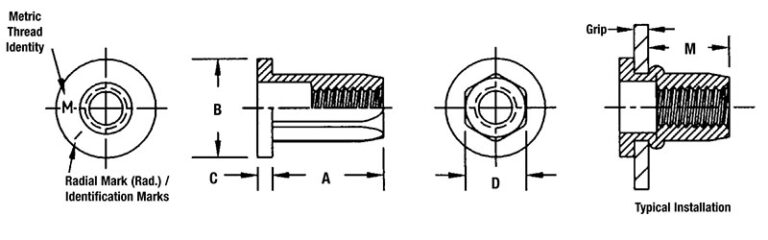

- A ± .015_in
- .531in
- B ± .015_in
- .437in
- C Nom._in
- .043in
- Hex Hole Size In Sheet + .005 -.000_in
- .297in
- D Max._in
- .296in
