AESM6P12.7PBZYR

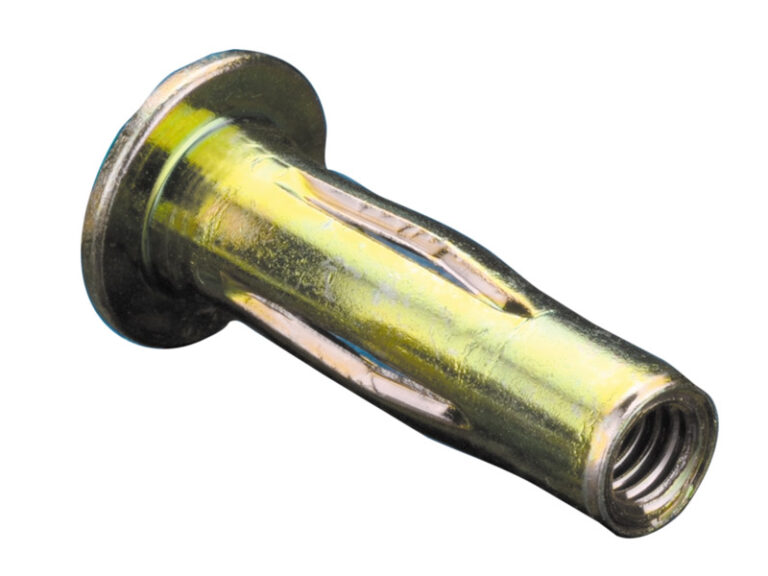

Pre-Bulbed Threaded Insert
AESM6P12.7PBZYR
Pre-Bulbed Threaded Insert

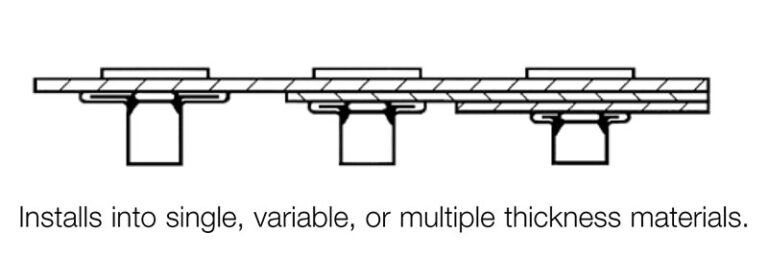

- Designed for superior pullout resistance in plastics and thin sheet metal.
- Pre-bulbed design requires less installation load.
- Pre-bulbed inserts require less installation load than straight shank and require slightly larger mounting hole size.
- Other materials available.
NOTE: The Atlas® spin-spin or spin-pull tool can be used to install pre-bulbed inserts. Material hardness will affect the published grip ranges. Trial installations of this product in your application are recommended. We will be happy to provide samples for this purpose.
Specifications
- Thread Size
- M6 x 1
- Thread Size X Pitch
- M6 x 1
- Thread Specification
- 6H per ASME B1.13M
- Fastener Material
- Carbon Steel
- Standard Material
- Low Carbon Steel
- Standard Finish
- RoHS Compliant Zinc Yellow, Zinc plus Yellow Chromate
- Identification Mark
- 1 Rad.
- Product Category
- Pre-Bulbed Threaded Insert
- CAD Supplier
- PennEngineering® (Atlas®)
- CADPartID
- 103644
- Fastening
- Uninstalled
- ATLAS products Grip Range
- 12.70mm, 7.10mm, 7.10mm – 12.70mm
- Base Panel Material
- Aluminum, Brass, Copper, Hard Steel, Plastic, Stainless Steel, Steel
- Brand
- ATLAS
- Fastener Characteristics
- Threaded Internal
- Installation Equipment/Method
- Hand Tools
- Product Type
- Blind Threaded Inserts
- Technology Type
- Riveting
- Unit (Metric/Unified)
- Metric

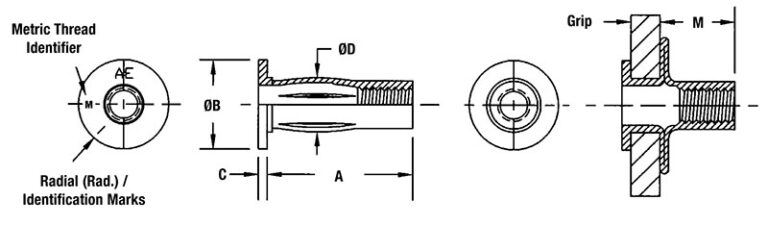

- A ± 0.38_mm
- 31.34mm
- C Nom._mm
- 1.45mm
- Hole Size in Sheet + 0.15_mm
- 10.00mm
- øB Nom._mm
- 15.88mm
- øD Max._mm
- 9.80mm
