AESS-610-4.2-25.0

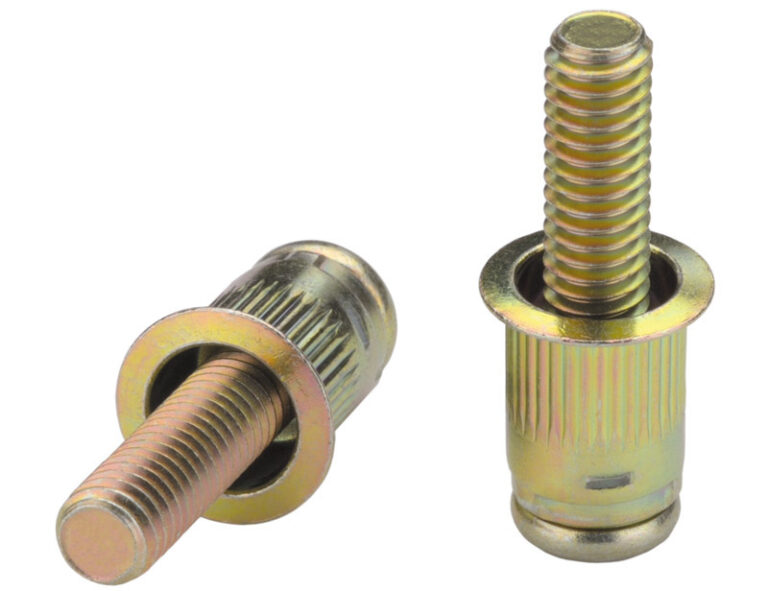

Blind Threaded Studs

AESS-610-4.2-25.0

Blind Threaded Studs

  • Provides strong external threads in blind applications.
  • Easy to install using spin/spin tooling.
  • The standard is assembled with an AEL insert but can also be assembled with an AEK or an AEH insert.
  • Other materials available.

Specifications

Thread Size
M6 x 1
Thread Specification
6g per ASME B1.13M
Fastener Material
Carbon Steel
Standard Material
Insert – Low Carbon Steel, Stud – Heat-treated carbon steel
Standard Finish
Zinc plus Yellow Chromate
Grip Code
4.2
Product Category
Blind Threaded Studs
CAD Supplier
PennEngineering® (Atlas®)
CADPartID
103640
Fastening
Uninstalled
ATLAS products Grip Range
0.70mm – 4.20mm
Base Panel Material
Aluminum, Brass, Copper, Hard Steel, Stainless Steel, Steel
Brand
ATLAS
Fastener Characteristics
Threaded External
Installation Equipment/Method
Hand Tools
Product Type
Blind Threaded Inserts
Technology Type
Riveting
Unit (Metric/Unified)
Metric

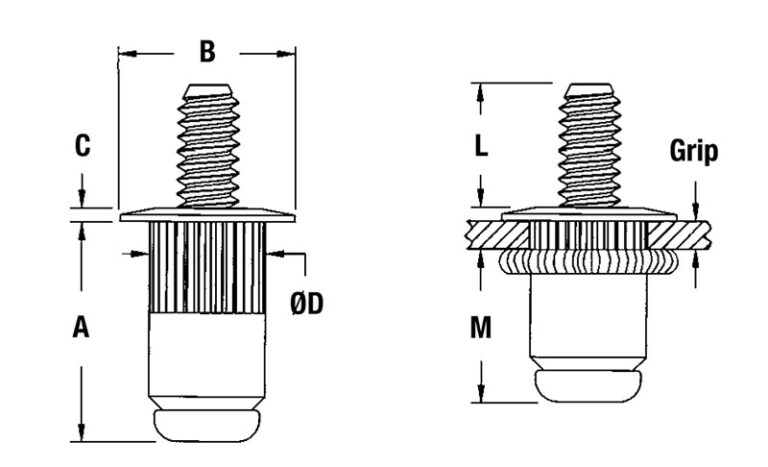

A ± 0.51_mm
17.02mm
B ± 0.38_mm
12.7mm
C Nom._mm
0.76mm
Hole Size In Sheet + 0.15_mm
10mm
øD Max._mm
9.91mm
Stud Length L Nom. (at Max. Grip)_mm
25mm
