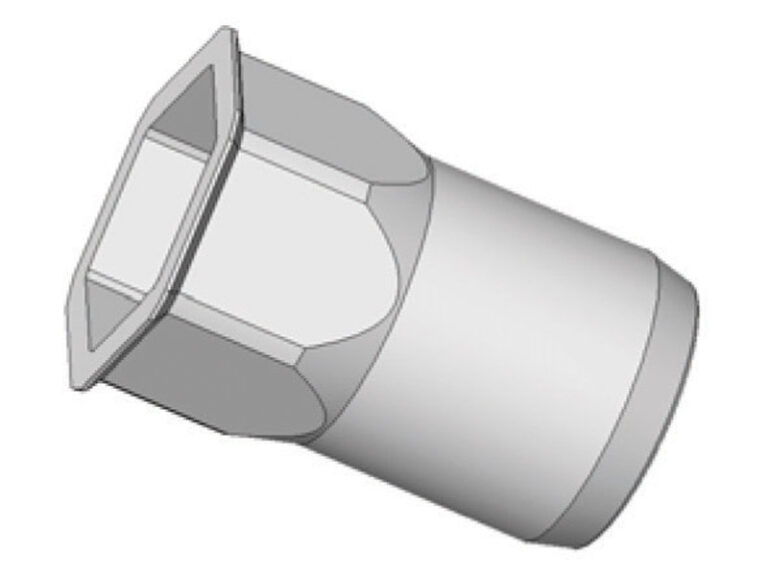

AETHS-518-120BZN
Half-Hex Shank Low-Profile Head Threaded Insert – Closed End
AETHS-518-120BZN
Half-Hex Shank Low-Profile Head Threaded Insert – Closed End
- Low Carbon Steel insert for superior corrosion resistance.
- Hexagonal hole for increased spinout resistance.
- Additional thread sizes and grip ranges available.
- Other materials available.
Installed With a Spin-Pull Tool.
Specifications
- Thread Size
- 5/16-18
- Thread Specification
- 2B per ASME B1.1
- Fastener Material
- Carbon Steel
- Standard Material
- Low Carbon Steel
- Standard Finish
- Zinc Nickel
- Product Category
- Half-Hex Shank Low-Profile Head Threaded Insert – Closed End
- CAD Supplier
- PennEngineering® (Atlas®)
- CADPartID
- 103657
- Fastening
- Uninstalled
- ATLAS products Grip Range
- .020in, .020in – .120in, .120in
- Base Panel Material
- Aluminum, Brass, Copper, Hard Steel, Stainless Steel, Steel
- Brand
- ATLAS
- Fastener Characteristics
- Threaded Internal
- Installation Equipment/Method
- Hand Tools
- Product Type
- Blind Threaded Inserts
- Technology Type
- Riveting
- Unit (Metric/Unified)
- Unified

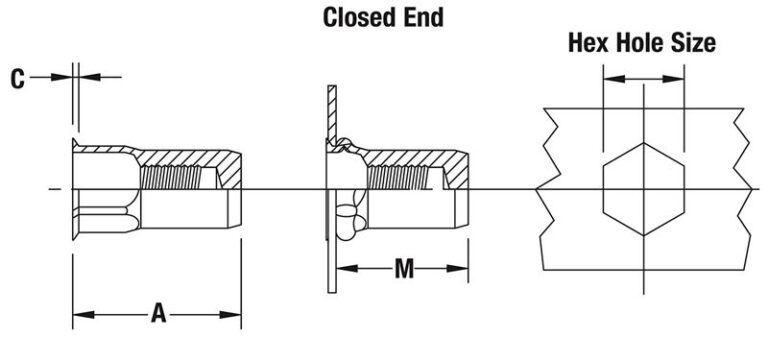

- A ± .010_in
- .996in
- B ± .010_in
- .472in
- C ± .005_in
- .025in
- Hole Size In Sheet + .004 -.000_in
- .433in
- D Max._in
- .433in
