F10-M3-1ZI

F10 Self-Clinching Floating Receptacle Nuts

F10-M3-1ZI

F10 Self-Clinching Floating Receptacle Nuts

Tool only, flush mounted, no spring.

Specifications

Thread Code
M3
Thread Size
M3 x 0.5
Thread Specification
6H, ANSI/ASME B1.13M
Shank Code
1
Fastener Material
Carbon Steel
Material
Heat-Treated Carbon Steel
For Use in Sheet Hardness
HRB 70 or Less (Hardness Rockwell “B” Scale) / HB 125 or Less (Hardness Brinell)
Product Category
F10 Self-Clinching Floating Receptacle Nuts
CAD Supplier
PennEngineering® (PEM®)
CADPartID
103923
Thread Type
F10
Application Type
Automotive Electronics, Datacom, Industrial, Telecom
Base Panel Material
Aluminum, Steel
Brand
PEM
Fastener Characteristics
Threaded Internal
Finish Type
colorless, SC1 (5µm), Type III, Zinc plated per ASTM B633
Industry
Automotive Electronics, Datacom & Telecom, Industrial & Commercial, Medical
Installation Equipment/Method
C-Frame Automatic Feed, C-Frame Manual Feed
Product Type
Nuts
Technology Type
Self-Clinching
Unit (Metric/Unified)
Metric

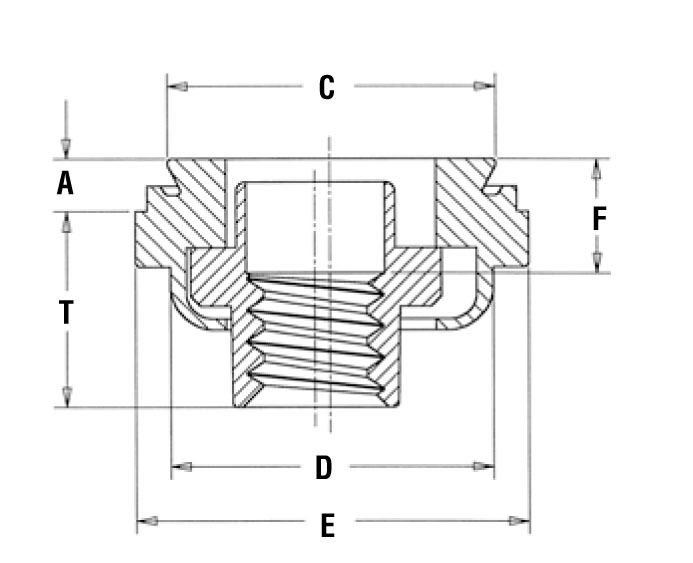

A Shank Max
0.97mm
E Max._mm
9.15mm
F ± 0.25_mm
2.59mm
Hole Size in Sheet + 0.08_mm
7.37mm
Min. Dist. Hole C/L to Edge_mm
7.62mm
Min. Sheet Thickness_mm
1mm
C Max._mm
7.34mm
D Max._mm
7.37mm
T ± 0.25_mm
5.08mm
