H-0616-ZI

Nuts – Types H, HNL

H-0616-ZI

Nuts – Types H, HNL

  • Meets torque requirements for IFI 100/107 Grade B (unified) and ANSI B18.16.1M (metric) locknuts.
  • Type H is for use in sheet hardness HRB 80 or less on the Rockwell “B” scale.
  • Type HNL are for use in sheet hardness HRB 60 or less on the Rockwell “B” scale.

Specifications

Thread Code
616
Thread Size
3/8-16
Thread Specification
2B, ANSI B1.1
Fastener Material
Carbon Steel
Material Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
For Use in Sheet Hardness
HRB 80 / HB 150 or less
Product Category
Nuts – Types H, HNL
CAD Supplier
PennEngineering® (PEM®)
CADPartID
102734
Thread Type
Non-Locking H
PEM Product Family
CL
Unit (Metric/Unified)
Unified

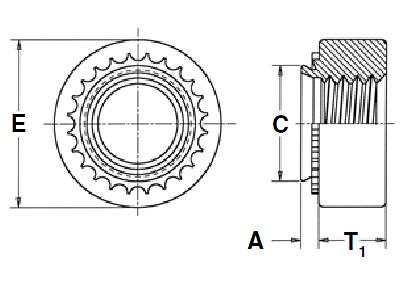

A Shank Max
0.058in
E ± .010_in
0.65in
Hole Size in Sheet + 0.005 – 0.000_in
0.5in
Min. Dist. Hole C/L to Edge_in
0.48in
Min. Sheet Thickness_in
0.058in
C Max._in
0.499in
T1 ± .005_in
0.3in

Resources

Installation & Performance Data

cl-h-nuts-unified
TYPE THREAD CODE TEST SHEET THICKNESS & SHEET MATERIAL (in.) INSTALLATION (lbs.) PUSHOUT (lbs.) TORQUE-OUT (in. lbs.)
H 0616 .090" 5052-H34 Aluminum 4900 380 190
H 0616 .088" Cold-rolled Steel 7400 460 240
