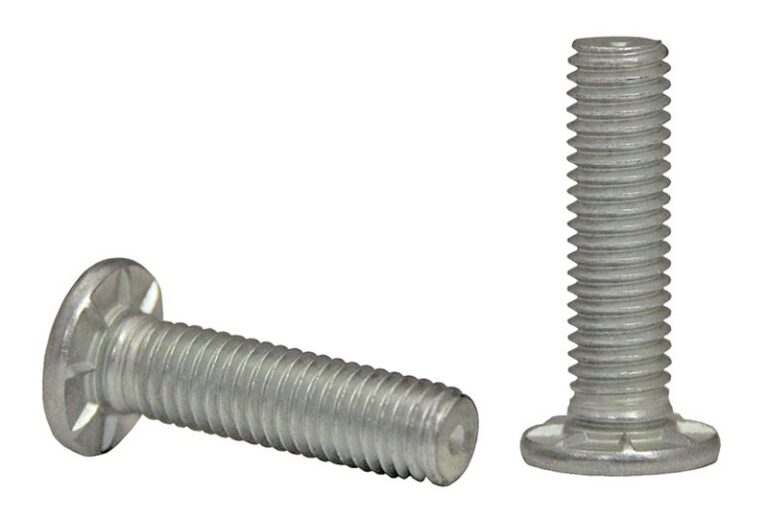

HFLH-M6-25X
Type HFLH™ Hard Panel Studs
HFLH-M6-25X
Type HFLH™ Hard Panel Studs
- Installs into thinner, harder, high strength steel materials (high strength steel sheets up to 700 MPa maximum ultimate tensile)
- Allows overall weight reduction for all vehicles
- Provides lower installed cost
Compare to other thin sheet fastening devices:– Addresses environmental concerns
- Lighter weight
- Close to edge of panel mounting
- No embossing required
- Hardened stud material provides stronger thread strength
- Can be installed automatically using press or in-die technology
Specifications
- Thread Code
- M6
- Thread Size
- M6 x 1
- Thread Size X Pitch
- M6 x 1
- Thread Specification
- 2A / ASME B1.13M, 6g, ASME B1.1, External
- Fastener Material
- Alloy Steel, Heat-Treated Alloy Steel
- Optional Finish
- No Finish (with Rust Preventative Oil)
- For Use in Sheet Hardness
- HRB 96 / HB 216 or Less
- Length Code
- 25
- Tensile strength_MPa
- 900
- Product Category
- Type HFLH™ Hard Panel Studs
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 110706
- Application Type
- Aerospace, Automotive, Automotive Electronics, Commercial Vehicles, Datacom, Electric Vehicle Chargers, Electric Vehicles, Electronics, Industrial, Manufacturing & Sheet Metal Fabrication, Marine, Medical, Renewable Energy, Telecom
- Base Panel Material
- Hard Steel
- Brand
- PEM
- Fastener Characteristics
- Threaded External
- Industry
- Automotive, Automotive Electronics, Datacom & Telecom, Defense, Electic Vehicles, Electric Vehicles, Industrial & Commercial, Medical
- Installation Equipment/Method
- C-Frame Automatic Feed, C-Frame Manual Feed, In-Die
- PEM Product Family
- FH
- Product Type
- Studs
- Technology Type
- Self-Clinching
- Unit (Metric/Unified)
- Metric

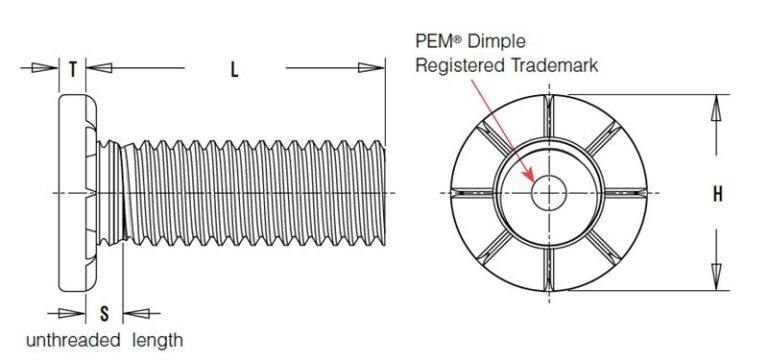

- H Plus Minus 025 Mm
- 11.35mm
- Hole Size in Sheet + 0.13_mm
- 6mm
- L Len Pm 015in Or 4mm
- 25mm
- Max. Hole in Attached Parts_mm
- 8.3mm
- Min. Dist. Hole C/L to Edge_mm
- 11.5mm
- Min. Sheet Thickness_mm
- 1mm
- S Max._mm
- 2.8mm
- T Max._mm
- 1.52mm
Resources
Installation & Performance Data
| TYPE | THREAD CODE | REC. NUT TIGHTENING TORQUE (N•m) | TEST SHEET THICKNESS & MATERIAL | SHEET HARDNESS HRB | INSTALLATION (kN) | PUSHOUT (N) | TORQUE-OUT (N•m) | TENSILE STRENGTH (kN) | PULL-THRU (kN) | TEST BUSHING HOLE SIZE FOR PULL THRU TESTS |
|---|---|---|---|---|---|---|---|---|---|---|
| HFLH | M6 | 11 | 1 mm HC500LA | 89 | 60 | 1400 | 14.4 | 18.1 | 15.5 | 8.2 |
