HSL-701-35

HSL™ Spring

HSL-701-35

HSL™ Spring

HSL springs are engineered to provide a reliable and repeatable spring rate when assembled with mating PEM hardware. The spring rate is critical to the successful assembly of your heat sink.

Clamp load will be determined by the spring rate and deflection that is designed into the joint.

Specifications

Thread Size Fit
#6-32
Fastener Material
17-7 Stainless Steel
Material
17-7 Stainless Steel
Load at Working Height ± 10%_lb
7.87
Load at Working Height ± 10%_N
35
Load Code
35
Spring Rate_lb/in
39
Spring Rate_N/mm
6.84
Product Category
HSL™ Spring
CAD Supplier
PennEngineering® (PEM®)
Application Type
Automotive Electronics, Datacom, Electric Vehicle Chargers, Telecom
Brand
PEM
Industry
Automotive Electronics, Datacom & Telecom, Industrial & Commercial, Medical
Installation Equipment/Method
C-Frame Manual Feed
Product Type
Panel Fasteners
Technology Type
Self-retaining
Inside Diameter Code
701

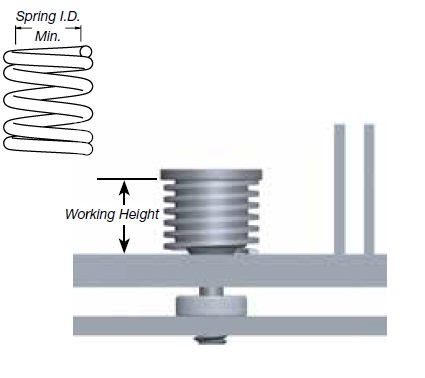

Minimum Inside Dia._in
0.276in
Minimum Inside Dia._mm
7.01mm
Working Height Ref._in
0.27in
Working Height Ref._mm
6.86mm
