IBA-0420-8

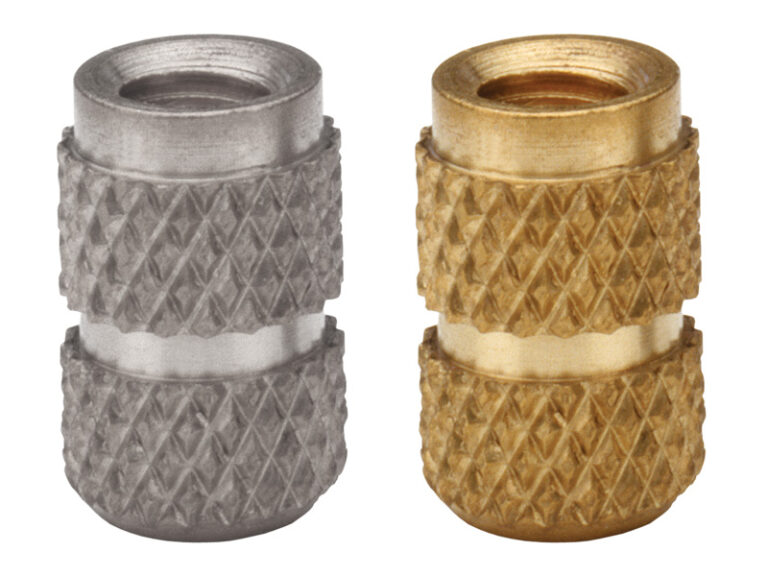

Molded-in Threaded Inserts, Blind Threaded
IBA-0420-8
Molded-in Threaded Inserts, Blind Threaded
- Blind-end protects the threads from plastic intrusion.
- Aluminum inserts ideal for light weight designs.
- Aluminum and stainless steel inserts offer lead-free alternative.
Specifications
- Thread Code
- 0420
- Thread Size
- .250-20 (1/4-20), 1/4-20
- Thread Specification
- 2B per ASME B1.1
- Fastener Material
- Aluminum
- Standard Material
- Aluminum
- Standard Finish
- No Finish, Plain
- Length Code
- 8
- Product Category
- Molded-in Threaded Inserts, Blind Threaded
- CAD Supplier
- PennEngineering® (SI®)
- CADPartID
- 103795
- Thread Type
- IBA
- Base Panel Material
- Plastic
- Brand
- SI
- Fastener Characteristics
- Threaded Internal
- Installation Equipment/Method
- Molded-In
- Product Type
- Inserts
- Technology Type
- Inserts for Plastics
- Unit (Metric/Unified)
- Unified

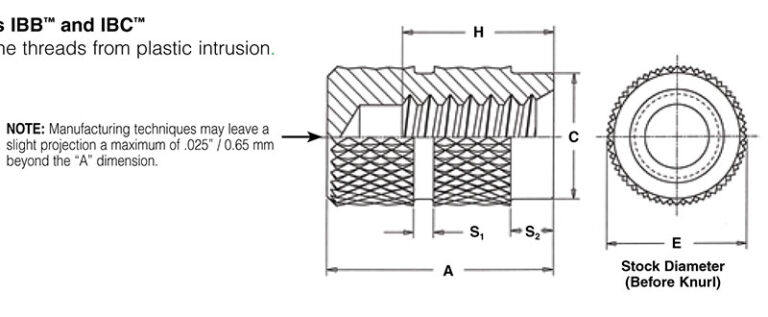

- A ± .005_in
- .625in
- C ± .005_in
- .321in
- E Nom._in
- .344in
- H Min._in
- .415in
- Minor Dia.Max._in
- .207in
- Minor Dia.Min._in
- .197in
- S1 Nom._in
- .060in
- S2 Nom._in
- .090in
