KFE-440-20ET
Broaching Standoffs – Types KFE, KFSE
KFE-440-20ET
Broaching Standoffs – Types KFE, KFSE

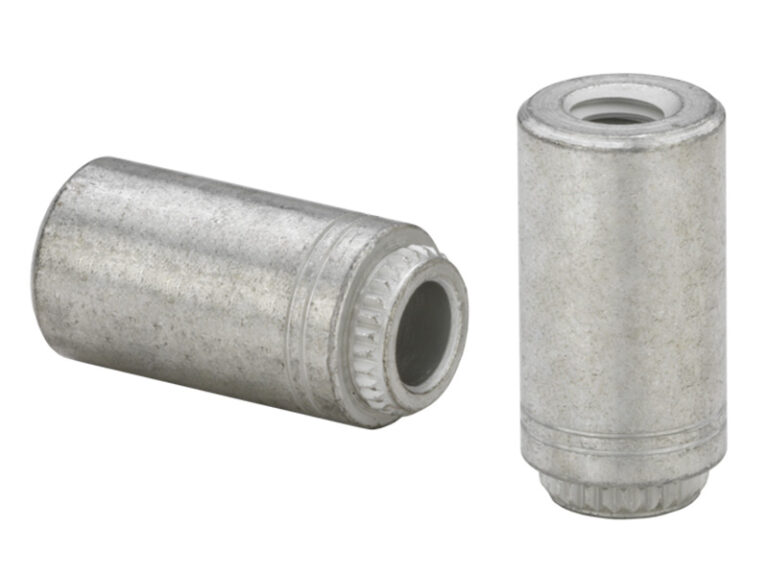

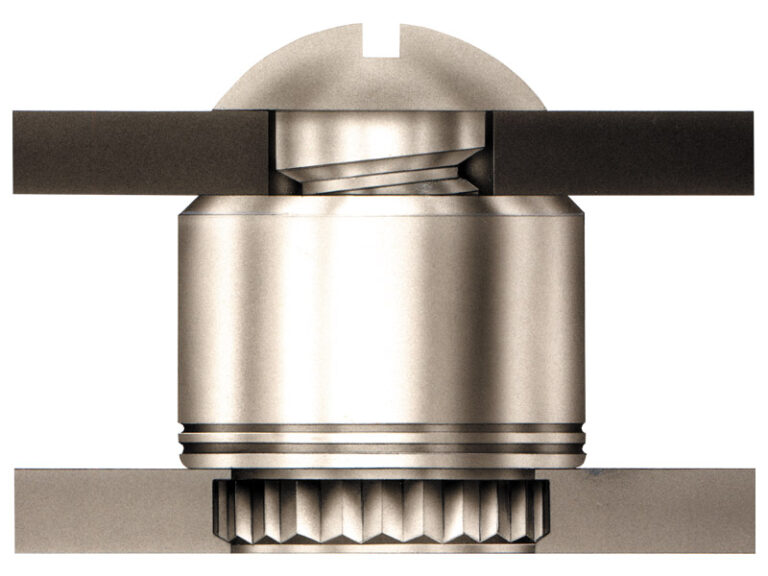

Type KFE and KFSE – Broaching standoffs, threaded or unthreaded for stacking or spacing.
Specifications
- Thread Code
- 440
- Thread Size
- .112-40 (#4-40), #4-40
- Thread Specification
- 2B, ASME B1.1, Internal
- Fastener Material
- Carbon Steel
- Standard Finish
- Annealed, ASTM B545, Class B with Preservative Coating, Electro-Plated Tin, Tin Electroplate
- For Use in Sheet Hardness
- HRB 60 / HB 107 or Less|PC Board
- Length Code
- 20
- Product Category
- Broaching Standoffs – Types KFE, KFSE
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 103740
- Application Type
- Automotive, Automotive Electronics, Datacom, Telecom
- Base Panel Material
- PC Board
- Brand
- PEM
- Fastener Characteristics
- Threaded Internal
- Industry
- Automotive Electronics, Datacom & Telecom, Electic Vehicles, Electric Vehicles, Industrial & Commercial
- Installation Equipment/Method
- C-Frame Manual Feed
- L Len Pm 005in Or 13mm
- .625in, 0.625in
- PEM Product Family
- K
- Product Type
- Standoffs
- Technology Type
- Broaching
- Unit (Metric/Unified)
- Unified

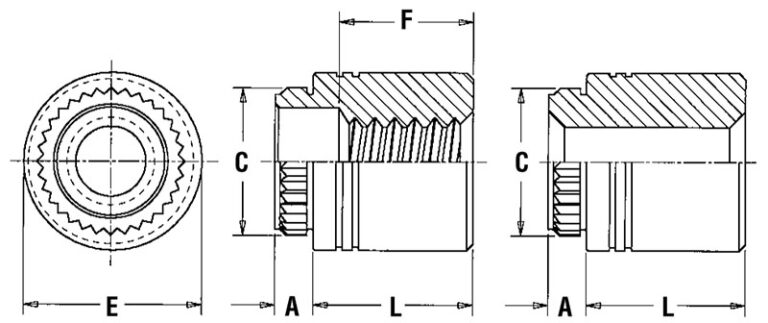

- A Shank Max
- .060in, 0.06in
- C ± .003_in
- .184in
- E ± .005_in
- .219in
- F_in
- .375in
- Hole Size in Sheet + .003 – .000_in
- .166in
- Min. Dist. Hole C/L to Edge_in
- .17in
- Min. Sheet Thickness_in
- .060in
Resources
Installation & Performance Data
| TYPE | THREAD CODE | MAX. NUT TIGHTENING TORQUE (in. lbs.) | TEST SHEET THICKNESS & MATERIAL | INSTALLATION (lbs.) | PUSHOUT (lbs.) | TORQUE-OUT (in. lbs.) |
|---|---|---|---|---|---|---|
| KF2, KFS2, KFE, KFSE | 440 | N/A | .060" FR-4 Panel | 400 | 65 | 15 |
