Broaching Studs – Type KFH
KFH-832-10ET
Broaching Studs – Type KFH
No matter how sophisticated or advanced, electronic components must be attached reliably and securely ifthey are to deliver optimum performance. We offer several fastener products for use with PC boards to satisfy component-to-board, board-to-board, and board-to-chassis attachment needs.

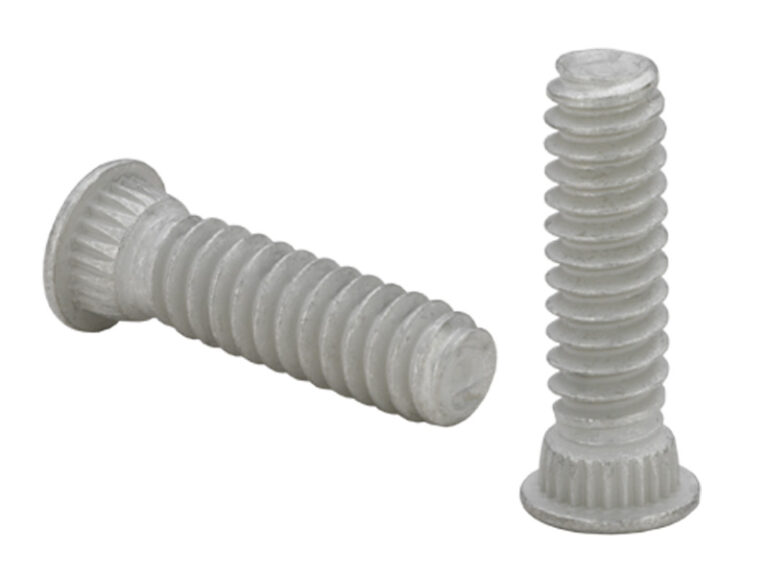

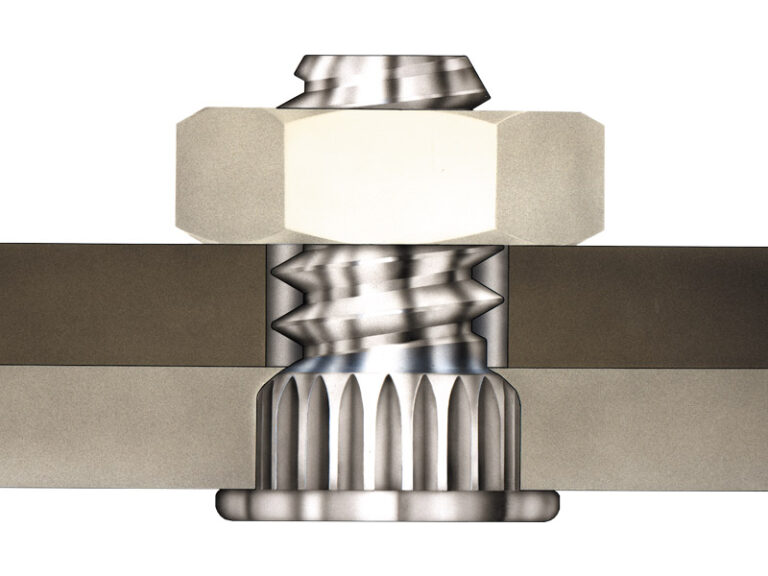

Threaded broaching studs for use as solderable connectors or as permanently mounted studs on PC boards.
Specifications
- Thread Size
- .164-32 (#8-32), #8-32
- Thread Specification
- 2A, ANSI B1.1, External
- Fastener Material
- CDA-510 Phosphor Bronze, Phosphor Bronze
- Standard Finish
- Annealed, ASTM B545, Class B with Preservative Coating, Electro-Plated Tin, Tin Electroplate
- For Use in Sheet Hardness
- HRB 55 / HB 83 or Less|PC Board
- Product Category
- Broaching Studs – Type KFH
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 103744
- Application Type
- Automotive, Automotive Electronics, Datacom, Telecom
- Base Panel Material
- PC Board
- Brand
- PEM
- Fastener Characteristics
- Threaded External
- Industry
- Automotive Electronics, Datacom & Telecom, Electic Vehicles, Electric Vehicles, Industrial & Commercial
- Installation Equipment/Method
- C-Frame Manual Feed
- PEM Product Family
- K
- Product Type
- Studs
- Technology Type
- Broaching
- Unit (Metric/Unified)
- Unified

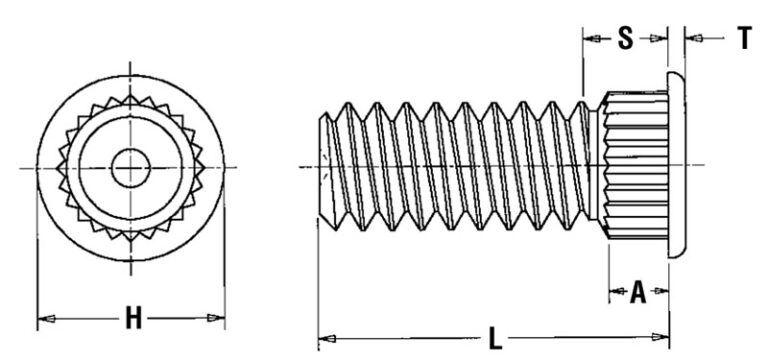

- A Shank Max
- .065in, 0.065in
- H ± .010_in
- .225in
- Hole Size in Sheet + .003 – .000_in
- .166in
- L – Length ± .010_in
- .625in
- Max. Hole Size in Attached Parts_in
- .195in
- Min. Dist. Hole C/L to Edge_in
- .20in
- Min. Sheet Thickness_in
- .060in
- S Max._in
- .090in
- T ± .005_in
- .020in
Resources
Installation & Performance Data
| TYPE | THREAD CODE | MAX. NUT TIGHTENING TORQUE (in. lbs.) | TEST SHEET THICKNESS & MATERIAL | INSTALLATION (lbs.) | PUSHOUT (lbs.) | TORQUE-OUT (in. lbs.) |
|---|---|---|---|---|---|---|
| KFH | 832 | 15 | .060" FR-4 Panel | 400 | 80 | 16 |
