PF11M-M3-0

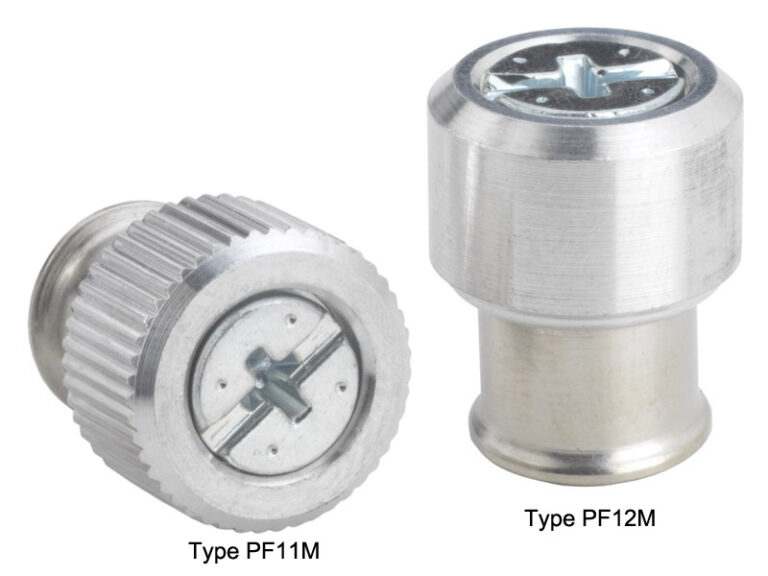

Large Knob, Spring-loaded – Types PF11M and PF12M
PF11M-M3-0
Large Knob, Spring-loaded – Types PF11M and PF12M
- Shoulder on retainer provides positive stop during installation.
- Available in self-clinching, flaring, or floating mounting styles.
- Available with knurled or un-knurled metal cap, black metal cap, or a custom color plastic cap.
Specifications
- Thread Code
- M3
- Thread Size
- M3 x 0.5
- Thread Size X Pitch
- M3 x 0.5
- Thread Specification
- 6g, ANSI/ASME B1.13M
- Material Knob
- Aluminum
- Material Retainer
- Heat-Treated Carbon Steel
- Material Screw
- Heat-Treated Carbon Steel
- Material Spring
- 300 Series Stainless Steel
- Finish Retainer
- Bright Nickel over Copper Flash per ASTM B689
- Finish Screw
- Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
- Finish Spring
- Natural Finish
- For Use in Sheet Hardness
- HRB 80 or Less (Hardness Rockwell “B” Scale) / HB 150 or Less (Hardness Brinell)
- Driver Size
- Slotted/#1 Phillips
- Product Category
- Large Knob, Spring-loaded – Types PF11M, PF12M and PF15M
- CAD Supplier
- PennEngineering® (PEM®)

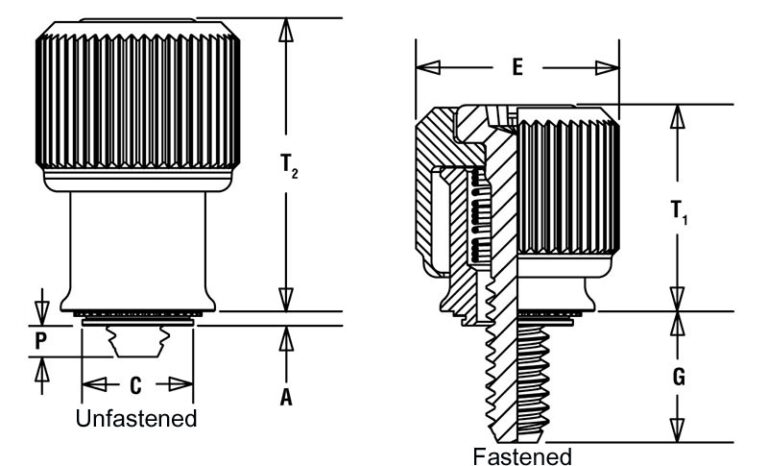

- Cad View
- Unfastened
- CADPartID
- 102737
- Thread Type
- Knurled Cap, PF11M
- Application Type
- Datacom, Industrial, Telecom
- Base Panel Material
- Aluminum, Steel
- Brand
- PEM
- Fastener Characteristics
- Threaded External
- Finish Knob
- Natural Finish
- G Plus Minus 025in 64mm
- 4.32mm
- Industry
- Datacom & Telecom, Industrial & Commercial
- Installation Equipment/Method
- C-Frame Manual Feed
- PEM Product Family
- PF
- Product Type
- Panel Fasteners
- Technology Type
- Self-Clinching
- Unit (Metric/Unified)
- Metric
- A Max._mm
- 0.92mm
- E ± 0.25_mm
- 10.59mm
- Hole Size in Sheet + 0.08_mm
- 5.56mm
- Min. Dist. Hole C/L to Edge_mm
- 7.11mm
- Min. Sheet Thickness_mm
- 0.92mm
- C Max._mm
- 5.54mm
- T1 Nom._mm
- 7.87mm
- T2 Nom._mm
- 11.43mm
