PF50-M3-0CN
Captive Panel Screw-Low Profile Knob, Spring-loaded – PF50/PF60 Series
PF50-M3-0CN
Captive Panel Screw-Low Profile Knob, Spring-loaded – PF50/PF60 Series
- Low-profile design satisfies many functional and cosmetic requirements.
- Type PF50 with convenient large head and Phillips recess for tool or finger operation.
- Available with six-lobe recess.
Specifications
- Thread Code
- M3
- Thread Size
- M3 x 0.5
- Thread Size X Pitch
- M3 x 0.5
- Thread Specification
- 6g, ANSI/ASME B1.13M
- Material Knob
- Carbon Steel
- Material Retainer
- Carbon Steel
- Material Screw
- Carbon Steel
- Material Spring
- 300 Series Stainless Steel
- Finish Retainer
- Bright Nickel over Copper Flash per ASTM B689
- Finish Screw
- Bright nickel over copper flash per ASTM B689
- Finish Spring
- Natural Finish
- For Use in Sheet Hardness
- HRB 60 or Less (Hardness Rockwell “B” Scale)
HB 107 or Less (Hardness Brinell) - Driver Size
- #1 Phillips
- Product Category
- Captive Panel Screw-Low Profile Knob, Spring-loaded – PF50/PF60 Series
- CAD Supplier
- PennEngineering® (PEM®)
- Cad View
- Unfastened
- CADPartID
- 103921
- Thread Type
- Knurled Cap, PF50
- Application Type
- Datacom, Industrial, Telecom
- Base Panel Material
- Aluminum, Steel
- Brand
- PEM
- Fastener Characteristics
- Threaded External
- Finish Knob
- Bright nickel over copper flash per ASTM B689

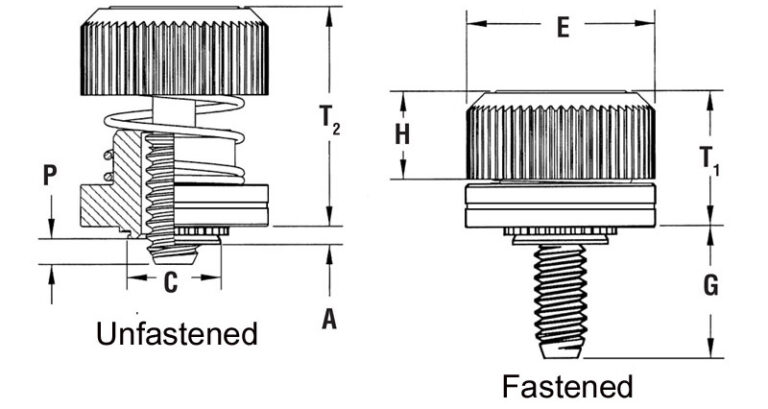

- G Plus Minus 025in 64mm
- 5.84mm
- Industry
- Datacom & Telecom, Industrial & Commercial
- Installation Equipment/Method
- C-Frame Manual Feed
- PEM Product Family
- PF
- Product Type
- Panel Fasteners
- Technology Type
- Self-Clinching
- Unit (Metric/Unified)
- Metric
- A Shank Max
- 0.77mm
- E ± 0.25_mm
- 10.30mm
- H ± 0.2_mm
- 5.26mm
- Hole Size in Sheet + 0.08_mm
- 5.5mm
- Min. Dist. Hole C/L to Edge_mm
- 6.60mm
- Min. Sheet Thickness_mm
- 0.80mm
- C Max._mm
- 5.48mm
- T1 Max._mm
- 8.64mm
- T2 Nom._mm
- 13.21mm
