SFN-M5-1ZI

Spinning Flare Nut – Type SFN™

SFN-M5-1ZI

Spinning Flare Nut – Type SFN™

PEM® Type SFN™ spinning flare nut is a one piece, flanged hex nut that installs by simply pressing it into a properly sized, prepunched embossed mounting hole. The nut is permanently captive and still spins freely in the sheet. This allows quick attachment to mating hardware, eliminating much of the need for loose fasteners.

Above the sheet, the part appears identical to standard flanged hex nuts, while on the other side, the part remains flush.

The spinning flare nut eliminates loose hardware such as flange nuts. When used with a self-clinching stud, all loose hardware is eliminated from the applications.

Features and Benefits

  • Rotates freely in sheet
  • Assembly time reduction and cost
  • Reduction in loose hardware
  • Installs into any sheet hardness

Specifications

Thread Code
M5
Thread Size
M5 x 0.8
Thread Specification
2B / ASME B1.13M, 6H, ASME B1.1, Internal
Shank Code
1
Fastener Material
Carbon Steel
Material
Carbon Steel
Standard Finish
Zinc plus Clear Chromate
For Use in Sheet Hardness
Any
Product Category
Spinning Flare Nut – Type SFN™
CAD Supplier
PennEngineering® (PEM®)
CADPartID
108135
Application Type
Automotive, Industrial, Manufacturing & Sheet Metal Fabrication
Base Panel Material
Aluminum, Any Panel Material, Stainless Steel, Steel
Brand
PEM
Fastener Characteristics
Flaring, Spinning, Threaded Internal
Industry
Automotive, Automotive Electronics
Installation Equipment/Method
C-Frame Manual Feed
PEM Product Family
SFN
Product Type
Nuts
Technology Type
Flaring
Unit (Metric/Unified)
Metric

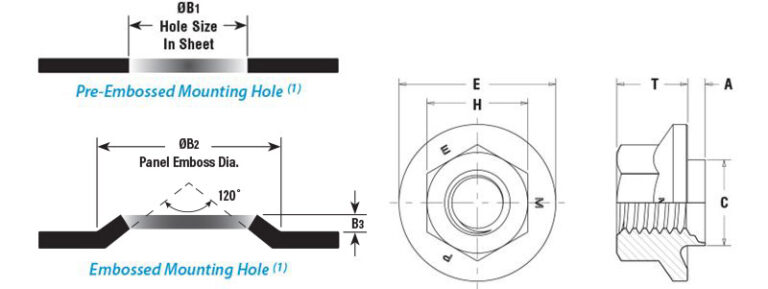

A Shank Max
1.3mm
B3 Panel Emboss Height Nom._mm
0.4mm
E ±0.3_mm
12.8mm
H -0.2_mm
7.98mm
ØB1 Hole Size in Sheet +0.08_mm
7.5mm
ØB2 Panel Emboss Dia. Nom._mm
10mm
C Max._mm
7.25mm
Sheet Thickness ±0.1_mm
1mm
T ±0.25_mm
6mm

Resources

Installation & Performance Data

sfn-sfn-metric
TYPE THREAD CODE SHANK CODE TEST SHEET MATERIALS INSTALLATION (kN) PUSHOUT (N)
SFN M5 1 Stainless Steel 7.2 862
SFN M5 1 Cold-Rolled Steel 7.2 642
SFN M5 1 Aluminum 5.8 428
SFN M5 2 Stainless Steel 7.2 1261
SFN M5 2 Cold-Rolled Steel 7.2 1261
SFN M5 2 Aluminum 5.8 1261
