SK4-F1.5

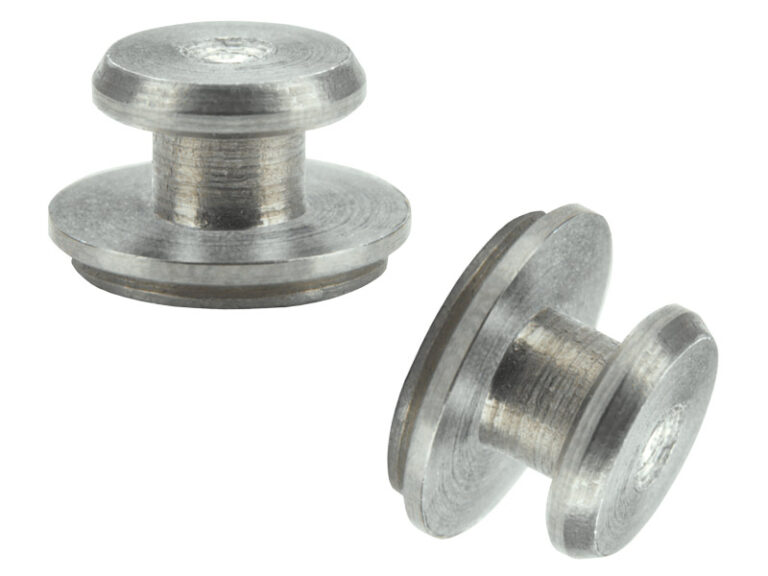

KEYHOLE® Sheet Joining Fasteners Type SK4-F™
SK4-F1.5
KEYHOLE® Sheet Joining Fasteners Type SK4-F™
SK4-F™ fasteners are designed so that two sheets can be quickly joined flat against each other. Typically, several fasteners are used with one standard PEM® threaded F™ flush nut (PEM® Bulletin F) which accepts a screw to secure the sheets against any unwanted movement.
- Allow detachable spacing of two sheets
- Clinch feature mounts fastener permanently and flush or sub-flush into metal sheet
- Unique barrel design allows for quick “panel-on-panel” attachment and detachment
- Can be clinched into blind hole where concealed head is required
- Makes horizontal or vertical component mounting possible
- SK4-F™ fasteners are now available for installation into stainless steel sheets
Specifications
- Fastener Material
- 300 Series Stainless Steel, 400 Series Stainless Steel
- Panel 2 (Top) Material
- Any
- Standard Material
- 400 Series Stainless Steel
- Standard Finish
- Passivated and/or tested, Passivated and/or tested per ASTM A380
- Panel 1 (Bottom) Sheet Hardness Max.
- HRB 70 / HB 125
- Product Category
- KEYHOLE® Sheet Joining Fasteners Type SK4-F™
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 103725, 103724
- Application Type
- Datacom, Industrial, Telecom
- Base Panel Material
- Stainless Steel
- Brand
- PEM
- Fastener Characteristics
- Flush, Unthreaded
- Industry
- Datacom & Telecom, Industrial & Commercial
- Installation Equipment/Method
- C-Frame Manual Feed
- PEM Product Family
- SK
- Product Type
- Other Fasteners
- Technology Type
- Self-Clinching
- Unit (Metric/Unified)
- Metric, Unified

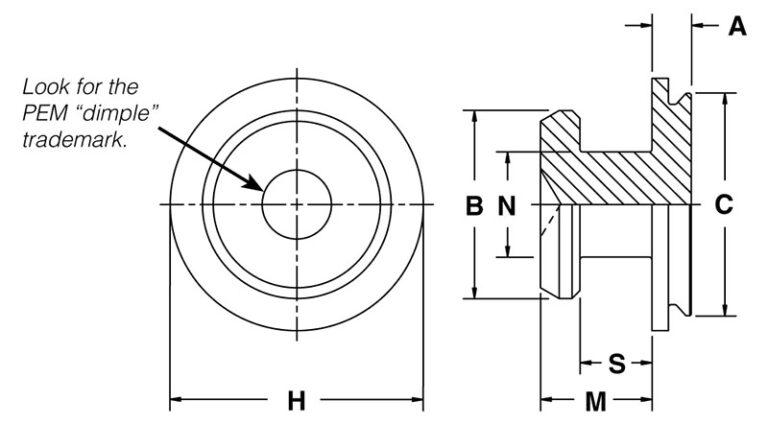

- A Max._in
- .039in
- A Max._mm
- 1mm
- B ± .003_in
- .177in
- B ± 0.08_mm
- 4.5mm
- D Anvil Hole + .003 – .000_in
- .184in
- D Anvil Hole + 0.08_mm
- 4.67mm
- H Nom._in
- .237in
- H Nom._mm
- 6.02mm
- M Max._in
- .108in
- M Max._mm
- 2.75mm
- N ± .003_in
- .099in
- N ± 0.08_mm
- 2.5mm
- C Max._in
- .212in
- C Max._mm
- 5.39mm
- Panel 1 (Bottom) Edge Distance C1 Min._in
- .150in
- Panel 1 (Bottom) Edge Distance C1 Min._mm
- 3.80mm
- Panel 1 (Bottom) Location Tolerance Max._in
- ±.130, ±.005in
- Panel 1 (Bottom) Mounting Hole B + .003 – .000_in
- .213in
- Panel 1 (Bottom) Mounting Hole B + 0.08_mm
- 5.41mm
- Panel 1 (Bottom) Sheet Thickness Min._in
- .039in
- Panel 1 (Bottom) Sheet Thickness Min._mm
- 1mm
- Panel 2 (Top) Edge Distance C2 Min._in
- .160in
- Panel 2 (Top) Edge Distance C2 Min._mm
- 4.1mm
- Panel 2 (Top) Mounting Hole A1 Nom._in
- .059in
- Panel 2 (Top) Mounting Hole A1 Nom._mm
- 1.5mm
- Panel 2 (Top) Mounting Hole A2 ± .003_in
- .118in
- Panel 2 (Top) Mounting Hole A2 ± 0.08_mm
- 3mm
- Panel 2 (Top) Mounting Hole A3 ± .003_in
- .197in
- Panel 2 (Top) Mounting Hole A3 ± 0.08_mm
- 5mm
- Panel 2 (Top) Mounting Hole A4 Min._in
- .148in
- Panel 2 (Top) Mounting Hole A4 Min._mm
- 3.75mm
- Panel 2 (Top) Thickness Range_in
- .057 to .064in
- Panel 2 (Top) Thickness Range_mm
- 1.45 to 1.62mm
- S ± .003_in
- .068in
- S ± 0.08_mm
- 1.72mm
Resources
Installation & Performance Data
| TYPE | BODY SIZE – SHEET CODE | TEST SHEET MATERIAL | INSTALLATION (kN) | PUSHOUT (N) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKC, SK4 | SKC-61.5 | 1.52 mm 5052-H34 Aluminum | 7.1 | 1100 | ||||||
| SKC, SK4 | SK4-61.5 | 1.52 mm 5052-H34 Aluminum | – | – | ||||||
| SKC, SK4 | SKC-61.5 | 1.52 mm Cold-Rolled Steel | 14.2 | 2600 | ||||||
| SKC, SK4 | SK4-61.5 | 1.52 mm Cold-Rolled Steel | – | – | ||||||
| SKC, SK4 | SKC-61.5 | 1.52 mm 300 Series Stainless Steel | – | – | ||||||
| SKC, SK4 | SK4-61.5 | 1.52 mm 300 Series Stainless Steel | 40.1 | 3200 |
| TYPE | BODY SIZE – SHEET CODE | TEST SHEET THICK | TEST SHEET MATERIAL | LENGTH CODES | SIDE-LOAD FORCE MAX. (N) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKC, SK4 | SKC-61.5 | 1 mm | 5052-H34 Aluminum | -2 | 545 | |||||
| SKC, SK4 | SKC-61.5 | 1 mm | 5052-H34 Aluminum | -4 | 370 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -6 | 296 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -8 | 228 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -10 | 184 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -12 | 156 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -14 | 136 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -16 | 116 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -18 | 104 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -20 | 96 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -22 | 88 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -25 | 76 | |||||
| SKC, SK4 | SKC-61.5 | 1 mm | Cold-Rolled Steel | -2 | 735 | |||||
| SKC, SK4 | SKC-61.5 | 1 mm | Cold-Rolled Steel | -4 | 490 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -6 | 696 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -8 | 540 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -10 | 440 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -12 | 372 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -14 | 320 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -16 | 280 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -18 | 252 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -20 | 228 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -22 | 208 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -25 | 184 | |||||
| SKC, SK4 | SKC-61.5 | 1 mm | 300 Series Stainless Steel | -2 | 1690 | |||||
| SKC, SK4 | SKC-61.5 | 1 mm | 300 Series Stainless Steel | -4 | 1140 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -6 | 860 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -8 | 710 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -10 | 610 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -12 | 540 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -14 | 480 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -16 | 440 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -18 | 400 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -20 | 380 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -22 | 320 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -25 | 250 |
| TYPE | BODY SIZE – SHEET CODE | TEST SHEET THICK | TEST SHEET MATERIAL | LENGTH CODES | SIDE-LOAD FORCE MAX. (lbs.) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKC, SK4 | SKC-6060 | 0.040" | 5052-H34 Aluminum | -2 | 130 | |||||
| SKC, SK4 | SKC-6060 | 0.040" | 5052-H34 Aluminum | -4 | 95 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -6 | 82 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -8 | 63 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -10 | 52 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -12 | 44 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -14 | 38 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -16 | 34 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -18 | 30 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -20 | 27 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -24 | 22 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -28 | 19 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -32 | 17 | |||||
| SKC, SK4 | SKC-6060 | 0.040" | Cold-Rolled Steel | -2 | 185 | |||||
| SKC, SK4 | SKC-6060 | 0.040" | Cold-Rolled Steel | -4 | 120 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -6 | 197 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -8 | 153 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -10 | 126 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -12 | 106 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -14 | 92 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -16 | 81 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -18 | 71 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -20 | 66 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -24 | 55 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -28 | 47 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -32 | 42 | |||||
| SKC, SK4 | SKC-6060 | 0.040" | 300 Series Stainless Steel | -2 | 400 | |||||
| SKC, SK4 | SKC-6060 | 0.040" | 300 Series Stainless Steel | -4 | 300 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -6 | 220 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -8 | 180 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -10 | 160 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -12 | 140 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -14 | 120 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -16 | 110 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -18 | 100 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -20 | 100 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -24 | 80 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -28 | 70 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -32 | 50 |
| TYPE | BODY SIZE – SHEET CODE | TEST SHEET MATERIAL | INSTALLATION (lbs.) | PUSHOUT (lbs.) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKC, SK4 | SKC-6060 | .060" 5052-H34 Aluminum | 1600 | 250 | ||||||
| SKC, SK4 | SK4-6060 | .060" 5052-H34 Aluminum | – | – | ||||||
| SKC, SK4 | SKC-6060 | .060" Cold-Rolled Steel | 3200 | 600 | ||||||
| SKC, SK4 | SK4-6060 | .060" Cold-Rolled Steel | – | – | ||||||
| SKC, SK4 | SKC-6060 | .060" 300 Series Stainless Steel | – | – | ||||||
| SKC, SK4 | SK4-6060 | .060" 300 Series Stainless Steel | 9015 | 720 |
| TYPE | TEST SHEET MATERIAL | INSTALLATION (kN) | PUSHOUT (N) | SIDE-LOAD FORCE MAX. (N) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKC-F | 1.52 mm 5052-H34 Aluminum | 4.9 | 533 | 533 | ||||||
| SK4-F | 1.52 mm 5052-H34 Aluminum | – | – | – | ||||||
| SKC-F | 1.52 mm Cold-Rolled Steel | 9.3 | 711 | 822 | ||||||
| SK4-F | 1.52 mm Cold-Rolled Steel | – | – | – | ||||||
| SKC-F | 1.52 mm 300 Series Stainless Steel | – | – | – | ||||||
| SK4-F | 1.52 mm 300 Series Stainless Steel | 45.4 | 1300 | 900 |
| TYPE | TEST SHEET MATERIAL | INSTALLATION (lbs.) | PUSHOUT (lbs.) | SIDE-LOAD FORCE MAX. (lbs.) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKC-F | .060" 5052-H34 Aluminum | 1100 | 120 | 120 | ||||||
| SK4-F | .060" 5052-H34 Aluminum | – | – | – | ||||||
| SKC-F | .060" Cold-Rolled Steel | 2100 | 160 | 185 | ||||||
| SK4-F | .060" Cold-Rolled Steel | – | – | – | ||||||
| SKC-F | .060" 300 Series Stainless Steel | – | – | – | ||||||
| SK4-F | .060" 300 Series Stainless Steel | 10210 | 292 | 202 |
| TYPE | TEST SHEET MATERIALS | INSTALLATION (kN) | PUSHOUT (N) | SIDE-LOAD FORCE MAX. (N) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKS-R1.5-2.5-ZI | 1 mm Cold-Rolled Steel HRB 67 | 14.2 | 711 | 850 | ||||||
| SKS-R1.5-3.2-ZI | 1 mm Cold-Rolled Steel HRB 67 | 17.8 | 800 | 950 | ||||||
| SKS-R1.5-4.0-ZI | 1 mm Cold-Rolled Steel HRB 67 | 22.3 | 800 | 1150 | ||||||
| SKS-R2.0-2.5-ZI | 1 mm Cold-Rolled Steel HRB 67 | 14.2 | 711 | 750 | ||||||
| SKS-R2.0-3.2-ZI | 1 mm Cold-Rolled Steel HRB 67 | 17.8 | 800 | 850 | ||||||
| SKS-R2.0-4.0-ZI | 1 mm Cold-Rolled Steel HRB 67 | 22.3 | 800 | 1000 | ||||||
| SKS-R2.5-2.5-ZI | 1 mm Cold-Rolled Steel HRB 67 | 14.2 | 711 | 550 | ||||||
| SKS-R2.5-3.2-ZI | 1 mm Cold-Rolled Steel HRB 67 | 17.8 | 800 | 610 | ||||||
| SKS-R2.5-4.0-ZI | 1 mm Cold-Rolled Steel HRB 67 | 22.3 | 800 | 810 |
| TYPE | TEST SHEET MATERIALS | INSTALLATION (lbs.) | PUSHOUT (lbs.) | SIDE-LOAD FORCE MAX. (lbs.) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKS-R1.5-2.5-ZI | .040" Cold-Rolled Steel HRB 67 | 3200 | 160 | 191 | ||||||
| SKS-R1.5-3.2-ZI | .040" Cold-Rolled Steel HRB 67 | 4000 | 180 | 213 | ||||||
| SKS-R1.5-4.0-ZI | .040" Cold-Rolled Steel HRB 67 | 5000 | 180 | 258 | ||||||
| SKS-R2.0-2.5-ZI | .040" Cold-Rolled Steel HRB 67 | 3200 | 160 | 169 | ||||||
| SKS-R2.0-3.2-ZI | .040" Cold-Rolled Steel HRB 67 | 4000 | 180 | 191 | ||||||
| SKS-R2.0-4.0-ZI | .040" Cold-Rolled Steel HRB 67 | 5000 | 180 | 225 | ||||||
| SKS-R2.5-2.5-ZI | .040" Cold-Rolled Steel HRB 67 | 3200 | 160 | 124 | ||||||
| SKS-R2.5-3.2-ZI | .040" Cold-Rolled Steel HRB 67 | 4000 | 180 | 137 | ||||||
| SKS-R2.5-4.0-ZI | .040" Cold-Rolled Steel HRB 67 | 5000 | 180 | 182 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| HSK4-R | HSK4-R1.5-2.5 | 1.2mm 300 Series Stainless Steel | 32 | 1400 | 1000 |
| HSK4-R | HSK4-R1.5-3.2 | 1.2mm 300 Series Stainless Steel | 35 | 1500 | 950 |
| HSK4-R | HSK4-R1.5-4.0 | 1.2mm 300 Series Stainless Steel | 42 | 1500 | 900 |
| HSK4-R | HSK4-R2.0-2.5 | 1.2mm 300 Series Stainless Steel | 32 | 1400 | 1000 |
| HSK4-R | HSK4-R2.0-3.2 | 1.2mm 300 Series Stainless Steel | 35 | 1500 | 950 |
| HSK4-R | HSK4-R2.0-4.0 | 1.2mm 300 Series Stainless Steel | 42 | 1500 | 900 |
| HSK4-R | HSK4-R2.5-2.5 | 1.2mm 300 Series Stainless Steel | 32 | 1400 | 1000 |
| HSK4-R | HSK4-R2.5-3.2 | 1.2mm 300 Series Stainless Steel | 35 | 1500 | 950 |
| HSK4-R | HSK4-R2.5-4.0 | 1.2mm 300 Series Stainless Steel | 42 | 1500 | 900 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| HSK4-R | HSK4-R1.5-2.5 | .047" 300 Series Stainless Steel | 7194 | 315 | 225 |
| HSK4-R | HSK4-R1.5-3.2 | .047" 300 Series Stainless Steel | 7868 | 337 | 214 |
| HSK4-R | HSK4-R1.5-4.0 | .047" 300 Series Stainless Steel | 9442 | 337 | 202 |
| HSK4-R | HSK4-R2.0-2.5 | .047" 300 Series Stainless Steel | 7194 | 315 | 225 |
| HSK4-R | HSK4-R2.0-3.2 | .047" 300 Series Stainless Steel | 7868 | 337 | 214 |
| HSK4-R | HSK4-R2.0-4.0 | .047" 300 Series Stainless Steel | 9442 | 337 | 202 |
| HSK4-R | HSK4-R2.5-2.5 | .047" 300 Series Stainless Steel | 7194 | 315 | 225 |
| HSK4-R | HSK4-R2.5-3.2 | .047" 300 Series Stainless Steel | 7868 | 337 | 214 |
| HSK4-R | HSK4-R2.5-4.0 | .047" 300 Series Stainless Steel | 9442 | 337 | 202 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| HSKC-R | HSKC-R1.5-2.5 | 1.2mm Cold-Rolled Steel | 17.8 | 1000 | 900 |
| HSKC-R | HSKC-R1.5-3.2 | 1.2mm Cold-Rolled Steel | 22.3 | 1100 | 850 |
| HSKC-R | HSKC-R1.5-4.0 | 1.2mm Cold-Rolled Steel | 24.5 | 1200 | 800 |
| HSKC-R | HSKC-R2.0-2.5 | 1.2mm Cold-Rolled Steel | 17.8 | 1000 | 900 |
| HSKC-R | HSKC-R2.0-3.2 | 1.2mm Cold-Rolled Steel | 22.3 | 1100 | 850 |
| HSKC-R | HSKC-R2.0-4.0 | 1.2mm Cold-Rolled Steel | 24.5 | 1200 | 800 |
| HSKC-R | HSKC-R2.5-2.5 | 1.2mm Cold-Rolled Steel | 17.8 | 1000 | 900 |
| HSKC-R | HSKC-R2.5-3.2 | 1.2mm Cold-Rolled Steel | 22.3 | 1100 | 850 |
| HSKC-R | HSKC-R2.5-4.0 | 1.2mm Cold-Rolled Steel | 24.5 | 1200 | 800 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| HSKC-R | HSKC-R1.5-2.5 | .047" Cold-Rolled Steel | 4002 | 225 | 202 |
| HSKC-R | HSKC-R1.5-3.2 | .047" Cold-Rolled Steel | 5013 | 247 | 191 |
| HSKC-R | HSKC-R1.5-4.0 | .047" Cold-Rolled Steel | 5508 | 270 | 180 |
| HSKC-R | HSKC-R2.0-2.5 | .047" Cold-Rolled Steel | 4002 | 225 | 202 |
| HSKC-R | HSKC-R2.0-3.2 | .047" Cold-Rolled Steel | 5013 | 247 | 191 |
| HSKC-R | HSKC-R2.0-4.0 | .047" Cold-Rolled Steel | 5508 | 2701 | 180 |
| HSKC-R | HSKC-R2.5-2.5 | .047" Cold-Rolled Steel | 4002 | 225 | 202 |
| HSKC-R | HSKC-R2.5-3.2 | .047" Cold-Rolled Steel | 5013 | 247 | 191 |
| HSKC-R | HSKC-R2.5-4.0 | .047" Cold-Rolled Steel | 5508 | 270 | 180 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| HSKS-R | HSKS-R1.5-2.5 | 1.2mm Cold-Rolled Steel | 17.8 | 1000 | 900 |
| HSKS-R | HSKS-R1.5-3.2 | 1.2mm Cold-Rolled Steel | 22.3 | 1100 | 850 |
| HSKS-R | HSKS-R1.5-4.0 | 1.2mm Cold-Rolled Steel | 24.5 | 1200 | 800 |
| HSKS-R | HSKS-R2.0-2.5 | 1.2mm Cold-Rolled Steel | 17.8 | 1000 | 900 |
| HSKS-R | HSKS-R2.0-3.2 | 1.2mm Cold-Rolled Steel | 22.3 | 1100 | 850 |
| HSKS-R | HSKS-R2.0-4.0 | 1.2mm Cold-Rolled Steel | 24.5 | 1200 | 800 |
| HSKS-R | HSKS-R2.5-2.5 | 1.2mm Cold-Rolled Steel | 17.8 | 1000 | 900 |
| HSKS-R | HSKS-R2.5-3.2 | 1.2mm Cold-Rolled Steel | 22.3 | 1100 | 850 |
| HSKS-R | HSKS-R2.5-4.0 | 1.2mm Cold-Rolled Steel | 24.5 | 1200 | 800 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| HSKS-R | HSKS-R1.5-2.5 | .047" Cold-Rolled Steel | 4002 | 225 | 202 |
| HSKS-R | HSKS-R1.5-3.2 | .047" Cold-Rolled Steel | 5013 | 247 | 191 |
| HSKS-R | HSKS-R1.5-4.0 | .047" Cold-Rolled Steel | 5508 | 270 | 180 |
| HSKS-R | HSKS-R2.0-2.5 | .047" Cold-Rolled Steel | 4002 | 225 | 202 |
| HSKS-R | HSKS-R2.0-3.2 | .047" Cold-Rolled Steel | 5013 | 247 | 191 |
| HSKS-R | HSKS-R2.0-4.0 | .047" Cold-Rolled Steel | 5508 | 270 | 180 |
| HSKS-R | HSKS-R2.5-2.5 | .047" Cold-Rolled Steel | 4002 | 225 | 202 |
| HSKS-R | HSKS-R2.5-3.2 | .047" Cold-Rolled Steel | 5013 | 247 | 191 |
| HSKS-R | HSKS-R2.5-4.0 | .047" Cold-Rolled Steel | 5508 | 270 | 180 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (kN.) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| SK4-R | SK4-R1.5-2.5 | 1mm 300 Series Stainless Steel | 14.2 | 711 | 850 |
| SK4-R | SK4-R1.5-3.2 | 1mm 300 Series Stainless Steel | 17.8 | 800 | 950 |
| SK4-R | SK4-R1.5-4.0 | 1mm 300 Series Stainless Steel | 22.3 | 800 | 11150 |
| SK4-R | SK4-R2.0-2.5 | 1mm 300 Series Stainless Steel | 14.2 | 711 | 750 |
| SK4-R | SK4-R2.0-3.2 | 1mm 300 Series Stainless Steel | 17.8 | 800 | 850 |
| SK4-R | SK4-R2.0-4.0 | 1mm 300 Series Stainless Steel | 22.3 | 800 | 950 |
| SK4-R | SK4-R2.5-2.5 | 1mm 300 Series Stainless Steel | 14.2 | 711 | 1150 |
| SK4-R | SK4-R2.5-3.2 | 1mm 300 Series Stainless Steel | 17.8 | 800 | 850 |
| SK4-R | SK4-R2.5-4.0 | 1mm 300 Series Stainless Steel | 22.3 | 800 | 950 |
| 1150 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| SK4-R | SK4-R1.5-2.5 | .040" 300 Series Stainless Steel | 6115 | 270 | 214 |
| SK4-R | SK4-R1.5-3.2 | .040" 300 Series Stainless Steel | 6812 | 292 | 202 |
| SK4-R | SK4-R1.5-4.0 | .040" 300 Series Stainless Steel | 7419 | 315 | 191 |
| SK4-R | SK4-R2.0-2.5 | .040" 300 Series Stainless Steel | 6115 | 270 | 214 |
| SK4-R | SK4-R2.0-3.2 | .040" 300 Series Stainless Steel | 6812 | 292 | 202 |
| SK4-R | SK4-R2.0-4.0 | .040" 300 Series Stainless Steel | 7419 | 315 | 191 |
| SK4-R | SK4-R2.5-2.5 | .040" 300 Series Stainless Steel | 6115 | 270 | 214 |
| SK4-R | SK4-R2.5-3.2 | .040" 300 Series Stainless Steel | 6812 | 292 | 202 |
| SK4-R | SK4-R2.5-4.0 | .040" 300 Series Stainless Steel | 7419 | 315 | 191 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| SKC-R | SKC-R1.5-2.5 | 1mm Cold-Rolled Steel | 15.6 | 800 | 850 |
| SKC-R | SKC-R1.5-3.2 | 1mm Cold-Rolled Steel | 17.8 | 800 | 800 |
| SKC-R | SKC-R1.5-4.0 | 1mm Cold-Rolled Steel | 25.6 | 900 | 750 |
| SKC-R | SKC-R2.0-2.5 | 1mm Cold-Rolled Steel | 15.6 | 800 | 850 |
| SKC-R | SKC-R2.0-3.2 | 1mm Cold-Rolled Steel | 17.8 | 800 | 800 |
| SKC-R | SKC-R2.0-4.0 | 1mm Cold-Rolled Steel | 25.6 | 900 | 750 |
| SKC-R | SKC-R2.5-2.5 | 1mm Cold-Rolled Steel | 15.6 | 800 | 850 |
| SKC-R | SKC-R2.5-3.2 | 1mm Cold-Rolled Steel | 17.8 | 800 | 800 |
| SKC-R | SKC-R2.5-4.0 | 1mm Cold-Rolled Steel | 25.6 | 900 | 750 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| SKC-R | SKC-R1.5-2.5 | .040" Cold-Rolled Steel | 3507 | 180 | 191 |
| SKC-R | SKC-R1.5-3.2 | .040" Cold-Rolled Steel | 4002 | 180 | 180 |
| SKC-R | SKC-R1.5-4.0 | .040" Cold-Rolled Steel | 5755 | 202 | 169 |
| SKC-R | SKC-R2.0-2.5 | .040" Cold-Rolled Steel | 3507 | 180 | 191 |
| SKC-R | SKC-R2.0-3.2 | .040" Cold-Rolled Steel | 4002 | 180 | 180 |
| SKC-R | SKC-R2.0-4.0 | .040" Cold-Rolled Steel | 5755 | 202 | 169 |
| SKC-R | SKC-R2.5-2.5 | .040" Cold-Rolled Steel | 3507 | 180 | 191 |
| SKC-R | SKC-R2.5-3.2 | .040" Cold-Rolled Steel | 4002 | 180 | 180 |
| SKC-R | SKC-R2.5-4.0 | .040" Cold-Rolled Steel | 5755 | 202 | 169 |
| Type | Body Size – Sheet Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| SKCF-F | SKCF-F1.5 | 1mm Cold-Rolled Steel | 11.2 | 711 | 822 |
| SKSF-F | SKSF-F1.5 | 1mm Cold-Rolled Steel | 11.2 | 711 | 822 |
| SK4F-F | SK4F-F1.5 | 1mm 300 Series Stainless Steel | 33.8 | 1000 | 900 |
| Type | Body Size – Sheet Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| SKCF-F | SKCF-F1.5 | .040 ” Cold-Rolled Steel | 2518 | 160 | 185 |
| SKSF-F | SKSF-F1.5 | .040” Cold-Rolled Steel | 2518 | 160 | 185 |
| SK4F-F | SK4F-F1.5 | .040” 300 Series Stainless Steel | 7600 | 225 | 202 |
| Type | Body Size – Sheet Code – Length | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| SKCF | SKCF-61.5-4 | 1.5mm Cold-Rolled Steel | 14.7 | 2000 | 1000 |
| SKCF | SKCF-61.5-6 | 1.5mm Cold-Rolled Steel | 14.7 | 2000 | 696 |
| SKCF | SKCF-61.5-8 | 1.5mm Cold-Rolled Steel | 14.7 | 2000 | 540 |
| SKCF | SKCF-61.5-10 | 1.5mm Cold-Rolled Steel | 14.7 | 2000 | 440 |
| SKSF | SKSF-61.5-4 | 1.5mm Cold-Rolled Steel | 14.7 | 2000 | 1000 |
| SKSF | SKSF-61.5-6 | 1.5mm Cold-Rolled Steel | 14.7 | 2000 | 696 |
| SKSF | SKSF-61.5-8 | 1.5mm Cold-Rolled Steel | 14.7 | 2000 | 540 |
| SKSF | SKSF-61.5-10 | 1.5mm Cold-Rolled Steel | 14.7 | 2000 | 440 |
| SK4F | SK4F-61.5-4 | 1.5mm 300 Series Stainless Steel | 40.1 | 2500 | 1300 |
| SK4F | SK4F-61.5-6 | 1.5mm 300 Series Stainless Steel | 40.1 | 2500 | 860 |
| SK4F | SK4F-61.5-8 | 1.5mm 300 Series Stainless Steel | 40.1 | 2500 | 710 |
| SK4F | SK4F-61.5-10 | 1.5mm 300 Series Stainless Steel | 40.1 | 2500 | 610 |
| Type | Body Size – Sheet Code – Length | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| SKCF | SKCF-6060-4 | .060" Cold-Rolled Steel | 3300 | 450 | 260 |
| SKCF | SKCF-6060-6 | .060" Cold-Rolled Steel | 3300 | 450 | 197 |
| SKCF | SKCF-6060-8 | .060" Cold-Rolled Steel | 3300 | 450 | 153 |
| SKCF | SKCF-6060-10 | .060" Cold-Rolled Steel | 3300 | 450 | 126 |
| SKCF | SKCF-6060-12 | .060" Cold-Rolled Steel | 3300 | 450 | 106 |
| SKSF | SKSF-6060-4 | .060" Cold-Rolled Steel | 3300 | 450 | 260 |
| SKSF | SKSF-6060-6 | .060" Cold-Rolled Steel | 3300 | 450 | 197 |
| SKSF | SKSF-6060-8 | .060" Cold-Rolled Steel | 3300 | 450 | 153 |
| SKSF | SKSF-6060-10 | .060" Cold-Rolled Steel | 3300 | 450 | 126 |
| SKSF | SKSF-6060-12 | .060" Cold-Rolled Steel | 3300 | 450 | 106 |
| SK4F | SK4F-6060-4 | .060" 300 Series Stainless Steel | 9000 | 560 | 300 |
| SK4F | SK4F-6060-6 | .060" 300 Series Stainless Steel | 9000 | 560 | 220 |
| SK4F | SK4F-6060-8 | .060" 300 Series Stainless Steel | 9000 | 560 | 180 |
| SK4F | SK4F-6060-10 | .060" 300 Series Stainless Steel | 9000 | 560 | 160 |
| SK4F | SK4F-6060-12 | .060" 300 Series Stainless Steel | 9000 | 560 | 140 |
| Type | Type – Sheet Code – Neck Dia. Code – Finish | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| SKS-R | SKS-R1.5-2.5-ZI | 1mm Cold-Rolled Steel | 14.2 | 711 | 850 |
| SKS-R | SKS-R1.5-3.2-ZI | 1mm Cold-Rolled Steel | 17.8 | 800 | 950 |
| SKS-R | SKS-R1.5-4.0-ZI | 1mm Cold-Rolled Steel | 22.3 | 800 | 1150 |
| SKS-R | SKS-R2.0-2.5-ZI | 1mm Cold-Rolled Steel | 14.2 | 711 | 750 |
| SKS-R | SKS-R2.0-3.2-ZI | 1mm Cold-Rolled Steel | 17.8 | 800 | 850 |
| SKS-R | SKS-R2.0-4.0-ZI | 1mm Cold-Rolled Steel | 22.3 | 800 | 1000 |
| SKS-R | SKS-R2.5-2.5-ZI | 1mm Cold-Rolled Steel | 14.2 | 711 | 550 |
| SKS-R | SKS-R2.5-3.2-ZI | 1mm Cold-Rolled Steel | 17.8 | 800 | 610 |
| SKS-R | SKS-R2.5-4.0-ZI | 1mm Cold-Rolled Steel | 22.3 | 800 | 810 |
| Type | Type – Sheet Code – Neck Dia. Code – Finish | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| SKS-R | SKS-R1.5-2.5-ZI | .040" Cold-Rolled Steel | 3200 | 160 | 191 |
| SKS-R | SKS-R1.5-3.2-ZI | .040" Cold-Rolled Steel | 4000 | 180 | 213 |
| SKS-R | SKS-R1.5-4.0-ZI | .040" Cold-Rolled Steel | 5000 | 180 | 258 |
| SKS-R | SKS-R2.0-2.5-ZI | .040" Cold-Rolled Steel | 3200 | 160 | 169 |
| SKS-R | SKS-R2.0-3.2-ZI | .040" Cold-Rolled Steel | 4000 | 180 | 191 |
| SKS-R | SKS-R2.0-4.0-ZI | .040" Cold-Rolled Steel | 5000 | 180 | 225 |
| SKS-R | SKS-R2.5-2.5-ZI | .040" Cold-Rolled Steel | 3200 | 160 | 124 |
| SKS-R | SKS-R2.5-3.2-ZI | .040" Cold-Rolled Steel | 4000 | 180 | 137 |
| SKS-R | SKS-R2.5-4.0-ZI | .040" Cold-Rolled Steel | 5000 | 180 | 182 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| TSK4-R | TSK4-R1.5-2.5 | 0.8mm Cold-Rolled Steel | 25.4 | 750 | 300 |
| TSK4-R | TSK4-R2.0-2.5 | 0.8mm Cold-Rolled Steel | 25.4 | 750 | 280 |
| TSK4-R | TSK4-R2.5-2.5 | .0.8mm Cold-Rolled Steel | 25.4 | 750 | 250 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| TSK4-R | TSK4-R1.5-2.5 | .032" Cold-Rolled Steel | 5710 | 169 | 68 |
| TSK4-R | TSK4-R2.0-2.5 | .032" Cold-Rolled Steel | 5710 | 169 | 63 |
| TSK4-R | TSK4-R2.5-2.5 | .032" Cold-Rolled Steel | 5710 | 169 | 56 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| TSKC-R | TSKC-R1.5-2.5 | 0.8mm Cold-Rolled Steel | 11.2 | 550 | 200 |
| TSKC-R | TSKC-R2.0-2.5 | 0.8mm Cold-Rolled Steel | 11.2 | 550 | 180 |
| TSKC-R | TSKC-R2.5-2.5 | 0.8mm Cold-Rolled Steel | 11.2 | 500 | 150 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| TSKC-R | TSKC-R1.5-2.5 | .032" Cold-Rolled Steel | 2518 | 124 | 45 |
| TSKC-R | TSKC-R2.0-2.5 | .032" Cold-Rolled Steel | 2518 | 124 | 41 |
| TSKC-R | TSKC-R2.5-2.5 | .032" Cold-Rolled Steel | 2518 | 124 | 34 |
| Type | Body Size – Sheet Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| TSKCF-F | TSKCF-F1.5 | .08mm Cold-Rolled Steel | 9.8 | 500 | 180 |
| TSKSF-F | TSKSF-F1.5 | .08mm Cold-Rolled Steel | 9.8 | 500 | 180 |
| TSK4F-F | TSK4F-F1.5 | .08mm 300 Series Stainless Steel | 30.2 | 750 | 250 |
| Type | Body Size – Sheet Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| TSKCF-F | TSKCF-F1.5 | .032" Cold-Rolled Steel | 2203 | 112 | 41 |
| TSKSF-F | TSKSF-F1.5 | .032" Cold-Rolled Steel | 2203 | 112 | 41 |
| TSK4F-F | TSK4F-F1.5 | .032" 300 Series Stainless Steel | 6789 | 169 | 56 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| TSKS-R | TSKS-R1.5-2.5 | 0.8mm Cold-Rolled Steel | 11.2 | 550 | 200 |
| TSKS-R | TSKS-R2.0-2.5 | 0.8mm Cold-Rolled Steel | 11.2 | 550 | 180 |
| TSKS-R | TSKS-R2.5-2.5 | 0.8mm Cold-Rolled Steel | 11.2 | 500 | 150 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| TSKS-R | TSKS-R1.5-2.5 | .032" Cold-Rolled Steel | 2518 | 124 | 45 |
| TSKS-R | TSKS-R2.0-2.5 | .032" Cold-Rolled Steel | 2518 | 124 | 41 |
| TSKS-R | TSKS-R2.5-2.5 | .032" Cold-Rolled Steel | 2518 | 124 | 34 |
Inventory
| Distributor | Quantity | Contact | Phone | Address | Locations |
|---|
