SKC-61.5-16
KEYHOLE® Self-clinching Standoffs Type SKC™
SKC-61.5-16
KEYHOLE® Self-clinching Standoffs Type SKC™

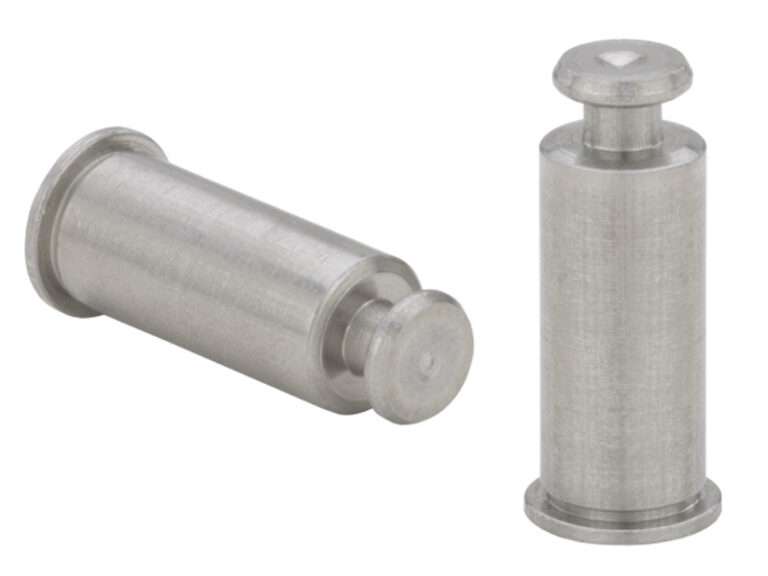

PEM® KEYHOLE® Standoffs are designed so that a PC board or panel can be quickly slipped into place and then removed from an assembly by simply sliding the board sideways and lifting it off. PEM KEYHOLE fasteners can save valuable time and dramatically reduce the amount of loose hardware required. Type SKC can be used for spacing or hanging of replaceable components. Typically, several SKC standoffs are used with one standard PEM threaded standoff which accepts a screw to secure the board or component against any unwanted movement.
Type SKC – Allows detachable spacing of two sheets
- Clinch feature mounts fastener permanently into metal sheet.
- Unique barrel design allows for quick attachment and detachment.
- Head is flush with one side of metal sheet.
- Makes horizontal or vertical component mounting possible.
Specifications
- Fastener Material
- 300 Series Stainless Steel
- Panel 2 (Top) Material
- Any
- Standard Material
- 300 Series Stainless Steel
- Standard Finish
- Passivated and/or tested, Passivated and/or tested per ASTM A380
- Panel 1 (Bottom) Sheet Hardness Max.
- HRB 70 / HB 125
- Product Category
- KEYHOLE® Self-clinching Standoffs Type SKC™
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 103723
- Application Type
- Datacom, Industrial, Telecom
- Base Panel Material
- Aluminum, Steel
- Brand
- PEM
- Fastener Characteristics
- Unthreaded
- Industry
- Datacom & Telecom, Industrial & Commercial
- Installation Equipment/Method
- C-Frame Automatic Feed, C-Frame Manual Feed
- L Len Pm 005in Or 13mm
- 16mm
- PEM Product Family
- SK
- Product Type
- Standoffs
- Technology Type
- Self-Clinching
- Unit (Metric/Unified)
- Metric

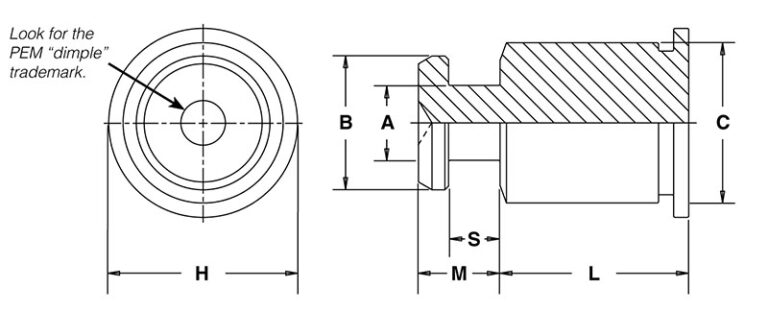

- A ± 0.08_mm
- 2.51mm
- B ± 0.08_mm
- 4.5mm
- D Anvil Hole + 0.08_mm
- 5.39mm
- H Nom._mm
- 6.35mm
- M Max._mm
- 2.75mm
- C Max._mm
- 5.39mm
- Panel 1 (Bottom) Edge Distance C1 Min._mm
- 6.60mm
- Panel 1 (Bottom) Location Tolerance Max._in
- ±.130in
- Panel 1 (Bottom) Mounting Hole B + 0.08_mm
- 5.41mm
- Panel 1 (Bottom) Sheet Thickness Min._mm
- 1.02mm
- Panel 2 (Top) Edge Distance C2 Min._mm
- 4.1mm
- Panel 2 (Top) Mounting Hole A1 Nom._mm
- 1.5mm
- Panel 2 (Top) Mounting Hole A2 ± 0.08_mm
- 3mm
- Panel 2 (Top) Mounting Hole A3 ± 0.08_mm
- 5mm
- Panel 2 (Top) Mounting Hole A4 Min._mm
- 3.75mm
- Panel 2 (Top) Thickness Range_mm
- 1.45 to 1.62mm
- S ± 0.08_mm
- 1.72mm
Resources
Installation & Performance Data
| TYPE | BODY SIZE – SHEET CODE | TEST SHEET MATERIAL | INSTALLATION (kN) | PUSHOUT (N) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKC, SK4 | SKC-61.5 | 1.52 mm 5052-H34 Aluminum | 7.1 | 1100 | ||||||
| SKC, SK4 | SK4-61.5 | 1.52 mm 5052-H34 Aluminum | – | – | ||||||
| SKC, SK4 | SKC-61.5 | 1.52 mm Cold-Rolled Steel | 14.2 | 2600 | ||||||
| SKC, SK4 | SK4-61.5 | 1.52 mm Cold-Rolled Steel | – | – | ||||||
| SKC, SK4 | SKC-61.5 | 1.52 mm 300 Series Stainless Steel | – | – | ||||||
| SKC, SK4 | SK4-61.5 | 1.52 mm 300 Series Stainless Steel | 40.1 | 3200 |
| TYPE | BODY SIZE – SHEET CODE | TEST SHEET THICK | TEST SHEET MATERIAL | LENGTH CODES | SIDE-LOAD FORCE MAX. (N) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKC, SK4 | SKC-61.5 | 1 mm | 5052-H34 Aluminum | -2 | 545 | |||||
| SKC, SK4 | SKC-61.5 | 1 mm | 5052-H34 Aluminum | -4 | 370 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -6 | 296 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -8 | 228 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -10 | 184 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -12 | 156 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -14 | 136 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -16 | 116 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -18 | 104 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -20 | 96 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -22 | 88 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 5052-H34 Aluminum | -25 | 76 | |||||
| SKC, SK4 | SKC-61.5 | 1 mm | Cold-Rolled Steel | -2 | 735 | |||||
| SKC, SK4 | SKC-61.5 | 1 mm | Cold-Rolled Steel | -4 | 490 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -6 | 696 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -8 | 540 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -10 | 440 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -12 | 372 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -14 | 320 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -16 | 280 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -18 | 252 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -20 | 228 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -22 | 208 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | Cold-Rolled Steel | -25 | 184 | |||||
| SKC, SK4 | SKC-61.5 | 1 mm | 300 Series Stainless Steel | -2 | 1690 | |||||
| SKC, SK4 | SKC-61.5 | 1 mm | 300 Series Stainless Steel | -4 | 1140 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -6 | 860 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -8 | 710 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -10 | 610 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -12 | 540 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -14 | 480 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -16 | 440 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -18 | 400 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -20 | 380 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -22 | 320 | |||||
| SKC, SK4 | SKC-61.5 | 1.52 mm | 300 Series Stainless Steel | -25 | 250 |
| TYPE | BODY SIZE – SHEET CODE | TEST SHEET THICK | TEST SHEET MATERIAL | LENGTH CODES | SIDE-LOAD FORCE MAX. (lbs.) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKC, SK4 | SKC-6060 | 0.040" | 5052-H34 Aluminum | -2 | 130 | |||||
| SKC, SK4 | SKC-6060 | 0.040" | 5052-H34 Aluminum | -4 | 95 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -6 | 82 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -8 | 63 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -10 | 52 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -12 | 44 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -14 | 38 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -16 | 34 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -18 | 30 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -20 | 27 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -24 | 22 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -28 | 19 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 5052-H34 Aluminum | -32 | 17 | |||||
| SKC, SK4 | SKC-6060 | 0.040" | Cold-Rolled Steel | -2 | 185 | |||||
| SKC, SK4 | SKC-6060 | 0.040" | Cold-Rolled Steel | -4 | 120 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -6 | 197 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -8 | 153 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -10 | 126 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -12 | 106 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -14 | 92 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -16 | 81 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -18 | 71 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -20 | 66 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -24 | 55 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -28 | 47 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | Cold-Rolled Steel | -32 | 42 | |||||
| SKC, SK4 | SKC-6060 | 0.040" | 300 Series Stainless Steel | -2 | 400 | |||||
| SKC, SK4 | SKC-6060 | 0.040" | 300 Series Stainless Steel | -4 | 300 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -6 | 220 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -8 | 180 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -10 | 160 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -12 | 140 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -14 | 120 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -16 | 110 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -18 | 100 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -20 | 100 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -24 | 80 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -28 | 70 | |||||
| SKC, SK4 | SKC-6060 | 0.060" | 300 Series Stainless Steel | -32 | 50 |
| TYPE | BODY SIZE – SHEET CODE | TEST SHEET MATERIAL | INSTALLATION (lbs.) | PUSHOUT (lbs.) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKC, SK4 | SKC-6060 | .060" 5052-H34 Aluminum | 1600 | 250 | ||||||
| SKC, SK4 | SK4-6060 | .060" 5052-H34 Aluminum | – | – | ||||||
| SKC, SK4 | SKC-6060 | .060" Cold-Rolled Steel | 3200 | 600 | ||||||
| SKC, SK4 | SK4-6060 | .060" Cold-Rolled Steel | – | – | ||||||
| SKC, SK4 | SKC-6060 | .060" 300 Series Stainless Steel | – | – | ||||||
| SKC, SK4 | SK4-6060 | .060" 300 Series Stainless Steel | 9015 | 720 |
| TYPE | TEST SHEET MATERIAL | INSTALLATION (kN) | PUSHOUT (N) | SIDE-LOAD FORCE MAX. (N) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKC-F | 1.52 mm 5052-H34 Aluminum | 4.9 | 533 | 533 | ||||||
| SK4-F | 1.52 mm 5052-H34 Aluminum | – | – | – | ||||||
| SKC-F | 1.52 mm Cold-Rolled Steel | 9.3 | 711 | 822 | ||||||
| SK4-F | 1.52 mm Cold-Rolled Steel | – | – | – | ||||||
| SKC-F | 1.52 mm 300 Series Stainless Steel | – | – | – | ||||||
| SK4-F | 1.52 mm 300 Series Stainless Steel | 45.4 | 1300 | 900 |
| TYPE | TEST SHEET MATERIAL | INSTALLATION (lbs.) | PUSHOUT (lbs.) | SIDE-LOAD FORCE MAX. (lbs.) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKC-F | .060" 5052-H34 Aluminum | 1100 | 120 | 120 | ||||||
| SK4-F | .060" 5052-H34 Aluminum | – | – | – | ||||||
| SKC-F | .060" Cold-Rolled Steel | 2100 | 160 | 185 | ||||||
| SK4-F | .060" Cold-Rolled Steel | – | – | – | ||||||
| SKC-F | .060" 300 Series Stainless Steel | – | – | – | ||||||
| SK4-F | .060" 300 Series Stainless Steel | 10210 | 292 | 202 |
| TYPE | TEST SHEET MATERIALS | INSTALLATION (kN) | PUSHOUT (N) | SIDE-LOAD FORCE MAX. (N) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKS-R1.5-2.5-ZI | 1 mm Cold-Rolled Steel HRB 67 | 14.2 | 711 | 850 | ||||||
| SKS-R1.5-3.2-ZI | 1 mm Cold-Rolled Steel HRB 67 | 17.8 | 800 | 950 | ||||||
| SKS-R1.5-4.0-ZI | 1 mm Cold-Rolled Steel HRB 67 | 22.3 | 800 | 1150 | ||||||
| SKS-R2.0-2.5-ZI | 1 mm Cold-Rolled Steel HRB 67 | 14.2 | 711 | 750 | ||||||
| SKS-R2.0-3.2-ZI | 1 mm Cold-Rolled Steel HRB 67 | 17.8 | 800 | 850 | ||||||
| SKS-R2.0-4.0-ZI | 1 mm Cold-Rolled Steel HRB 67 | 22.3 | 800 | 1000 | ||||||
| SKS-R2.5-2.5-ZI | 1 mm Cold-Rolled Steel HRB 67 | 14.2 | 711 | 550 | ||||||
| SKS-R2.5-3.2-ZI | 1 mm Cold-Rolled Steel HRB 67 | 17.8 | 800 | 610 | ||||||
| SKS-R2.5-4.0-ZI | 1 mm Cold-Rolled Steel HRB 67 | 22.3 | 800 | 810 |
| TYPE | TEST SHEET MATERIALS | INSTALLATION (lbs.) | PUSHOUT (lbs.) | SIDE-LOAD FORCE MAX. (lbs.) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKS-R1.5-2.5-ZI | .040" Cold-Rolled Steel HRB 67 | 3200 | 160 | 191 | ||||||
| SKS-R1.5-3.2-ZI | .040" Cold-Rolled Steel HRB 67 | 4000 | 180 | 213 | ||||||
| SKS-R1.5-4.0-ZI | .040" Cold-Rolled Steel HRB 67 | 5000 | 180 | 258 | ||||||
| SKS-R2.0-2.5-ZI | .040" Cold-Rolled Steel HRB 67 | 3200 | 160 | 169 | ||||||
| SKS-R2.0-3.2-ZI | .040" Cold-Rolled Steel HRB 67 | 4000 | 180 | 191 | ||||||
| SKS-R2.0-4.0-ZI | .040" Cold-Rolled Steel HRB 67 | 5000 | 180 | 225 | ||||||
| SKS-R2.5-2.5-ZI | .040" Cold-Rolled Steel HRB 67 | 3200 | 160 | 124 | ||||||
| SKS-R2.5-3.2-ZI | .040" Cold-Rolled Steel HRB 67 | 4000 | 180 | 137 | ||||||
| SKS-R2.5-4.0-ZI | .040" Cold-Rolled Steel HRB 67 | 5000 | 180 | 182 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| HSK4-R | HSK4-R1.5-2.5 | 1.2mm 300 Series Stainless Steel | 32 | 1400 | 1000 |
| HSK4-R | HSK4-R1.5-3.2 | 1.2mm 300 Series Stainless Steel | 35 | 1500 | 950 |
| HSK4-R | HSK4-R1.5-4.0 | 1.2mm 300 Series Stainless Steel | 42 | 1500 | 900 |
| HSK4-R | HSK4-R2.0-2.5 | 1.2mm 300 Series Stainless Steel | 32 | 1400 | 1000 |
| HSK4-R | HSK4-R2.0-3.2 | 1.2mm 300 Series Stainless Steel | 35 | 1500 | 950 |
| HSK4-R | HSK4-R2.0-4.0 | 1.2mm 300 Series Stainless Steel | 42 | 1500 | 900 |
| HSK4-R | HSK4-R2.5-2.5 | 1.2mm 300 Series Stainless Steel | 32 | 1400 | 1000 |
| HSK4-R | HSK4-R2.5-3.2 | 1.2mm 300 Series Stainless Steel | 35 | 1500 | 950 |
| HSK4-R | HSK4-R2.5-4.0 | 1.2mm 300 Series Stainless Steel | 42 | 1500 | 900 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| HSK4-R | HSK4-R1.5-2.5 | .047" 300 Series Stainless Steel | 7194 | 315 | 225 |
| HSK4-R | HSK4-R1.5-3.2 | .047" 300 Series Stainless Steel | 7868 | 337 | 214 |
| HSK4-R | HSK4-R1.5-4.0 | .047" 300 Series Stainless Steel | 9442 | 337 | 202 |
| HSK4-R | HSK4-R2.0-2.5 | .047" 300 Series Stainless Steel | 7194 | 315 | 225 |
| HSK4-R | HSK4-R2.0-3.2 | .047" 300 Series Stainless Steel | 7868 | 337 | 214 |
| HSK4-R | HSK4-R2.0-4.0 | .047" 300 Series Stainless Steel | 9442 | 337 | 202 |
| HSK4-R | HSK4-R2.5-2.5 | .047" 300 Series Stainless Steel | 7194 | 315 | 225 |
| HSK4-R | HSK4-R2.5-3.2 | .047" 300 Series Stainless Steel | 7868 | 337 | 214 |
| HSK4-R | HSK4-R2.5-4.0 | .047" 300 Series Stainless Steel | 9442 | 337 | 202 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| HSKC-R | HSKC-R1.5-2.5 | 1.2mm Cold-Rolled Steel | 17.8 | 1000 | 900 |
| HSKC-R | HSKC-R1.5-3.2 | 1.2mm Cold-Rolled Steel | 22.3 | 1100 | 850 |
| HSKC-R | HSKC-R1.5-4.0 | 1.2mm Cold-Rolled Steel | 24.5 | 1200 | 800 |
| HSKC-R | HSKC-R2.0-2.5 | 1.2mm Cold-Rolled Steel | 17.8 | 1000 | 900 |
| HSKC-R | HSKC-R2.0-3.2 | 1.2mm Cold-Rolled Steel | 22.3 | 1100 | 850 |
| HSKC-R | HSKC-R2.0-4.0 | 1.2mm Cold-Rolled Steel | 24.5 | 1200 | 800 |
| HSKC-R | HSKC-R2.5-2.5 | 1.2mm Cold-Rolled Steel | 17.8 | 1000 | 900 |
| HSKC-R | HSKC-R2.5-3.2 | 1.2mm Cold-Rolled Steel | 22.3 | 1100 | 850 |
| HSKC-R | HSKC-R2.5-4.0 | 1.2mm Cold-Rolled Steel | 24.5 | 1200 | 800 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| HSKC-R | HSKC-R1.5-2.5 | .047" Cold-Rolled Steel | 4002 | 225 | 202 |
| HSKC-R | HSKC-R1.5-3.2 | .047" Cold-Rolled Steel | 5013 | 247 | 191 |
| HSKC-R | HSKC-R1.5-4.0 | .047" Cold-Rolled Steel | 5508 | 270 | 180 |
| HSKC-R | HSKC-R2.0-2.5 | .047" Cold-Rolled Steel | 4002 | 225 | 202 |
| HSKC-R | HSKC-R2.0-3.2 | .047" Cold-Rolled Steel | 5013 | 247 | 191 |
| HSKC-R | HSKC-R2.0-4.0 | .047" Cold-Rolled Steel | 5508 | 2701 | 180 |
| HSKC-R | HSKC-R2.5-2.5 | .047" Cold-Rolled Steel | 4002 | 225 | 202 |
| HSKC-R | HSKC-R2.5-3.2 | .047" Cold-Rolled Steel | 5013 | 247 | 191 |
| HSKC-R | HSKC-R2.5-4.0 | .047" Cold-Rolled Steel | 5508 | 270 | 180 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| HSKS-R | HSKS-R1.5-2.5 | 1.2mm Cold-Rolled Steel | 17.8 | 1000 | 900 |
| HSKS-R | HSKS-R1.5-3.2 | 1.2mm Cold-Rolled Steel | 22.3 | 1100 | 850 |
| HSKS-R | HSKS-R1.5-4.0 | 1.2mm Cold-Rolled Steel | 24.5 | 1200 | 800 |
| HSKS-R | HSKS-R2.0-2.5 | 1.2mm Cold-Rolled Steel | 17.8 | 1000 | 900 |
| HSKS-R | HSKS-R2.0-3.2 | 1.2mm Cold-Rolled Steel | 22.3 | 1100 | 850 |
| HSKS-R | HSKS-R2.0-4.0 | 1.2mm Cold-Rolled Steel | 24.5 | 1200 | 800 |
| HSKS-R | HSKS-R2.5-2.5 | 1.2mm Cold-Rolled Steel | 17.8 | 1000 | 900 |
| HSKS-R | HSKS-R2.5-3.2 | 1.2mm Cold-Rolled Steel | 22.3 | 1100 | 850 |
| HSKS-R | HSKS-R2.5-4.0 | 1.2mm Cold-Rolled Steel | 24.5 | 1200 | 800 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| HSKS-R | HSKS-R1.5-2.5 | .047" Cold-Rolled Steel | 4002 | 225 | 202 |
| HSKS-R | HSKS-R1.5-3.2 | .047" Cold-Rolled Steel | 5013 | 247 | 191 |
| HSKS-R | HSKS-R1.5-4.0 | .047" Cold-Rolled Steel | 5508 | 270 | 180 |
| HSKS-R | HSKS-R2.0-2.5 | .047" Cold-Rolled Steel | 4002 | 225 | 202 |
| HSKS-R | HSKS-R2.0-3.2 | .047" Cold-Rolled Steel | 5013 | 247 | 191 |
| HSKS-R | HSKS-R2.0-4.0 | .047" Cold-Rolled Steel | 5508 | 270 | 180 |
| HSKS-R | HSKS-R2.5-2.5 | .047" Cold-Rolled Steel | 4002 | 225 | 202 |
| HSKS-R | HSKS-R2.5-3.2 | .047" Cold-Rolled Steel | 5013 | 247 | 191 |
| HSKS-R | HSKS-R2.5-4.0 | .047" Cold-Rolled Steel | 5508 | 270 | 180 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (kN.) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| SK4-R | SK4-R1.5-2.5 | 1mm 300 Series Stainless Steel | 14.2 | 711 | 850 |
| SK4-R | SK4-R1.5-3.2 | 1mm 300 Series Stainless Steel | 17.8 | 800 | 950 |
| SK4-R | SK4-R1.5-4.0 | 1mm 300 Series Stainless Steel | 22.3 | 800 | 11150 |
| SK4-R | SK4-R2.0-2.5 | 1mm 300 Series Stainless Steel | 14.2 | 711 | 750 |
| SK4-R | SK4-R2.0-3.2 | 1mm 300 Series Stainless Steel | 17.8 | 800 | 850 |
| SK4-R | SK4-R2.0-4.0 | 1mm 300 Series Stainless Steel | 22.3 | 800 | 950 |
| SK4-R | SK4-R2.5-2.5 | 1mm 300 Series Stainless Steel | 14.2 | 711 | 1150 |
| SK4-R | SK4-R2.5-3.2 | 1mm 300 Series Stainless Steel | 17.8 | 800 | 850 |
| SK4-R | SK4-R2.5-4.0 | 1mm 300 Series Stainless Steel | 22.3 | 800 | 950 |
| 1150 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| SK4-R | SK4-R1.5-2.5 | .040" 300 Series Stainless Steel | 6115 | 270 | 214 |
| SK4-R | SK4-R1.5-3.2 | .040" 300 Series Stainless Steel | 6812 | 292 | 202 |
| SK4-R | SK4-R1.5-4.0 | .040" 300 Series Stainless Steel | 7419 | 315 | 191 |
| SK4-R | SK4-R2.0-2.5 | .040" 300 Series Stainless Steel | 6115 | 270 | 214 |
| SK4-R | SK4-R2.0-3.2 | .040" 300 Series Stainless Steel | 6812 | 292 | 202 |
| SK4-R | SK4-R2.0-4.0 | .040" 300 Series Stainless Steel | 7419 | 315 | 191 |
| SK4-R | SK4-R2.5-2.5 | .040" 300 Series Stainless Steel | 6115 | 270 | 214 |
| SK4-R | SK4-R2.5-3.2 | .040" 300 Series Stainless Steel | 6812 | 292 | 202 |
| SK4-R | SK4-R2.5-4.0 | .040" 300 Series Stainless Steel | 7419 | 315 | 191 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| SKC-R | SKC-R1.5-2.5 | 1mm Cold-Rolled Steel | 15.6 | 800 | 850 |
| SKC-R | SKC-R1.5-3.2 | 1mm Cold-Rolled Steel | 17.8 | 800 | 800 |
| SKC-R | SKC-R1.5-4.0 | 1mm Cold-Rolled Steel | 25.6 | 900 | 750 |
| SKC-R | SKC-R2.0-2.5 | 1mm Cold-Rolled Steel | 15.6 | 800 | 850 |
| SKC-R | SKC-R2.0-3.2 | 1mm Cold-Rolled Steel | 17.8 | 800 | 800 |
| SKC-R | SKC-R2.0-4.0 | 1mm Cold-Rolled Steel | 25.6 | 900 | 750 |
| SKC-R | SKC-R2.5-2.5 | 1mm Cold-Rolled Steel | 15.6 | 800 | 850 |
| SKC-R | SKC-R2.5-3.2 | 1mm Cold-Rolled Steel | 17.8 | 800 | 800 |
| SKC-R | SKC-R2.5-4.0 | 1mm Cold-Rolled Steel | 25.6 | 900 | 750 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| SKC-R | SKC-R1.5-2.5 | .040" Cold-Rolled Steel | 3507 | 180 | 191 |
| SKC-R | SKC-R1.5-3.2 | .040" Cold-Rolled Steel | 4002 | 180 | 180 |
| SKC-R | SKC-R1.5-4.0 | .040" Cold-Rolled Steel | 5755 | 202 | 169 |
| SKC-R | SKC-R2.0-2.5 | .040" Cold-Rolled Steel | 3507 | 180 | 191 |
| SKC-R | SKC-R2.0-3.2 | .040" Cold-Rolled Steel | 4002 | 180 | 180 |
| SKC-R | SKC-R2.0-4.0 | .040" Cold-Rolled Steel | 5755 | 202 | 169 |
| SKC-R | SKC-R2.5-2.5 | .040" Cold-Rolled Steel | 3507 | 180 | 191 |
| SKC-R | SKC-R2.5-3.2 | .040" Cold-Rolled Steel | 4002 | 180 | 180 |
| SKC-R | SKC-R2.5-4.0 | .040" Cold-Rolled Steel | 5755 | 202 | 169 |
| Type | Body Size – Sheet Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| SKCF-F | SKCF-F1.5 | 1mm Cold-Rolled Steel | 11.2 | 711 | 822 |
| SKSF-F | SKSF-F1.5 | 1mm Cold-Rolled Steel | 11.2 | 711 | 822 |
| SK4F-F | SK4F-F1.5 | 1mm 300 Series Stainless Steel | 33.8 | 1000 | 900 |
| Type | Body Size – Sheet Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| SKCF-F | SKCF-F1.5 | .040 ” Cold-Rolled Steel | 2518 | 160 | 185 |
| SKSF-F | SKSF-F1.5 | .040” Cold-Rolled Steel | 2518 | 160 | 185 |
| SK4F-F | SK4F-F1.5 | .040” 300 Series Stainless Steel | 7600 | 225 | 202 |
| Type | Body Size – Sheet Code – Length | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| SKCF | SKCF-61.5-4 | 1.5mm Cold-Rolled Steel | 14.7 | 2000 | 1000 |
| SKCF | SKCF-61.5-6 | 1.5mm Cold-Rolled Steel | 14.7 | 2000 | 696 |
| SKCF | SKCF-61.5-8 | 1.5mm Cold-Rolled Steel | 14.7 | 2000 | 540 |
| SKCF | SKCF-61.5-10 | 1.5mm Cold-Rolled Steel | 14.7 | 2000 | 440 |
| SKSF | SKSF-61.5-4 | 1.5mm Cold-Rolled Steel | 14.7 | 2000 | 1000 |
| SKSF | SKSF-61.5-6 | 1.5mm Cold-Rolled Steel | 14.7 | 2000 | 696 |
| SKSF | SKSF-61.5-8 | 1.5mm Cold-Rolled Steel | 14.7 | 2000 | 540 |
| SKSF | SKSF-61.5-10 | 1.5mm Cold-Rolled Steel | 14.7 | 2000 | 440 |
| SK4F | SK4F-61.5-4 | 1.5mm 300 Series Stainless Steel | 40.1 | 2500 | 1300 |
| SK4F | SK4F-61.5-6 | 1.5mm 300 Series Stainless Steel | 40.1 | 2500 | 860 |
| SK4F | SK4F-61.5-8 | 1.5mm 300 Series Stainless Steel | 40.1 | 2500 | 710 |
| SK4F | SK4F-61.5-10 | 1.5mm 300 Series Stainless Steel | 40.1 | 2500 | 610 |
| Type | Body Size – Sheet Code – Length | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| SKCF | SKCF-6060-4 | .060" Cold-Rolled Steel | 3300 | 450 | 260 |
| SKCF | SKCF-6060-6 | .060" Cold-Rolled Steel | 3300 | 450 | 197 |
| SKCF | SKCF-6060-8 | .060" Cold-Rolled Steel | 3300 | 450 | 153 |
| SKCF | SKCF-6060-10 | .060" Cold-Rolled Steel | 3300 | 450 | 126 |
| SKCF | SKCF-6060-12 | .060" Cold-Rolled Steel | 3300 | 450 | 106 |
| SKSF | SKSF-6060-4 | .060" Cold-Rolled Steel | 3300 | 450 | 260 |
| SKSF | SKSF-6060-6 | .060" Cold-Rolled Steel | 3300 | 450 | 197 |
| SKSF | SKSF-6060-8 | .060" Cold-Rolled Steel | 3300 | 450 | 153 |
| SKSF | SKSF-6060-10 | .060" Cold-Rolled Steel | 3300 | 450 | 126 |
| SKSF | SKSF-6060-12 | .060" Cold-Rolled Steel | 3300 | 450 | 106 |
| SK4F | SK4F-6060-4 | .060" 300 Series Stainless Steel | 9000 | 560 | 300 |
| SK4F | SK4F-6060-6 | .060" 300 Series Stainless Steel | 9000 | 560 | 220 |
| SK4F | SK4F-6060-8 | .060" 300 Series Stainless Steel | 9000 | 560 | 180 |
| SK4F | SK4F-6060-10 | .060" 300 Series Stainless Steel | 9000 | 560 | 160 |
| SK4F | SK4F-6060-12 | .060" 300 Series Stainless Steel | 9000 | 560 | 140 |
| Type | Type – Sheet Code – Neck Dia. Code – Finish | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| SKS-R | SKS-R1.5-2.5-ZI | 1mm Cold-Rolled Steel | 14.2 | 711 | 850 |
| SKS-R | SKS-R1.5-3.2-ZI | 1mm Cold-Rolled Steel | 17.8 | 800 | 950 |
| SKS-R | SKS-R1.5-4.0-ZI | 1mm Cold-Rolled Steel | 22.3 | 800 | 1150 |
| SKS-R | SKS-R2.0-2.5-ZI | 1mm Cold-Rolled Steel | 14.2 | 711 | 750 |
| SKS-R | SKS-R2.0-3.2-ZI | 1mm Cold-Rolled Steel | 17.8 | 800 | 850 |
| SKS-R | SKS-R2.0-4.0-ZI | 1mm Cold-Rolled Steel | 22.3 | 800 | 1000 |
| SKS-R | SKS-R2.5-2.5-ZI | 1mm Cold-Rolled Steel | 14.2 | 711 | 550 |
| SKS-R | SKS-R2.5-3.2-ZI | 1mm Cold-Rolled Steel | 17.8 | 800 | 610 |
| SKS-R | SKS-R2.5-4.0-ZI | 1mm Cold-Rolled Steel | 22.3 | 800 | 810 |
| Type | Type – Sheet Code – Neck Dia. Code – Finish | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| SKS-R | SKS-R1.5-2.5-ZI | .040" Cold-Rolled Steel | 3200 | 160 | 191 |
| SKS-R | SKS-R1.5-3.2-ZI | .040" Cold-Rolled Steel | 4000 | 180 | 213 |
| SKS-R | SKS-R1.5-4.0-ZI | .040" Cold-Rolled Steel | 5000 | 180 | 258 |
| SKS-R | SKS-R2.0-2.5-ZI | .040" Cold-Rolled Steel | 3200 | 160 | 169 |
| SKS-R | SKS-R2.0-3.2-ZI | .040" Cold-Rolled Steel | 4000 | 180 | 191 |
| SKS-R | SKS-R2.0-4.0-ZI | .040" Cold-Rolled Steel | 5000 | 180 | 225 |
| SKS-R | SKS-R2.5-2.5-ZI | .040" Cold-Rolled Steel | 3200 | 160 | 124 |
| SKS-R | SKS-R2.5-3.2-ZI | .040" Cold-Rolled Steel | 4000 | 180 | 137 |
| SKS-R | SKS-R2.5-4.0-ZI | .040" Cold-Rolled Steel | 5000 | 180 | 182 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| TSK4-R | TSK4-R1.5-2.5 | 0.8mm Cold-Rolled Steel | 25.4 | 750 | 300 |
| TSK4-R | TSK4-R2.0-2.5 | 0.8mm Cold-Rolled Steel | 25.4 | 750 | 280 |
| TSK4-R | TSK4-R2.5-2.5 | .0.8mm Cold-Rolled Steel | 25.4 | 750 | 250 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| TSK4-R | TSK4-R1.5-2.5 | .032" Cold-Rolled Steel | 5710 | 169 | 68 |
| TSK4-R | TSK4-R2.0-2.5 | .032" Cold-Rolled Steel | 5710 | 169 | 63 |
| TSK4-R | TSK4-R2.5-2.5 | .032" Cold-Rolled Steel | 5710 | 169 | 56 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| TSKC-R | TSKC-R1.5-2.5 | 0.8mm Cold-Rolled Steel | 11.2 | 550 | 200 |
| TSKC-R | TSKC-R2.0-2.5 | 0.8mm Cold-Rolled Steel | 11.2 | 550 | 180 |
| TSKC-R | TSKC-R2.5-2.5 | 0.8mm Cold-Rolled Steel | 11.2 | 500 | 150 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| TSKC-R | TSKC-R1.5-2.5 | .032" Cold-Rolled Steel | 2518 | 124 | 45 |
| TSKC-R | TSKC-R2.0-2.5 | .032" Cold-Rolled Steel | 2518 | 124 | 41 |
| TSKC-R | TSKC-R2.5-2.5 | .032" Cold-Rolled Steel | 2518 | 124 | 34 |
| Type | Body Size – Sheet Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| TSKCF-F | TSKCF-F1.5 | .08mm Cold-Rolled Steel | 9.8 | 500 | 180 |
| TSKSF-F | TSKSF-F1.5 | .08mm Cold-Rolled Steel | 9.8 | 500 | 180 |
| TSK4F-F | TSK4F-F1.5 | .08mm 300 Series Stainless Steel | 30.2 | 750 | 250 |
| Type | Body Size – Sheet Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| TSKCF-F | TSKCF-F1.5 | .032" Cold-Rolled Steel | 2203 | 112 | 41 |
| TSKSF-F | TSKSF-F1.5 | .032" Cold-Rolled Steel | 2203 | 112 | 41 |
| TSK4F-F | TSK4F-F1.5 | .032" 300 Series Stainless Steel | 6789 | 169 | 56 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (kN) | Pushout (N) | Side-Load Force Max. (N) |
|---|---|---|---|---|---|
| TSKS-R | TSKS-R1.5-2.5 | 0.8mm Cold-Rolled Steel | 11.2 | 550 | 200 |
| TSKS-R | TSKS-R2.0-2.5 | 0.8mm Cold-Rolled Steel | 11.2 | 550 | 180 |
| TSKS-R | TSKS-R2.5-2.5 | 0.8mm Cold-Rolled Steel | 11.2 | 500 | 150 |
| Type | Body Size – Sheet Code – Neck Dia. Code | Test Sheet Material | Installation (lbs.) | Pushout (lbs.) | Side-Load Force Max. (lbs.) |
|---|---|---|---|---|---|
| TSKS-R | TSKS-R1.5-2.5 | .032" Cold-Rolled Steel | 2518 | 124 | 45 |
| TSKS-R | TSKS-R2.0-2.5 | .032" Cold-Rolled Steel | 2518 | 124 | 41 |
| TSKS-R | TSKS-R2.5-2.5 | .032" Cold-Rolled Steel | 2518 | 124 | 34 |
Inventory
| Distributor | Quantity | Contact | Phone | Address | Locations |
|---|
