SSS-156-32ZI

SNAP-TOP® Standoffs – Types SSA, SSC, SSS

SSS-156-32ZI

SNAP-TOP® Standoffs – Types SSA, SSC, SSS

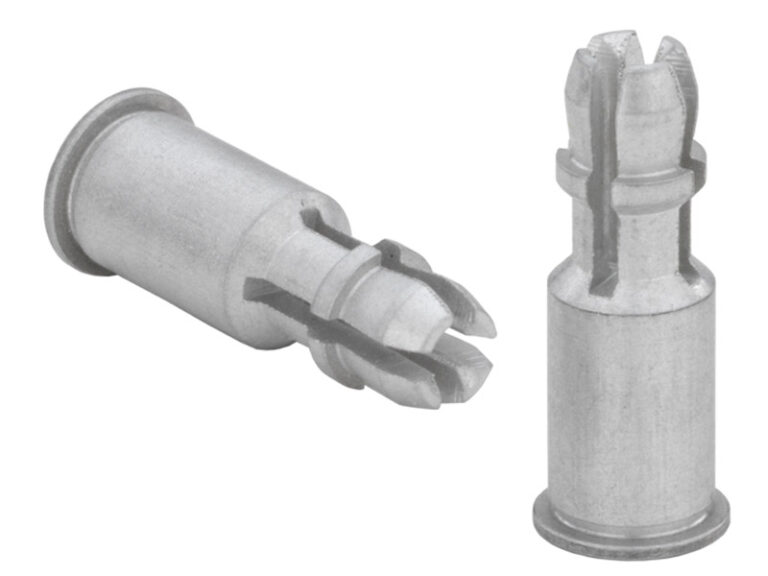

PEM SNAP-TOP® Standoffs (Types SSA, SSS, SSC) are designed for permanent installation into metal panels or PC boards.

These all-metal standoffs use a spring action to hold PC boards and subassemblies securely, while allowing for quick removal. Screws and other threaded hardware are eliminated. This means less parts to handle during assembly and less risk of damaging delicate circuitry because of loose parts falling into your equipment.

These standoffs are permanently installed in the panel by squeezing them into a properly sized hole using any standard press.

Specifications

Panel 1 Material
Metal
Panel 2 (Top) Material
PC Board or Metal
Standard Material
Carbon Steel
Standard Finish
colorless, SC1 (5µm), Type III, Zinc plated per ASTM B633
Anvil Hole Diameter
.216 – .219
Panel 1 (Bottom) Hardness Max.
HRB 60 / HB 107
Panel 2 (Top) Hardness Max.
No limit
Product Category
SNAP-TOP® Standoffs – Types SSA, SSC, SSS
CAD Supplier
PennEngineering® (PEM®)
CADPartID
103746
Application Type
Automotive Electronics, Datacom, Telecom
Base Panel Material
Aluminum, Steel
Brand
PEM
Fastener Characteristics
Unthreaded
Industry
Automotive Electronics, Datacom & Telecom, Industrial & Commercial, Medical
Installation Equipment/Method
C-Frame Automatic Feed, C-Frame Manual Feed
L Len Pm 005in Or 13mm
1.00in, 1in
PEM Product Family
SSA
Product Type
Standoffs
Technology Type
Self-Clinching
Unit (Metric/Unified)
Unified

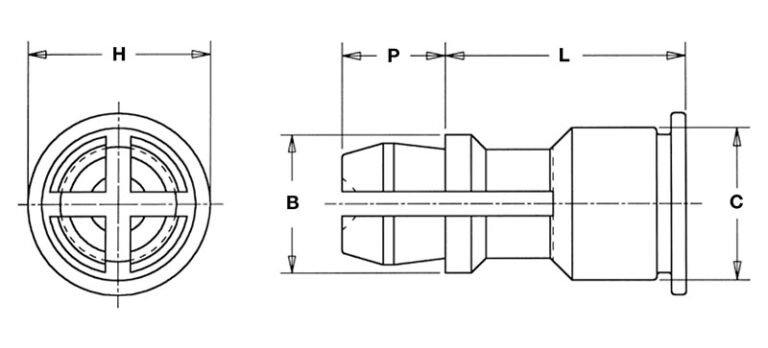

B ± .005_in
.188in
H ± .005_in
.250in
C Max._in
.212in
P ± .005_in
.141in
Panel 1 (Bottom) Edge Distance C1 Min._in
.260in
Panel 1 (Bottom) Location Tolerance Max._in
±.005in
Panel 1 (Bottom) Mounting Hole B + .003 – .000_in
.213in
Panel 1 (Bottom) Thickness Min._in
.040in
Panel 2 (Top) Edge Distance C2 Min._in
.100in
Panel 2 (Top) Mounting Hole A +.003 -.000_in
.156in
Panel 2 (Top) Thickness Range_in
.040 to .070in
