VM20BSO-3.5M3-14ZI

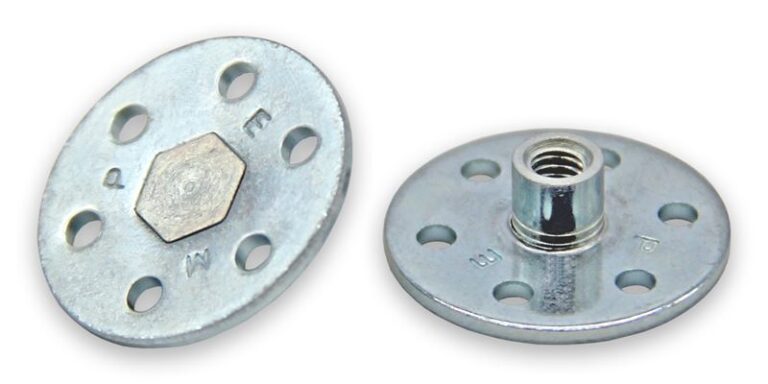

Steel Standoff with Base Plate
VM20BSO-3.5M3-14ZI
Steel Standoff with Base Plate
The PEM® VariMount® fastening system eliminates issues associated with welding. The assembly is comprised of a standard PEM® nut, stud or standoff mounted permanently into a base plate. The assembly can then be fastened or bonded to assorted panel types in a variety of ways.
VariMount® assemblies are available with either steel or stainless steel base plates depending on the fastener that is selected. The VariMount® base plate’s radial holes provide various mounting options. Base plates can also be purchased separately.
Specifications
- Thread Code
- M3.5
- Thread Size
- M3.5 x 0.6
- Base Plate Material
- Steel
- Fastener Material
- Carbon Steel, Steel
- Material Finish
- Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
- Product Category
- Steel Standoff with Base Plate
- CAD Supplier
- PennEngineering® (PEM®)
- CADPartID
- 112045
- Thread Type
- VM
- Application Type
- Industrial
- Base Panel Material
- Plastic
- Brand
- PEM
- Fastener Characteristics
- Threaded Internal
- Industry
- Industrial & Commercial
- Installation Equipment/Method
- Other
- Product Type
- Standoffs
- Technology Type
- Bonding Fasteners
- Unit (Metric/Unified)
- Metric
- BPD ± 0.42_mm
- 20mm
- BPT ± 0.1_mm
- 1.2mm
- C -0.13_mm
- 5.39mm
- L +0.05 -0.13_mm
- 14mm
